Quick Details
-
Production Speed(Cycles/min):
-
15-45 times/min
-
Air Pressure(MPa):
-
0.7 MPa
-
Sheet Thickness(mm):
-
0.01 - 0.3 mm
-
Heating Power (kW):
-
5 kW
-
Air Comsumption(L/min):
-
3000 L/min
-
Water Comsumption(L/min):
-
12 L/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZOMAGTC
-
Voltage:
-
220V /380V
-
Dimension(L*W*H):
-
2500*1000*1600mm
-
Weight (T):
-
1.2 T
-
Power(KW):
-
15
-
Model:
-
ZM-420W
-
Max.forming size:
-
420*160mm
-
Max.forming depth:
-
45mm
-
Stroke adjustable range:
-
160mm
-
Speed:
-
15-45 times/min
-
Air pressure:
-
0.4-0.7mpa
-
Air consumption:
-
more than 0.3 cubic meter/meter
-
Power supply:
-
220V/380V 21KW
-
Weight:
-
1200KG
-
Dimension:
-
2500*1000*1600mm
Quick Details
-
Max.Forming Height(mm):
-
160 mm
-
Forming Width (mm):
-
420 mm
-
Forming Length (mm):
-
160 mm
-
Production Speed(Cycles/min):
-
15-45 times/min
-
Air Pressure(MPa):
-
0.7 MPa
-
Sheet Thickness(mm):
-
0.01 - 0.3 mm
-
Heating Power (kW):
-
5 kW
-
Air Comsumption(L/min):
-
3000 L/min
-
Water Comsumption(L/min):
-
12 L/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZOMAGTC
-
Voltage:
-
220V /380V
-
Dimension(L*W*H):
-
2500*1000*1600mm
-
Weight (T):
-
1.2 T
-
Power(KW):
-
15
-
Model:
-
ZM-420W
-
Max.forming size:
-
420*160mm
-
Max.forming depth:
-
45mm
-
Stroke adjustable range:
-
160mm
-
Speed:
-
15-45 times/min
-
Air pressure:
-
0.4-0.7mpa
-
Air consumption:
-
more than 0.3 cubic meter/meter
-
Power supply:
-
220V/380V 21KW
-
Weight:
-
1200KG
-
Dimension:
-
2500*1000*1600mm

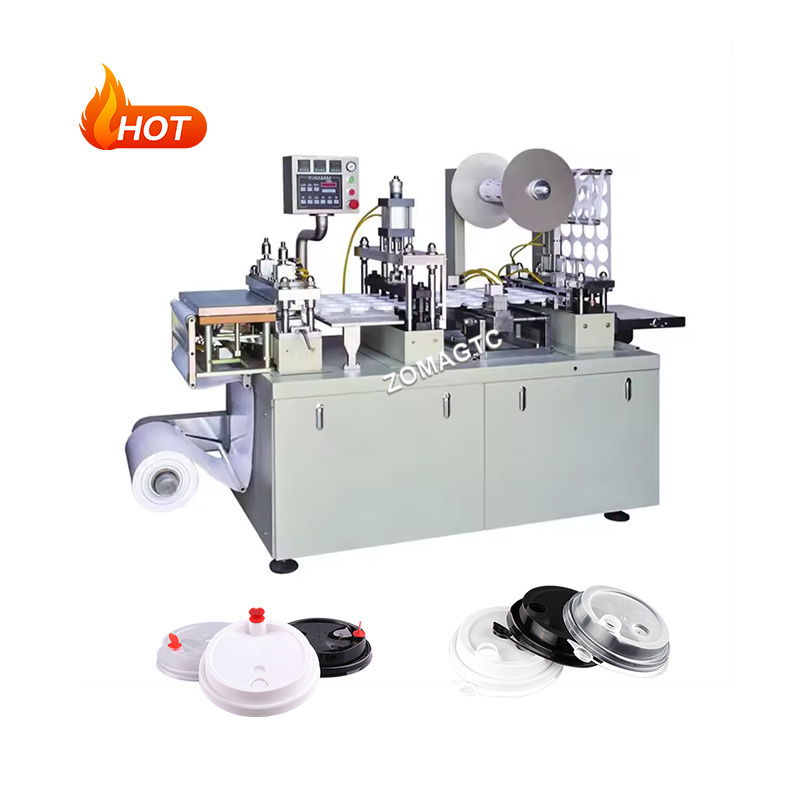

Automatic Pet Plastic Cup Cover Lids Forming Molding Thermoforming Machines Disposable Coffee PP Plastic Cup Lid Making Machine
Whats App/Wechat:+86 135 2307 5832 Email:sherrycui@ superelec.cn
ZM-420W automatic plastic lid forming machine can make kinds of plastic lids in different plastic material and shape. This machine is automatic plastic lid forming machine,finish thermoforming,hole punching,die cutting on one machine.
Widely use in PET/PVE/HIPS/PLA plastic lids.
Factory Price PS PET PVC Plastic Cup Lid Lids Thermoforming Making Machine
| Model | ZM-420W |
| Max.forming size | 420*160mm |
| Max.forming depth | 45mm |
| Stroke adjustable range | 160mm |
| Speed | 15-45 times/min |
| Air pressure | 0.4-0.7mpa |
| Air consumption | more than 0.3 cubic meter/meter |
| Power supply | 220V/380V 21KW |
| Weight | 1200kg |
| Dimension | 2500*1000*1600mm |
Factory Price PS PET PVC Plastic Cup Lid Lids Thermoforming Making Machine
1.The Plastic Cup Lid Making Machine can freely change the section size,
suitable for various specifications, adjustable stroke, simple mould replacement.
2.The Plastic Cup Lid Making Machine adopts PLC interface, stepless variable
speed, PC circuit control panel.
3.The Plastic Cup Lid Making Machine receives GMP/QS double standard
dust-free production, improve safety of products, solve the cross contamination.
4.Plastic Cup Lid Making Machine has the characters of compact structure,
smooth and simple operation.
5.The operating region and the transmission mechanism is completely isolated
to prevent pollution, easy cleaning.
6. Applicable projects: the material of HIPS, PVC, PET, PS.
| Packing detials | Wooden case |
| Delivery time | within 20 working days |
| Shipping Port | Main China port |
2.One year warranty for you
3.Perfect and careful after-sale service
4.Fast delivery for you
5.24 hours on-line service for you
