Quick Details
-
Filling Accuracy:
-
<±1%
-
Voltage:
-
220/110V 50/60HZ
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Youlian Machine
-
Dimension(L*W*H):
-
2000*900*1750mm
-
Weight:
-
150 KG
-
Product name:
-
2 Head Nozzles Drip-proof Liquid Filling Machine
-
Material:
-
Stainless Steel 304/316
-
Filling speed:
-
0-20 Bottle/min
-
Air pressure:
-
0.6-0.8MPa
-
Filling heads:
-
2 head or can be Customized
-
Suitable for:
-
Liquid, Viscous body, Honey, Charge
-
Filling range:
-
20-100ml, 30-300ml, 50-500ml, 100-1000ml, 1000-5000ml
-
Control:
-
PLC+ Touch Screen
-
Main Function:
-
Filling Packing
Quick Details
-
Machinery Capacity:
-
500BPH
-
Packaging Material:
-
Glass, Plastic
-
Filling Material:
-
Beer, Milk, Water, Oil, Juice
-
Filling Accuracy:
-
<±1%
-
Voltage:
-
220/110V 50/60HZ
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Youlian Machine
-
Dimension(L*W*H):
-
2000*900*1750mm
-
Weight:
-
150 KG
-
Product name:
-
2 Head Nozzles Drip-proof Liquid Filling Machine
-
Material:
-
Stainless Steel 304/316
-
Filling speed:
-
0-20 Bottle/min
-
Air pressure:
-
0.6-0.8MPa
-
Filling heads:
-
2 head or can be Customized
-
Suitable for:
-
Liquid, Viscous body, Honey, Charge
-
Filling range:
-
20-100ml, 30-300ml, 50-500ml, 100-1000ml, 1000-5000ml
-
Control:
-
PLC+ Touch Screen
-
Main Function:
-
Filling Packing
Products Description

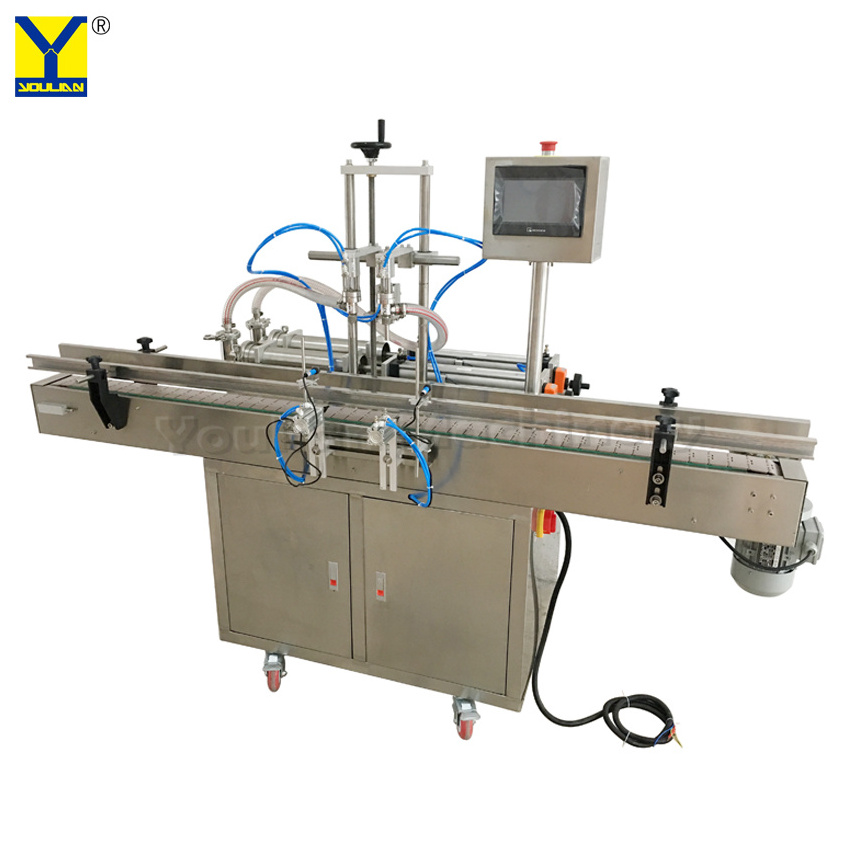

Automatic Pneumatic Double Heads Liquid Bottle Filling Machine
The automatic linear piston filler machine is an extremely flexible filler capable of filling accurately and rapidly any viscous liquids. Product delivery from your bulk tank to the pistons can be configured with a buffer tank utilizing a level-sensing float, a manifold with direct draw, or re-circulation methods. The YouLian Automatic Linear Piston Filler is manufactured with a 304 stainless steel frame and is capable of supporting 1 to 12 fill heads. PLC controls, touch screen HMI, food grade contact parts, stainless steel and anodized aluminum construction and many more features come standard. Automatic Piston Fillers are designed to add efficiency to any production line used in the cosmetic, food service, specialty personal care industries. Additional options are available for sanitary, hazardous, flammable and corrosive environments.
Product Parameters
Model
|
YT2T-2G
|
YT4T-4G
|
YT6T-6G
|
YT8T-8G
|
YT10T-10G
|
YT12T-12G
|
|||||
Power supply
|
220/110V 50/60HZ
|
|
|
|
|
|
|||||
Air pressure
|
0.6-0.8 mpa
|
|
|
|
|
|
|||||
Output (bottles/min)
|
0-20
|
0-30
|
0-40
|
0-50
|
0-60
|
0-80
|
|||||
Filling range (ml)
|
20-100, 30-300, 50-500, 100-1000, 500-2100, 700-3000, 1000-5000
|
|
|
|
|
|
|||||
Power (KW)
|
1
|
1
|
1.5
|
1.5
|
2
|
2
|
|||||
Filling head
|
2
|
4
|
6
|
8
|
10
|
12
|
|||||
Dimension (mm)
|
2000*900*1750
|
2000*1000*1750
|
3000*1000*1750
|
3300*1100*1750
|
4000*1100*1750
|
4500*1100*1750
|
|||||
Weight (kg)
|
150
|
350
|
450
|
550
|
650
|
750
|
Product Feature
Application
Automatic Piston Type Liquid Filling machine
> For Cosmetics
Including lotions, perfumes, bath oils, hand washes, shampoos, conditioners, and liquid soaps. In addition shower gels, nail polishes, mascara.
> For Household and Industrial products
Including hand sanitizer, detergents, disinfectants, bleaches, motor oils. Also printing inks, spirits, paints, cleaning agents, solvents, weed killers, and agricultural. In addition, veterinary and ethical supplies.
> For food and related products
Including dairy like products, processed cheese, yogurt, milk, and non-dairy. Also products like pate, jams, stews, sauces, mayonnaise and salad dressings. Furthermore, peanut butter, honeys, chutneys, pickles, cooking oils, fruit juices, and cordials. In addition, toppings and flavourings.
Wenzhou Youlian Machine Manufacture Co., Ltd.
is famous for Youlian brand packing machine of food, daily, cosmetic and industry. Our company has over 100 trained staffs strictly by our experienced engineers and technicians with high level technical force with high level technical capability. We also own complete sets of equipment, seamlessly management and efficient product lines. Peck products are available for a variety of needs and special orders. With our advanced technology and reliable and stable quality, our products are in international level. Our products are selling well in Mainland China, as well as many countries and regions in Southeast Asia, the Middle East and Europe, because of high quality, low price and satisfactory customer services.
Q1: Are you a factory or trading company?
A1: We are a factory specialized in daily cosmetic, foods, beverage, Filling Capping and Labeling Machine and whole production line. Such as, Liquid Filling Machine Paste Filling Machine , automatic capping machine ,semi-automatic capping machine,automatic labeling Machine and semi-automatic machine ,coding machine and other packaging mahcine.filling and other packing machines.
Q2: Where is your factory location? How can I visit there?
A2: Our factory is located in Wenzhou, China. You could visit us by high speed train or by plane). It’s only 15 minutes from our factory to Wenzhou South Train station .It’s only 30 minutes from our factory to Wenzhou Yonqiang International Airport. then we could arrange a car to pick you up there.
Q3: How does your factory do regarding quality control?
A3: Quality is priority. People from Youlian always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment Our factory has gained CE authentication
Q4: What’s the guarantee if we purchase from you?
A4: All the equipment ordered from us will provide one year guarantee from the delivery date .If there is any main parts be broken within the warranty and isn’t caused by improperly operation then we would offer the new parts for free and we do prepare for one set wearing part come with the machine.
Q5: How about the after service?
A5: There’s no problem we could send our engineer to install or fix the machine locally in due course but customer need to pay the round air tickets cost and arrange the hotel accommodation for our engineer and engineer daily salary USD150/day.Ours service Team will reply you in 12hours by email, and in time reply by whatsapp or wechat as soon as possible when you have any questions.
A1: We are a factory specialized in daily cosmetic, foods, beverage, Filling Capping and Labeling Machine and whole production line. Such as, Liquid Filling Machine Paste Filling Machine , automatic capping machine ,semi-automatic capping machine,automatic labeling Machine and semi-automatic machine ,coding machine and other packaging mahcine.filling and other packing machines.
Q2: Where is your factory location? How can I visit there?
A2: Our factory is located in Wenzhou, China. You could visit us by high speed train or by plane). It’s only 15 minutes from our factory to Wenzhou South Train station .It’s only 30 minutes from our factory to Wenzhou Yonqiang International Airport. then we could arrange a car to pick you up there.
Q3: How does your factory do regarding quality control?
A3: Quality is priority. People from Youlian always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment Our factory has gained CE authentication
Q4: What’s the guarantee if we purchase from you?
A4: All the equipment ordered from us will provide one year guarantee from the delivery date .If there is any main parts be broken within the warranty and isn’t caused by improperly operation then we would offer the new parts for free and we do prepare for one set wearing part come with the machine.
Q5: How about the after service?
A5: There’s no problem we could send our engineer to install or fix the machine locally in due course but customer need to pay the round air tickets cost and arrange the hotel accommodation for our engineer and engineer daily salary USD150/day.Ours service Team will reply you in 12hours by email, and in time reply by whatsapp or wechat as soon as possible when you have any questions.
