Quick Details
-
Vertical Travel(mm):
-
350mm, 700mm, 1300mm, 1500mm
-
Horizonal Travel(mm):
-
700mm, 1300mm, 1500mm, 2100mm
-
Place of Origin:
-
China
-
Brand Name:
-
NEWKer
-
Weight:
-
68 kg
-
Dimension(L*W*H):
-
optional
-
Power:
-
220v
-
Speed:
-
1.5m/s
-
Interface:
-
USB+RS232 Communction Port
-
Function:
-
PLC+CNC+Teach
-
Port:
-
48input 32output
-
CPU:
-
ARM(32bits)+DSP+FPGA
-
User Store Room:
-
256Mb (Expand to 2G)
-
Display:
-
8 Inch Real Color LCD
-
Program:
-
Teach function, G code
-
Application:
-
machine tool loading and unloading ,teaching, playing chess
-
Certification:
-
CE
-
Weight (KG):
-
68 kg
Quick Details
-
Warranty:
-
2 years
-
Applicable Industries:
-
Industrial robot, Education
-
Marketing Type:
-
NEW2021
-
Vertical Travel(mm):
-
350mm, 700mm, 1300mm, 1500mm
-
Horizonal Travel(mm):
-
700mm, 1300mm, 1500mm, 2100mm
-
Place of Origin:
-
China
-
Brand Name:
-
NEWKer
-
Weight:
-
68 kg
-
Dimension(L*W*H):
-
optional
-
Power:
-
220v
-
Speed:
-
1.5m/s
-
Interface:
-
USB+RS232 Communction Port
-
Function:
-
PLC+CNC+Teach
-
Port:
-
48input 32output
-
CPU:
-
ARM(32bits)+DSP+FPGA
-
User Store Room:
-
256Mb (Expand to 2G)
-
Display:
-
8 Inch Real Color LCD
-
Program:
-
Teach function, G code
-
Application:
-
machine tool loading and unloading ,teaching, playing chess
-
Certification:
-
CE
-
Weight (KG):
-
68 kg
Poster
Products Description
A set of robot arm includes robot arm body, controller, motor and drive, and we can also provide you with application fixtures
according to your needs, such as teaching demonstration, making coffee, writing and painting, etc
Customer Application Cases
Palletizing（Visual recognition）
Grinding
Grinding application

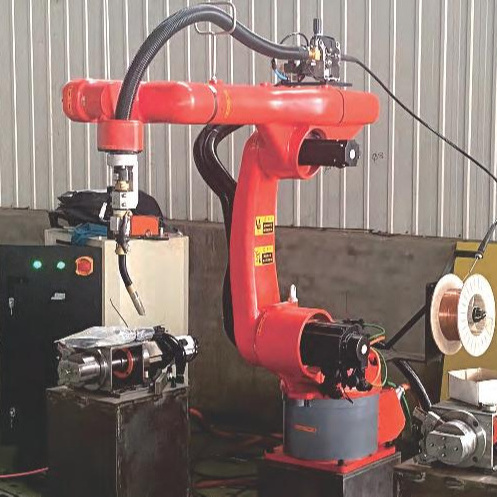

Welding - double station
Detection sorting
Controller Connection
Parameter details
|
No. of controller shaft
|
4-8 axiscontrol panelof industrial automatic motoman arc welding robot(j1,j2,j3,j4,j5,j6)
|
Specify the welding current:
|
AA/S
|
|
Type:
|
Bus absolute type and servo type
|
Specify the welding voltage:
|
VV/SS
|
|
The most programminng:
|
±99999.999
|
Start welding:
|
AS*
|
|
Encoder of motor:
|
17bits and 23bits
|
End welding:
|
AE*
|
|
I/O points:
|
48*32 I/O
|
Start swing weld:
|
WS*
|
|
0-10V analog:
|
2 ways 0-10V analog
|
End swing weld:
|
WE
|
|
Operation:
|
Teach,Repaly,Remote
|
Movement of joint:
|
MJ or MOVJ or GO
|
|
Wifi function:
|
Connect with phone to send program
|
Movement od straight line:
|
ML or MOVL or G1
|
|
RS 232 function:
|
RS232 to connect with PC
|
Movement of arc:
|
MC or MOVC or G6
|
|
USB function:
|
Update and send program
|
Specify the speed:
|
V=to specify the feeding speed
|
|
Program mode:
|
Teach,G code,Technics parameter
|
Specify the ratio:
|
VJ= to specify the feeding ratio
|
|
Motion function:
|
Point to point,straight line,arc
|
The speed of changing track:(smoothness
|
PL=
|
|
Instructions:
|
Movement,Logic,Calculation,Technics,G code in CNC
|
Start parallel translation:
|
SN*
|
|
Coordinate system:
|
Joint,User,Tool,World
|
End parallel translation:
|
SF
|
|
PLC function:
|
Edit the ladder,8000 steps
|
Read the current position:
|
PK***
|
|
Alarm information:
|
Emergency,drive,maintenance,error of starting arc and coordinate
|
Calculate the value of two position:
|
PX***=PT***-PT***
|
|
Limit function:
|
Soft limit
|
Start searching:
|
ST*P*
|
|
Algorithm of controller:
|
1)Vertical multi joint serial tobot;
2)Vertical articulated parallelogram robot; 3)Vertical multi joint L shape wrist robot;
4)Pole coordinate robot;
5)SCARA robot;
6)Delta robot;
7)Special robot;
|
End searching
|
SE
|
|
Password protection:
|
Multilevel random password protection
|
Straight earching instruction:
|
SX+/-,SY+/-,SZ+/-,
|
|
User macro program:
|
Have
|
The parallel value:
|
PX***=PX***+PX*** and PX***=PX***-PX***
|
|
Electrical gear function:
|
Have
|
G code:
|
The same as the standard cnc controller
|
|
Application:
|
Welding,palletizing,Painting,Tending,Laser cutting and other special robor arm
|
Marco program instructions:
|
If..THEN;WHILE;GOTO;WAT
|
Function advantage
Product features
Never Crush the machine, the system with memorial function (Abosolute feature)
Needn't install hard limit in this 4-8 joint axis welding robot controller all kit and back to the zero point (Abosolute feature)
Use phone connect with controller by Wifi function, easier and more convenient to send program (NewKer feature)
G code program, only NewKer-CNC robot controller could work with G code program like cnc controller (NewKer feature)
Teach function with technics parameter, easier to operate (NewKer feature)
PLC and macro program are all opened (NewKer feature)
Only one cable come out from controller, easier to connect (Bus type feature)
Multilevel random password protection, more safety (NewKer feature)
Never Crush the machine, the system with memorial function (Abosolute feature)
Needn't install hard limit in this 4-8 joint axis welding robot controller all kit and back to the zero point (Abosolute feature)
Use phone connect with controller by Wifi function, easier and more convenient to send program (NewKer feature)
G code program, only NewKer-CNC robot controller could work with G code program like cnc controller (NewKer feature)
Teach function with technics parameter, easier to operate (NewKer feature)
PLC and macro program are all opened (NewKer feature)
Only one cable come out from controller, easier to connect (Bus type feature)
Multilevel random password protection, more safety (NewKer feature)
