Quick Details
-
Model Number:
-
M12
-
Max. Current:
-
5(3)A
-
Operating Temperature:
-
-25...+125℃
-
Protection Level:
-
IP67
-
Certification:
-
ENEC,CQC
-
Electrical Life:
-
1,000,000 Cycles
-
Mechanical Life:
-
1,000,000Cycles
-
Application:
-
home applicance,industry control, car electric, power tools
-
Rating:
-
5(3)A 250VAC
-
Function:
-
SPST-NC, SPST-NO,SPDT
-
Operating force:
-
80gf,160gf,240gf,350gf
-
Lever:
-
stainless steel
-
Terminal:
-
Cu/CuZn
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
China
-
Brand Name:
-
BAOKEZHEN
-
Model Number:
-
M12
-
Max. Current:
-
5(3)A
-
Operating Temperature:
-
-25...+125℃
-
Protection Level:
-
IP67
-
Certification:
-
ENEC,CQC
-
Electrical Life:
-
1,000,000 Cycles
-
Mechanical Life:
-
1,000,000Cycles
-
Application:
-
home applicance,industry control, car electric, power tools
-
Rating:
-
5(3)A 250VAC
-
Function:
-
SPST-NC, SPST-NO,SPDT
-
Operating force:
-
80gf,160gf,240gf,350gf
-
Lever:
-
stainless steel
-
Terminal:
-
Cu/CuZn

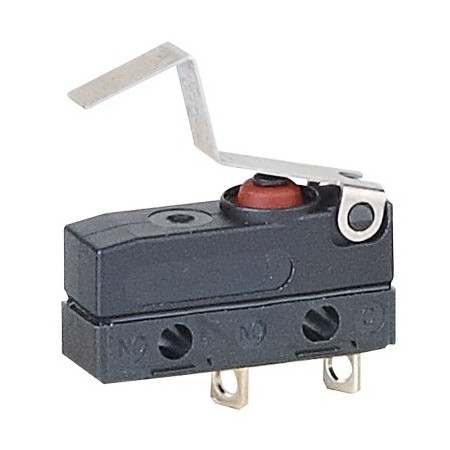

IP67 waterproof Micro Switch
with soldering wires
|
Product Name
|
IP67 waterproof Micro Switch with soldering wires
|
|
Electrical Rating
|
0.1A 30VDC
0.1A 125/250VAC
3(3)A 125/250VAC
5(3)A 125/250VAC
10(1.5)A 125/250VAC
|
|
Contact Resistance
|
≦20mΩ
|
|
Insulation Resistance
|
>100mΩ
|
|
Electric life
|
1,000,000Cycles
|
|
Mechanical life
|
1,000,000Cycles
|
|
Brand
|
Baokezhen
|
|
Function
|
SPST-NC,SPST-NO,SPDT
|
|
Temperature Range
|
-25℃....+125 ℃
|
|
Base and button material
|
PBT/PA/PET
|
|
Wires
|
According to customer requirements
|
|
Certificate
|
CQC ENEC
|
|
Used
|
home applicance,industry control, car electric, power tools
|
High quality with best price
Manufacture for mold and accessories
help us reduce cost, so the price is competitive and own testing lab , so quality can be guaranteed.
rich expreciences
more than 10 years manufacturing expreciences
technical support
we have strong technological capacity, complete production testing equipment and a perfect mold precessing center.
Machine
Workshop
Our Workshop
laboratory center
Our laboratory center
Team
Our Team
Packing Details : poly bags /carton; inner boxes/ carton
Delivery Details : by sea, by air, by UPS, DHL, FEDEX, up to customer request.
1. inner box
2. polybag
3. cartons for oversea
most of our products have passed safety certifications as UL, CQC, CE,VDE,SEMKO,CB and the material we used are RoHs standard
