Ceramic glass is a crystalline material produced through controlled crystallization of base glass and has the fabrication advantage of glass as well special properties of ceramics.It is an extremely heat resistant glass.It is a mechanically strong material and can sustain repeated and quick temperature changes up to 660-850 degree centigrade.It is widely used for fireplace,micro oven screen,induction cooker.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Vatti Glass
-
Model Number:
-
Ceramic Glass
-
Size:
-
Customised
-
Edge:
-
Polished
-
Feature:
-
High Temperature Resistant
-
Function:
-
Fire Proof
-
Sample:
-
7 days
Quick Details
-
Application:
-
Kitchen, School, Home Office, Apartment, Hospital, Hotel
-
Usage:
-
Industrial, Medical, Decoration, Lighting, Display screen, Instrument
-
Thickness:
-
4--6mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Vatti Glass
-
Model Number:
-
Ceramic Glass
-
Size:
-
Customised
-
Edge:
-
Polished
-
Feature:
-
High Temperature Resistant
-
Function:
-
Fire Proof
-
Sample:
-
7 days
Product Show

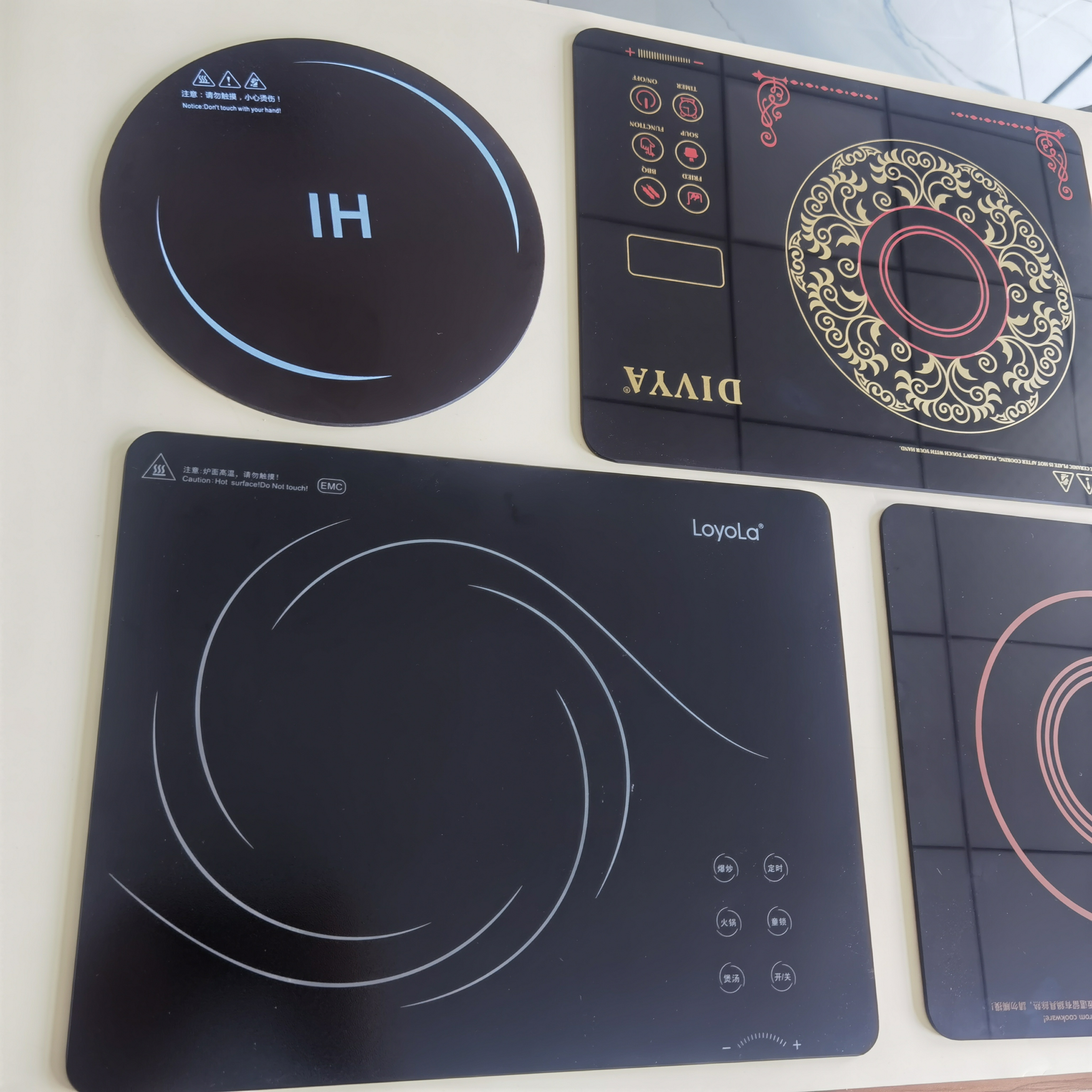

4mm, 6mm Black Ceramic Glass Cooktop For Cooker
Black Glass Ceramic
Vision panels for indoor heaters / fireplace(gas, fuel oil, traditional fuels)
Cover panel for infrared heater / warming oven / dryer / projector / cooker / stove hob / high power floodlights and reflectors
Cover panel for infrared heater / warming oven / dryer / projector / cooker / stove hob / high power floodlights and reflectors
White Glass Ceramic
1. Maximum Size:920*800mm(Available)
2. Thickness: 3.5mm 4mm 6mm,especially 4mm
3. Color: black,white, multicolored or as your requirement
4. Rich export experience,more than 60countries.
2. Thickness: 3.5mm 4mm 6mm,especially 4mm
3. Color: black,white, multicolored or as your requirement
4. Rich export experience,more than 60countries.
Vatti Glass can provide all custom shapes of glass ceramic you want
.
No matter round,square,rectangular we all can make.
with the custom silk printing patterns.
The main reason for the use of glass-ceramics in commercial induction cooker panels is that the properties of glass-ceramics are
high in mechanical strength, excellent in insulation performance, low in dielectric loss, stable in dielectric constant, and thermal expansion coefficient can be adjusted in a wide range, resistant to chemical corrosion and abrasion.
Glass-ceramic is a material that looks and feels like glass, but is much harder to break and capable of withstanding extreme heat of up to 1200°F (649°C).Most appliance makers claim that the best cookware for flat cooktops are stainless steel pans and pots. Cook with cast iron and
ceramic cookware carefully, without moving it around too much on the surface. Its rough and porous surface can easily scratch your cooktop.
ceramic cookware carefully, without moving it around too much on the surface. Its rough and porous surface can easily scratch your cooktop.
Ceramic glass features
1. Glass ceramic is rsisting to heat and cold, even to extreme temperature changes.This extraordinary property enables a variety of applications: cooking on glass ceramic appliances day after day , and protecting your fire places or stoves, still enjoying flames view.
2. Among the heat resistant glasses, glass ceramic is really special. Its key property, is low thermal expansion, lower than borosilicate glasses or standard glasses. It means that, unlike most materials, the crystallite glass ceramic will not expand nor contract with heat. It barely changes its dimensions. This is the reason behind efficient and long time resistant cooktops .
2. Among the heat resistant glasses, glass ceramic is really special. Its key property, is low thermal expansion, lower than borosilicate glasses or standard glasses. It means that, unlike most materials, the crystallite glass ceramic will not expand nor contract with heat. It barely changes its dimensions. This is the reason behind efficient and long time resistant cooktops .
The dimension of the glass-ceramics for induction?
With the increase in gas prices, the cost of the catering industry, and the perception of cooking without open flames, the number of commercial induction cookers has increased. The demand for concave glass-ceramics will also increase accordingly. Commonly used thickness of 12 ~ 20mm commercial induction cooker plane microcrystalline glass plate conventional size: 250 × 250mm, 300 × 300mm, 350 × 350mm, 450 × 450mm, 500 × 500mm, 600 × 600mm and so on. The conventional dimensions of the concave glass ceramic used in the commercial induction cooker are: diameter 200 mm, diameter 300 mm, diameter 400 mm, diameter 500 mm, and the like.
Specification
We offer a variety of corner radius sizes for your custom product labels. By default we use a corner radius of 1/8” or .125” which comes to 3.175mm.
Please note that unless specified otherwise, your corner radius will be a default measurement with no die cut fee required.
Depending on the size corner radius you choose, you may need to purchase a die cut for a one time fee.Available Corner Radius Options. Please Note, Some Cuts (Not All) May Require A Separate Die Cutting Fee.
Please note that unless specified otherwise, your corner radius will be a default measurement with no die cut fee required.
Depending on the size corner radius you choose, you may need to purchase a die cut for a one time fee.Available Corner Radius Options. Please Note, Some Cuts (Not All) May Require A Separate Die Cutting Fee.
|
Density ρ
|
approx. 2.6 g / cm3
|
|
Coefficient of Linear Thermal Expansion α(20 - 700°C)
|
(0 ± 0.5) x 10-6 /K
|
|
Specific Thermal Capacity (CP20 - 100°C)
|
0.8x103J/(kg x k)
|
|
Resistance to Thermal Gradients(RTD)
|
Tes, max1) ≤ 700°C
|
|
Resistance to Thermal Shock
|
Tes, max ≤ 700°C
|
|
Working temperature
|
760°C
|
|
Acid resistance DIN 12116
|
The lowest grade S3
|
|
Alkali resistance ISO 695
|
The lowest grade A2
|
|
Water resistance DIN ISO 719
|
HGB 1
|
Application
Why the induction cooker panel uses glass-ceramics
Glass-ceramic,like ceramics, consists of crystals, that is, its atomic arrangement is regular. Therefore, glass-ceramics have higher brightness than ceramics and are more tough than glass. The main reason for the use of glass-ceramics in commercial induction cooker panels is that the properties of glass-ceramics are high in mechanical strength, excellent in insulation performance, low in dielectric loss, stable in dielectric constant, and thermal expansion coefficient can be adjusted in a wide range, resistant to chemical corrosion and abrasion. Good thermal stability and high operating temperature. Planar glass-ceramics are currently widely used in stoves for household induction cookers. Concave-ceramic glass-ceramics refer to glass-ceramics that are concave in shape and resemble the current state of the pot. The main use of the glass-ceramic plate is currently mainly used in high-power commercial induction cookers.
We have cooperated with lots of brand in China, all kinds of induction cookers surface glass can custom to make
The price we are provide not the fixed price,depend on the size what you need.
Packing & Delivery
1. With carton+poly foam packing
2. With wooden pallet packing
3. Other packing methods by your requirement
