Quick Details
-
Weight:
-
12KG
-
Power:
-
140W
-
Weight (KG):
-
10 kg
-
Name:
-
Ozone disinfection
-
Color:
-
blue
-
Size:
-
4.3"*3"*1.4"(110*75*35 mm)
-
Electrical:
-
DC12V-AC220V-AC110V
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Beyok
-
Material:
-
Metal
-
Weight:
-
12KG
-
Power:
-
140W
-
Weight (KG):
-
10 kg
-
Name:
-
Ozone disinfection
-
Color:
-
blue
-
Size:
-
4.3"*3"*1.4"(110*75*35 mm)
-
Electrical:
-
DC12V-AC220V-AC110V
Products Description

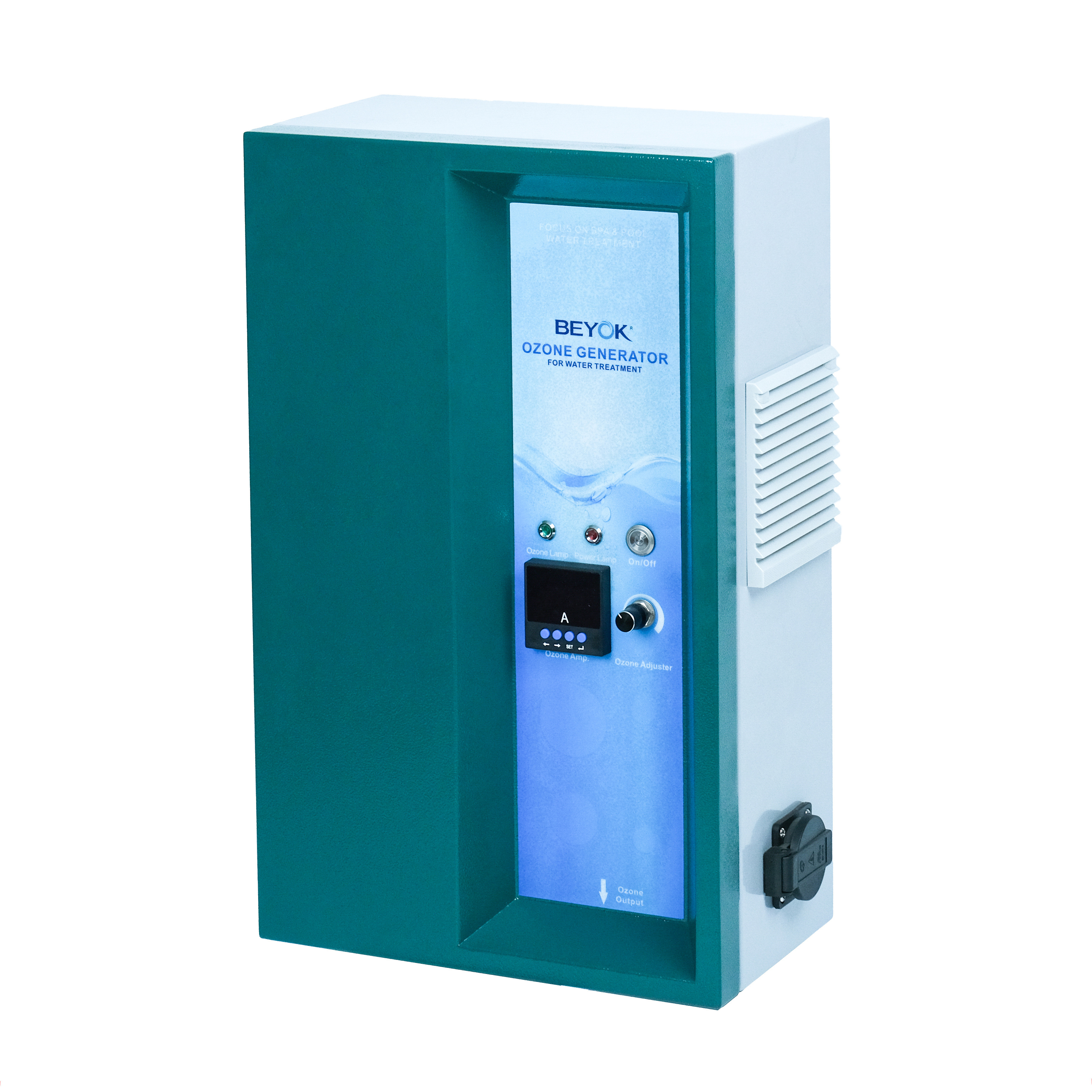

The GQW-P / GQO-P series of BEYOK pool ozone generators, can mix ozone into water to destroy bacteria and eliminate peculiar smell. The ozone generators have perfect automatic ozone production systems including oxygen generator or air pump, ozone system, cooling system and automatic control system. They are suitable for swimming pool, large food processing plants, canteen, sewage treatment, etc.
Features
Application
* Disinfection: Swimming pool and small water treatment.
* Deodorization: basement, store room, hotel, central air-conditioning cooling tower.
About BEYOKozone
* Own more than 20 years' experiences
* Get more than 100 patents
* Covers an area of 1.3 hectares
* Located near Shanghai, good transportation
* ISO9001/14001/45001 systems
* 1 million annual production capacity
* Have professional R&D teams
* Support OEM/ODM
Parameters
|
Model:
|
GQO-P07V
|
GQO-P15V
|
GQO-P20S
|
GQO-P50S
|
|||
|
Installation:
|
Wall-mounted
|
|
Skid-mounted
|
|
|||
|
Connection method:
|
Air pump inside
|
|
Oxygen generator inside
|
|
|||
|
Voltage:
|
220V/50Hz-120V/60Hz
|
|
|
|
|||
|
Power:
|
100W
|
220W
|
500W
|
1200W
|
|||
|
Ozone Output:
|
5-10 g/hr@10Lpm
|
15-20 g/hr@20Lpm
|
15-20 g/hr@5L/min
|
40-50 g/hr@10Lpm
|
|||
|
Control:
|
Timer control
|
|
Program control
|
|
|||
|
Connection:
|
8*6mm Stainless steel quick joint
|
|
|
|
|||
|
Ozone Injector:
|
HH-F40
|
HH-F50
|
HH-F25
|
HH-F40
|
|||
|
Case:
|
Plastic
|
Metal
|
Metal
|
Metal
|
|||
|
Dimension:
|
384*177*400 mm
|
300*170*480 mm
|
480*280*720 mm
|
480*300*850 mm
|
|||
|
Net Weight:
|
9 kg
|
11 kg
|
43 kg
|
62 kg
|
|||
|
Adapted pool:
|
100m3
|
200m3
|
300m3
|
600m3
|
|||
Installation Diagram
Venturi Injector Parameters
