Quick Details
-
Brand Name:
-
Peakmeter
-
Model Number:
-
PM18C
-

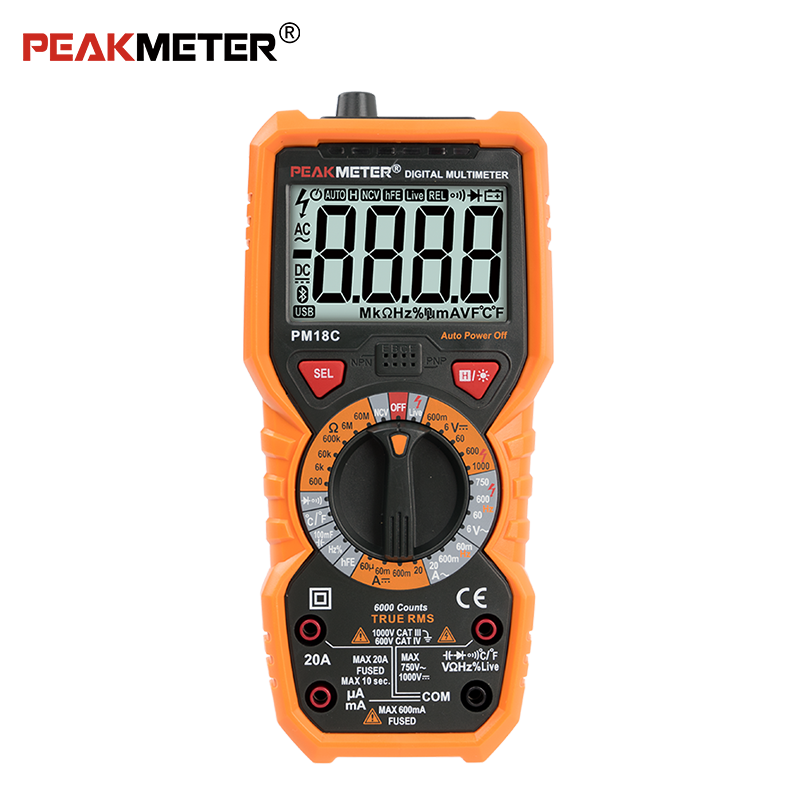

Product Name:
-
multimeter
-
Display:
-
LCD Display
-
Color:
-
Orange+black
-
WEIGHT:
-
380g
-
Certificate:
-
ISO9001
-
Duty Cycle:
-
5.0%~95.0%
-
Frequency:
-
99.99Hz~9.999MHz
-
back light:
-
yes
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Other Country
-
Brand Name:
-
Peakmeter
-
Model Number:
-
PM18C
-
Product Name:
-
multimeter
-
Display:
-
LCD Display
-
Color:
-
Orange+black
-
WEIGHT:
-
380g
-
Certificate:
-
ISO9001
-
Duty Cycle:
-
5.0%~95.0%
-
Frequency:
-
99.99Hz~9.999MHz
-
back light:
-
yes
| SPECIFICATIONS | RANGE | ACCURACY |
| DC Voltage | 600mV/6V/60V/600V/1000V | ±(0.5%+3) |
| AC Voltage | 6V/60V | ±(0.8%+3) |
| 600V/750V | ±(1.0%+10) | |
| Resistance(Ω) | 600/6k/60k/600k/6M | ±(0.8%+3) |
| 60MΩ | ±(1.2%+30) | |
| Capacitance | 6nF | ±(4.0%+30) |
| 60nF/600nF/6uF/60uF/600uF/6mF | ±(4.0%+3) | |
| 100mF | ±(5.0%+3) | |
| Frequency | 9.999/99.99/999.9/9.999k/99.99k/999.9k/9.999MHz | ±(1.0%+3) |
| Duty | 5%~95% | ±(2.0%+3) |
| ℃/℉ | -20℃~1000℃/-4℉~1832℉ | ±(1.0+3) |
| AC Current | 60mA/600mA | ±(1.0%+3) |
| 20A | ±(1.5%+3) | |
| DC Current | 60uA/60mA/600mA | ±(0.8%+3) |
| 20A | ±(1.2%+3) | |
| HFE | 0-1000 | ±(1.0%+3) |
| FEATURE | ||
| Display | 6000 counts | |
| ACV/ACA TRMS | √ | |
| ACV(bandwidth) | 1kHz | |
| ℃/℉ | √ | |
| Hz | 10MHz | |
| Duty | 5%~95% | |
| Ω | 60MΩ | |
| Capacitance | 100mF | |
| Continuity | √(Sound and LED Alarmed) | |
| Diode Test | √ | |
| HFE | √ | |
| Live line test(high,medium and low)Sound and LED Alarm | √ | |
| Worklight | √ | |
| Low Battery Indication | √ | |
| NCV(high,medium and low)Sound and LED Alarm | √ | |
| Auto Power Off | √ | |
| GENERAL | ||
| Power Supply | 4×1.5V AAA | |
| Weight | 380g | |
| Size | 190mm×89mm×50mm | |
| Safety Rating | EN61010-1,EN61010-2-033 EN61326,CATⅢ 1000V/CAT IV 600V | |
