Tank Lifting Machine
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
WINCOO
-
Model Number:
-
YT10-2700C
-
Min Height:
-
1280mm
-
Product name:
-
Hydraulic jacking system
-
Maximum service pressure:
-
31 Mpa
-
Hydraulic cylinder lifting speed:
-
270 mm/min
-
Max stroke of hydraulic cylinder:
-
1400mm
Quick Details
-
Warranty:
-
3 years
-
Type:
-
Hydraulic Jack
-
Max Height:
-
2680mm
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
WINCOO
-
Model Number:
-
YT10-2700C
-
Min Height:
-
1280mm
-
Product name:
-
Hydraulic jacking system
-
Maximum service pressure:
-
31 Mpa
-
Hydraulic cylinder lifting speed:
-
270 mm/min
-
Max stroke of hydraulic cylinder:
-
1400mm
Product Overview
Advanced Two-Stage Hydraulic Jacking System
YT-C type hydraulic storage tank lifting equipment is a set of large hydraulic lifting equipment specially developed by our company for national crude oil reserve project in 1994.As long as the number of hydraulic cylinder and pump station system is increased or decreased, this type of equipment can be applied to the inverted construction of large storage tanks with different volumes ranging from thousands of cubic meters to hundreds of thousands of cubic meters.
The control part adopts Siemens PLC modular design concept, simple operation, reliable quality.The hydraulic cylinder can be used for single or multiple lifting height adjustment, and can also be used for centralized control of multiple groups.Through more than ten years of practice summary, we continue to optimize the equipment, improve the production process, so that the product quality and performance greatly improved, the majority of users praise.
The control part adopts Siemens PLC modular design concept, simple operation, reliable quality.The hydraulic cylinder can be used for single or multiple lifting height adjustment, and can also be used for centralized control of multiple groups.Through more than ten years of practice summary, we continue to optimize the equipment, improve the production process, so that the product quality and performance greatly improved, the majority of users praise.
FEATURES AT A GLANCE
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
Model/
Parameter
|
Max service pressure
|
Max output force of single hydraulic cylinder
|
Max stroke of hydraulic cylinder
|
Hydraulic cylinder lifting speed
|
Oil pump flow
|
Motor speed
|
Motor voltage
|
Motor power
|
|
YT10-2200C
|
24Mpa
|
10T
|
1250mm
|
190mm/min
|
14.4L/min
|
1440r/min
|
~380V
|
5.5kw
|
|
YT10-2700C
|
31Mpa
|
10T
|
1400mm
|
270mm/min
|
7.2L/min
|
1440r/min
|
~380V
|
5.5kw
|
|
YT12-2700C
|
31Mpa
|
12T
|
1400mm
|
250mm/min
|
7.2L/min
|
1440r/min
|
~380V
|
5.5kw
|
|
YT18-1700C
|
24Mpa
|
18T
|
1240mm
|
175mm/min
|
7.2L/min
|
1440r/min
|
~380V
|
4kw
|
|
YT18-2000C
|
24Mpa
|
10T
|
1240mm
|
175mm/min
|
7.2L/min
|
1440r/min
|
~380V
|
4kw
|
|
YT18-3000C
|
25Mpa
|
18T
|
1600mm
|
187mm/min
|
7.2L/min
|
1440r/min
|
~380V
|
5.5kw
|
|
YT25-2700C
|
31.5Mpa
|
25T
|
1650mm
|
175mm/min
|
7.2L/min
|
1440r/min
|
~380V
|
5.5kw
|
|
YT25-3000C
|
29Mpa
|
25T
|
3200mm
|
160mm/min
|
7.2L/min
|
1440r/min
|
~380V
|
4kw
|
|
YT30-2700C
|
29Mpa
|
30T
|
2050mm
|
130mm/min
|
7.2L/min
|
1440r/min
|
~415V
|
4kw
|

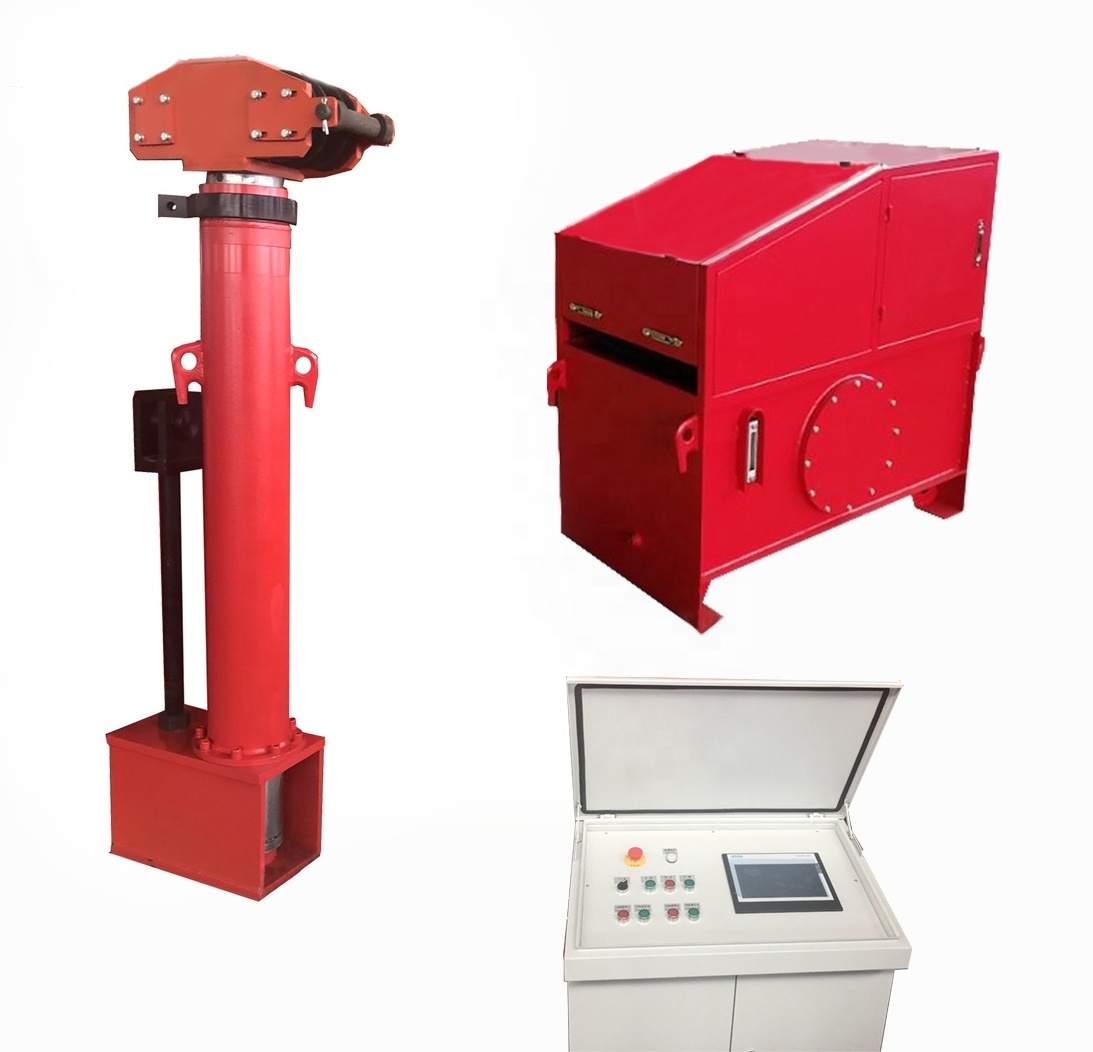

PRODUCT CONFIGURATION
Control Box
Hydraulic Pump Station
Hydraulic Jakcs
Successful Project
Project in
Senegal
Project in
Trinidad and Tobago
Project in
Kenya
SIMILAR PRODUCTS
FAQ
1. Support you to win the project during bidding phase. We can provide your more suitable configurations to help you shorten the constrcution time.
2. We can provide all technical documents and advices to support you for construction procedure clearifications
3. We can calculate the most suitable number of hydraulic jack according to the weight of the tank
4. We can provide your suitable hydraulic jack accessories with much more competetive price from our long time business partner if you need.
5. We can provide site people training service, and operation service or manpower service or as a subcontractor
