Quick Details
-
Model Number:
-
PD-V11H
-
Place of Origin:
-
Zhejiang,China
-
Brand Name:
-
PDLUX
-
Theory:
-
Self-emitting Radar
-
Output:
-
Analog Sensor
-
Supply Voltage:
-
4.75V - 5.25V (Typ:5.0V)
-
Frequency Setting:
-
24.125GHz
-
Weight:
-
3.7~4.5g
-
Application:
-
Lighting ,Switch,Intelligent Products
Quick Details
-
Use:
-
Monitor Moving Objects
-
Mounting Type:
-
Ceiling /Wall mounted
-
Description:
-

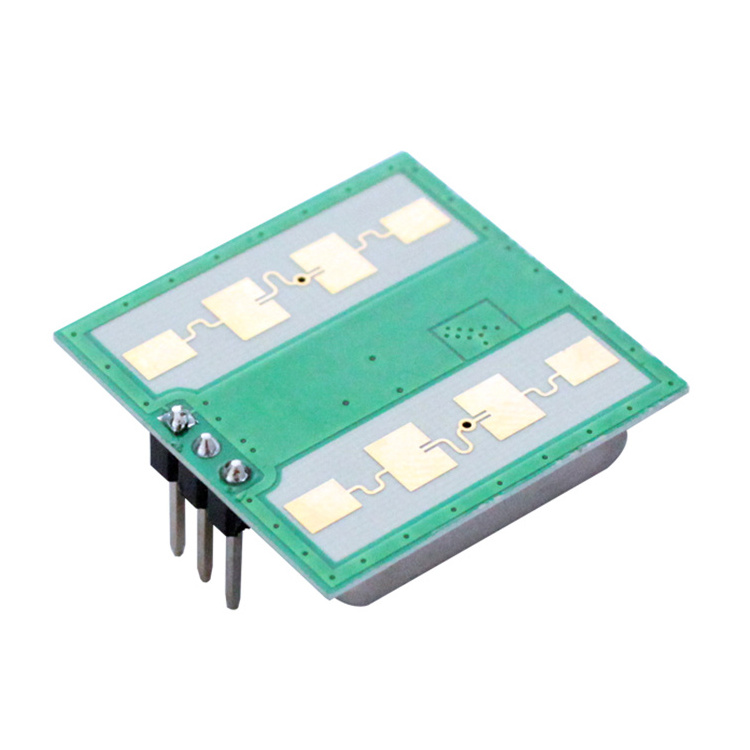

Microwave Sensor Module
-
Model Number:
-
PD-V11H
-
Place of Origin:
-
Zhejiang,China
-
Brand Name:
-
PDLUX
-
Theory:
-
Self-emitting Radar
-
Output:
-
Analog Sensor
-
Supply Voltage:
-
4.75V - 5.25V (Typ:5.0V)
-
Frequency Setting:
-
24.125GHz
-
Weight:
-
3.7~4.5g
-
Application:
-
Lighting ,Switch,Intelligent Products
Product Description
Specification
|
Parameter
|
Notes
|
Min
|
Typ
|
Max
|
Units
|
||||
|
Supply Voltage
|
Vcc
|
3.0
|
5.0
|
5.25
|
V
|
||||
|
Current Consumption
|
Icc
|
20
|
35
|
38
|
mA
|
||||
|
Operation mode
|
Powered by PW, it can control the working current at 3-15mA
|
|
|
|
|
||||
|
Pulse Repetition Frequency
|
1-10
|
|
|
|
KHz
|
||||
|
Operating Temperature
|
Top
|
-30~+85 +100（Max.）
|
|
|
℃
|
||||
|
Storage temperature
|
Tstg
|
-10
|
|
+60
|
℃
|
||||
|
Stable time
|
|
<5
|
|
|
μSec
|
||||
|
Frequency Setting
|
f
|
24.000
|
24.125
|
24.250
|
GHz
|
||||
|
Radiated Power (EIRP)
|
Pout
|
<2.0
|
<2.5
|
<3.0
|
mW
|
||||
|
Pulse Width
|
>3 μSec
|
|
|
|
|
||||
|
Storage ambient humidity
|
45%~65%
|
|
|
|
RH
|
||||
