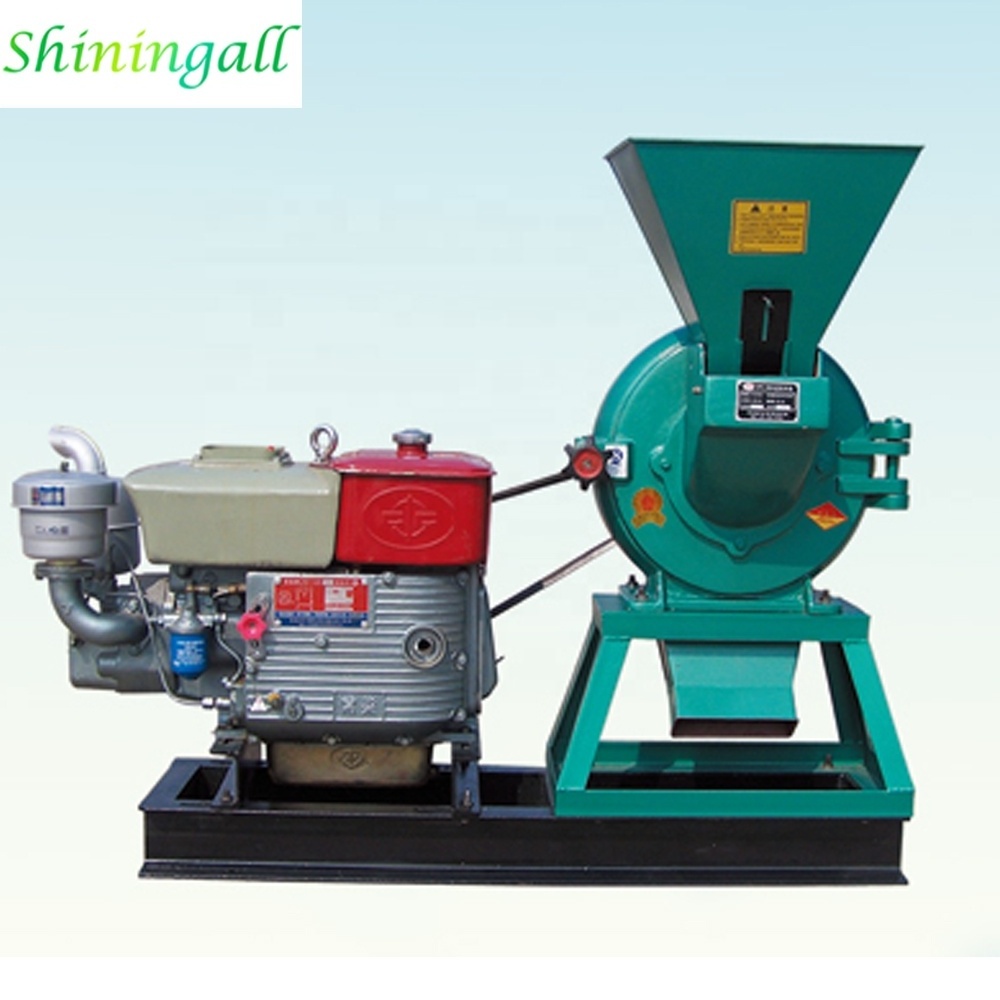

Small size moulin farine corn milling maize meal grinding machine grain grinder

Small size moulin farine corn milling maize meal grinding machine grain grinder

FOB Reference Price: Get Latest Price

≥1 Sets

US $1200

≥3 Sets

US $970

≥10 Sets

US $900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 3000w

Weight:: 70 KG

Dimension(L*W*H):: 230*230*370mm

MOQ:: 1 Set

Feature:: Small Size High Output

Advantage:: Simple structure, small volume, light weight, easy to install

Quality:: excellent quality, durability

Function:: Multifunction

Price:: Reasonable

Application:: Food Flour Grinding Mill Machine

Suit for:: Dry Food

After Warranty Service:: Video technical support

After-sales Service Provided:: Online support

Quick Details

Place of Origin:: China

Brand Name:: Shiningall

Voltage:: Three-phase alternating current

Power:: 3000w

Weight:: 70 KG

Dimension(L*W*H):: 230*230*370mm

MOQ:: 1 Set

Feature:: Small Size High Output

Advantage:: Simple structure, small volume, light weight, easy to install

Quality:: excellent quality, durability

Function:: Multifunction

Price:: Reasonable

Application:: Food Flour Grinding Mill Machine

Suit for:: Dry Food

After Warranty Service:: Video technical support

After-sales Service Provided:: Online support

Products Description

Household Multifunctional Electric Flour Mill Machine Crusher

Model: 9FC-23

Grining grain

Grinding spices

Grinding Chinese herbal

medicines

Grinding coffee

Large capacity

Efficient and convenient

Machine Parameters

Model	Capacity	Motor power	Net weight	Dimension	Flour mesh
9FC-23	180KG/H	3KW	70kg	800500700MM	20-100

Longer life The gear plate adopts one-piece casting, which is strong and firm, and the contact with the material is more balanced, and the crushed material is more delicate.

Outstanding output
The thickened gear speeds up the discharging speed and the wind cooling efficiency is high, the time-consuming is less, the
crushing fineness is high, and the output is outstanding

Stable performance 9FC-23 crusher has small size, low power and stable performance. The host can be made of cast steel, 304 or 316 stainless steel , and there are different body materials for your choice.

Uniform particles The net width of the screen is 43mm, the particle size is uniform, and the crushing effect is good. Screen diameter 294mm.

Running smoothly Wide range of applications
Chemicals, food, paper, Chinese medicinal materials, feed processing plants, farms

Parameters of different models of this series of products

Model	9FC-70	9FC-60	9FC-45D	9FC-37	9FC-26	9FC-15
capacity（corn)	3000KG/H	2000KG/H	950KG/H	450KG/H	230KG/H	55KG/H
Motor power	30/37KW	22/30KW	11/15KW	7.5/11KW	3/4KW	1.1KW
Net weight	About 475KG	About 396KG	About 300KG	About 226KG	82KG	17KG
Dimension	16406301500	15006001260	13508501020	1100x400x1270	800x370x840	580x260x260
Flour mesh	20~100	20~100	20~100	20~100	20~100	20~100
Feed size	<7cm	<6cm	<5cm	<5cm	<3cm	<3cm
Main shaft speed R/Min	3000	3000	3300	3600	5800	9000
Disc outer diameter	600mm	500mm	450mm	370mm	255mm	150mm
Number of flat teeth	5 long+5 short	5long+5short	5	4	4	3
Number of round teeth	17	10	12	8	4	3
Number of V-belts	6	6	4	3	3	1
Screen size	2100*146mm	1800*146mm	1580*130mm	1350*74mm	900*74mm	175*43mm
