Quick Details
-
Brand Name:
-
JIESUTE
-
Place of Origin:
-
Chongqing, China
-
Wheelbase(mm):
-
1350
-
Tread(mm):
-
460
-
Seat height(mm):
-
750
-
Motor brand:
-
Transit
-
transfer method:
-
Rear wheel direct drive
-
Tire pressure:
-
180/180
-
Tire type (Fr/rear):
-
Fr 90/90-12/Rr 3.0-10
-
Rim type (Fr/Rr):
-
Plate wheel
-
L*W*H(mm):
-
1900*660*1030
-
Pedal size (L * W):
-
345*440
Quick Details
-
Motorcycle Type:
-
Off-Road Motorcycles
-
Max. Speed:
-
40 - 60km/h
-
Voltage:
-
60V
-
Brand Name:
-
JIESUTE
-
Place of Origin:
-
Chongqing, China
-
Wheelbase(mm):
-
1350
-
Tread(mm):
-
460
-
Seat height(mm):
-
750
-
Motor brand:
-
Transit
-
transfer method:
-
Rear wheel direct drive
-
Tire pressure:
-
180/180
-
Tire type (Fr/rear):
-
Fr 90/90-12/Rr 3.0-10
-
Rim type (Fr/Rr):
-
Plate wheel
-
L*W*H(mm):
-
1900*660*1030
-
Pedal size (L * W):
-
345*440

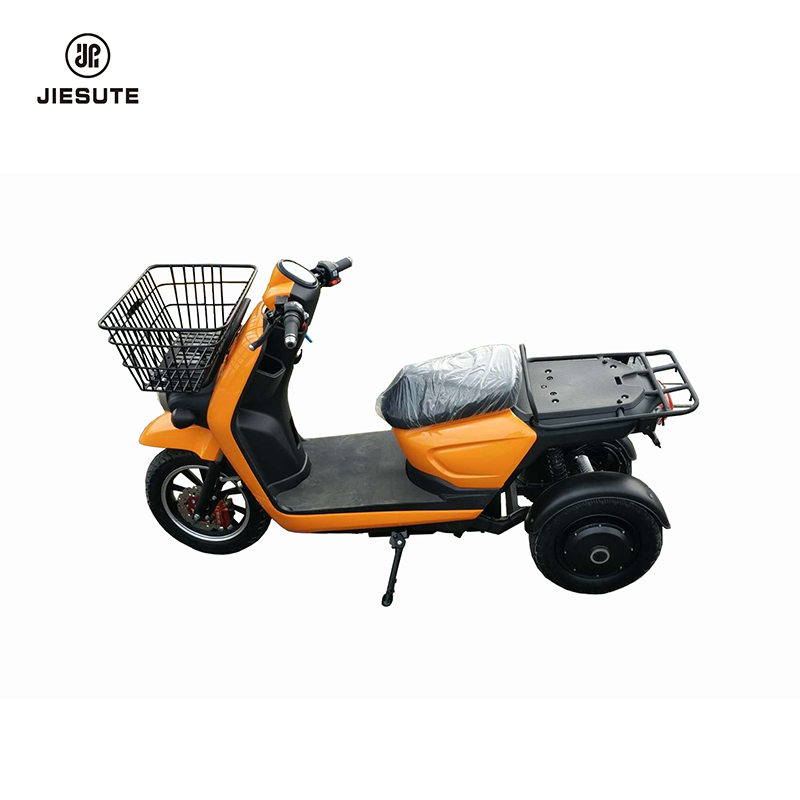

Product Show
Product Parameter
| Model | JST EM-4A |
| Maximum speed (km/h) | 45 |
| Min ground clearance (mm) | 180 |
| Tread(mm) | 460 |
| Cushion size (L * W) | 430*350 |
| Pedal size (L * W) | 345*440 |
| Pedal height | 340 |
| Rear shelf dimensions (L * W) | 510*430 |
| Front frame size (L * W * D) | 350*475*230 |
| Vehicle conditioning quality (kg) | 120 |
| Rated load mass (kg) | 150 |
| Brake type (Fr/Rr) | Fr disc / Rr double disc |
| Brake operation mode (Fr/Rr) | Fr/Rr hand brake |
| Rim type (Fr/Rr) | Plate wheel |
| Tire type (Fr/Rr) | Fr 90/90-12/Rr 3.0-10 |
| Tire pressure | 180/180 |
| transfer method | Rear wheel direct drive |
| Motor type | DC brushless 10 inch wheel |
| Integrated motor | |
| Motor rated power (W) (2) | 1000 |
| Motor brand | Transit |
| Rated speed (r/min) | 550 |
| Rated output torque (N.m) | 80*2 |
| Motor efficiency (%) | 85 |
| Livestock battery type | Pluggable lithium battery |
| Livestock battery rated capacity (A) | 50 |
| Battery nominal voltage (V) | 60 |
| Undervoltage protection value (V) | 52 |
| Overcurrent protection value (A) | 80 |
| Continued mileage (km) | 100 |
| (30km/h flat road) | |
| Maximum roll angle | 28 |
| Wheelbase(mm) | 1350 |
| Maximum climbing angle | 20 |
| L*W*H(mm) | 1900*660*1030 |
| Seat height(mm) | 750 |
