Quick Details
-
Dimension(L*W*H):
-
1800*800*1150MM
-
Weight:
-
1200 KG
-
Product name:
-
Coconut husk shredder drum chipper chips making machine
-
Capacity for wood chipper:
-
6-50t
-
Feed size:
-
180-700mm
-
Feeding speed:
-
38r/min
-
Thickness:
-
0.1-1mm
-
Width for wood chipper:
-
3-5cm
-
Blades:
-
3-12
-
Voltage for wood chipper:
-
380V 50HZ 3phase
-
Raw material:
-
Timber,processing residue
-
Knife / blades materials:
-
Alloy steel
Quick Details
-
Use:
-
Chipping Wood
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Chryso
-
Dimension(L*W*H):
-
1800*800*1150MM
-
Weight:
-
1200 KG
-
Product name:
-
Coconut husk shredder drum chipper chips making machine
-
Capacity for wood chipper:
-
6-50t
-
Feed size:
-
180-700mm
-
Feeding speed:
-
38r/min
-
Thickness:
-
0.1-1mm
-
Width for wood chipper:
-
3-5cm
-
Blades:
-
3-12
-
Voltage for wood chipper:
-
380V 50HZ 3phase
-
Raw material:
-
Timber,processing residue
-
Knife / blades materials:
-
Alloy steel

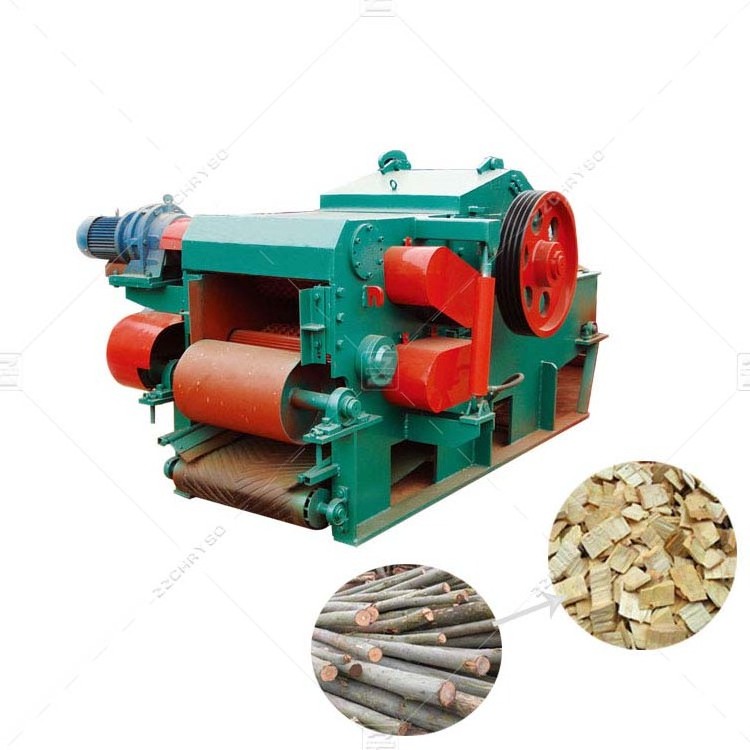

Coconut husk shredder drum chipper chips making machine
Advantages of Wood Chipper Machine
Flexible adaptability
The design of this machine avoids making the foundation. And it's suitable for many different conditions, it doesn't influenced by weather and other external conditions.
Save time
This machine can put into production directly which will save much time.
Save money
This machine has a large capacity and works reliable, only one or two person could control it.
Good crushing effect
It can crush many materials. Customers can control the size of wood chips.
1. Characteristics of wood chippers:
1) Advanced structure and reliable technology.
2) High throughput capacity and high quality chips.
3) Cost-efficient and space-saving.
4) Hydraulic control, simple operation, easy to maintenance.
5) A ccording to customers’s requests, within a certain range adjustment wood chips discharge machine specifications.
6) Drum type,disc type,motor type,diesel type,mobile and small type for your choice.
2. Using scope and purpose of wood chippers:
W ood raw material: timber, processing residue (branches, batten, log core, building templates, roots waste veneer etc.) particle board, fiber board.
Non-wood raw material: sugarcane, reed, bamboo etc.
Final Purpose: particle board factory, high density fiberboard, stubble factory, biomass power plant, wood factory.
3 . Technical Parameters of wood chippers:
|
Model |
CRS-C215 |
CRS-C216 |
CRS-C217 |
CRS-C218 |
CRS-C2110 |
CRS-C2113 |
|
Blade dia.(mm) |
500 |
650 |
650 |
800 |
1000 |
1300 |
|
Qty. of blade( pcs ) |
2 |
2 |
2 |
2 |
2*2 |
3 |
|
The rotating speed of blade plate( r/min ) |
592 |
590 |
590 |
650 |
550 |
500 |
|
Feed size( mm ) |
180×400 |
240*540 |
240*680 |
310*680 |
330*1050 |
400*700 |
|
Max material Dia.(mm) |
160 |
220 |
220 |
300 |
380 |
380 |
|
Wood chip length(mm) |
35 |
35 |
35 |
15-35 |
30 |
38 |
|
Capacity |
6-8 |
8-12 |
8-15 |
10-15 |
11-15 |
20-35 |
|
Power(kw) |
45 |
55 |
75 |
110 |
220 |
200 |
|
Weight |
2.9 |
4.1 |
5.5 |
7 |
12.5 |
13 |
1. Inner packing machine with wrapping film.
2. Outer packing with seaworthy fumigation-free wooden case or Plywood box Depending on customers requirement.
3. Shipping by sea from any China port.
4. Sea freight according to the destination port.
1. All products through CE certification to ensure product quality.
2. We have the price advantage to similar products.
3. Before sending the machine, we will test and adjust, so you can use directly when you get it.4. Operating video & instruction will be sent to clients, to help them better use the machines.
5. Any problems occur while using, professional advice will be given by us.
Mobile wood machines we have:
