Quick Details
-
Power:
-
customized
-
Dimension(L*W*H):
-
customized
-
Tank size:
-
customer design
-
Ultrasonic frequency:
-
28kHz / 40kHz/68kHz/80kHz/120kHz
-
Ultrasonic power:
-
3000W, customer design
-
Ultrasonic transducers:
-
60pieces
-
Ultrasonic generator:
-
KG3000
-
Solvent:
-
SUS316 for strong acid and alkaline
-
Certification:
-
CE & RoHS, CE
-
MOQ:
-
1 piece
-
Warranty time:
-
1 year
Quick Details
-
Core Components:
-
Driver board
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Skymen
-
Power:
-
customized
-
Dimension(L*W*H):
-
customized
-
Tank size:
-
customer design
-
Ultrasonic frequency:
-
28kHz / 40kHz/68kHz/80kHz/120kHz
-
Ultrasonic power:
-
3000W, customer design
-
Ultrasonic transducers:
-
60pieces
-
Ultrasonic generator:
-
KG3000
-
Solvent:
-
SUS316 for strong acid and alkaline
-
Certification:
-
CE & RoHS, CE
-
MOQ:
-
1 piece
-
Warranty time:
-
1 year

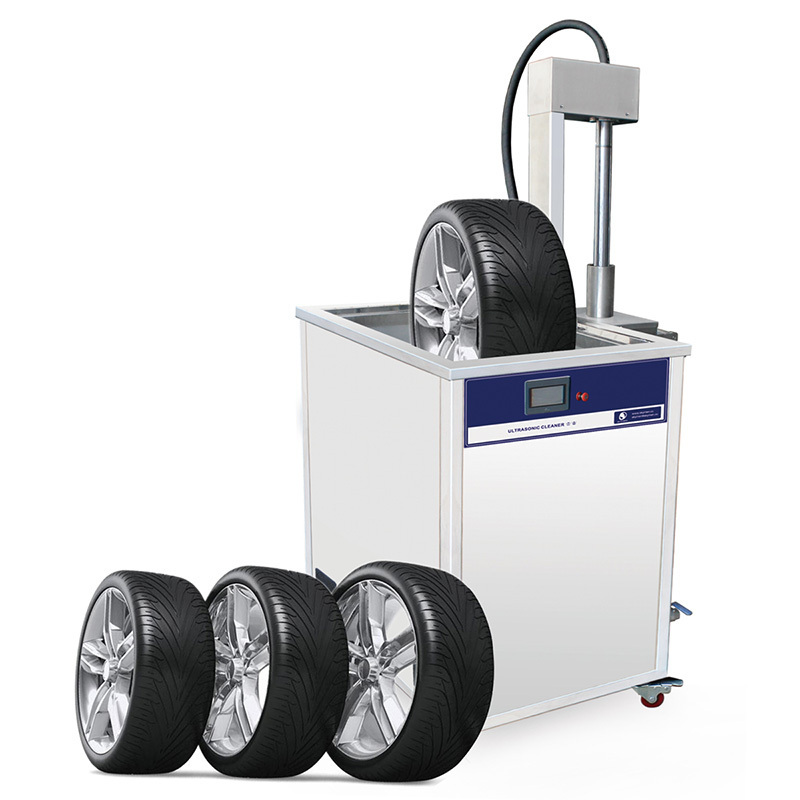

Wheel washing machine, ultrasonic washing machine for wheel
JTS-1060
Skymen ultrasonic washing machine with strong ultrasonic power
JTS tank dimension and transducers are custom made available.
Ideal to clean rust,carbon,pait,heavy oil,fruit agricultural chemicals and other things hard to clean, without damage to parts inside tank.
Why is Ultrasonic cleaning better?
The mechanism of ultrasonic cleaning is "cavitation" - which is a by-product of transmitting high frequency sound waves into a liquid medium. Alternating phases of rarefaction and compression during sound wave transmission into a liquid produce and collapse millions of microscopic vacuum cavities each second. The collapse or implosion of these cavities cause high powered microjets of liquid to be propelled throughout the bath removing even the most tenacious particles upon impact.
Advantages:
- fast, gentle, and highly efficient cleaning
- universal and compact
- easy to use, saves time and cost
- intensive dispersion and degassing
- low maintenance
-
long life
Specification details:
Housing material: SUS304/SUS316L
Surface finishing: Hard-Cr plating treatment (20+microns)
Ultrasonic frequency: 28KHz / 40KHz/ 68KHz/80KHz/120KHz
Ultrasonic transducers:60pcs
Ultrasonic power: 3000W
Electronic generator: KG3000, Ultrasonic generator work separately control transducers
power supply: AC 110V/220V or 220/240V, 1,13AMP
Features:
Adjustable ultrasonic power
Original BLT type transducer
SUS 316L stainless steel tank
Adaptable for continuous operation
Adjustable thermo controller
Adjustable ultrasonic power
With separate control ultrasonic electronic generator
sweep mode control available
digital timer & heating control
boost mode& oil skimmer upon clients requirement
pressure pump and filter system are available
Functions:
JTS series single tank ultrasonic cleaner equipment system includes replaceable transducer box and generator. The transducer box and generator can be both build-in or separate but work together to operate ultrasonic cleaning process with transducer box immersible mounted in fluid tank, one side or both side or bottom mounted inside the tank. The number and placement of transducers is selected to give maximum results in any parts cleaning tank with any cleaning load. Specification of tank dimension and transducer boxes are custom made available. Either for mould of parts cleaning can receive cleaning efficiency. Stainless steel basket is optional.
Specification details :
|
Model: Skymen™ |
JTS-1012 |
JTS-1018 |
JTS-1024 |
JTS-1030 |
JTS-1036 |
JTS-1072 |
||||
|
TANK'S WORKING DIMENSION (mm) |
L1 |
355 |
406 |
500 |
500 |
500 |
1110 |
|||
|
W1 |
305 |
305 |
355 |
406 |
460 |
600 |
||||
|
H1 |
355 |
460 |
500 |
500 |
550 |
600 |
||||
|
|
|
|||||||||
|
OVERALL DIMENSION (mm) |
L2 |
535 |
586 |
680 |
710 |
710 |
1320 |
|||
|
W2 |
485 |
485 |
535 |
586 |
640 |
780 |
||||
|
H2 |
750 |
680 |
720 |
720 |
770 |
820 |
||||
|
TANK'S TOTAL CAPACITY |
38L |
56L |
88L |
101L |
126L |
369L |
||||
|
TANK'S MATERIAL |
SUS304 / SUS316L |
|||||||||
|
IN-TANK SURFACE FINISHING |
Hard-Cr Plating Treatment ( 20+ microns ) |
|||||||||
|
HOUSING'S MATERIAL |
Stainless steel |
|||||||||
|
ULTRASONIC FREQUENCY* |
28kHz / 40kHz |
|||||||||
|
ULTRASONIC TRANSDUCER |
12 |
18 |
24 |
30 |
36 |
72 |
||||
|
ULTRASONIC OUTPUT POWER (MAX.) |
600W |
900W |
1200W |
1500W |
1800W |
3600W |
||||
|
ELECTRONIC GENERATOR |
KG600 |
KG900 |
KG1200 |
KG1500 |
KG1800 |
KG3600 |
||||
|
Build-in |
Separate |
|||||||||
|
HEATER'S (HOT PLATE) POWER |
1.5kW |
3kW |
4.5kW |
9KW |
||||||
|
CLEANING TANK’S POWER REQUIREMENT |
AC 220V / 240V, 1, 15AMP |
AC 220V / 240V, 1, 25AMP |
||||||||
|
GENERATOR’S POWER REQUIREMENT |
---- |
AC 220V / 240V, 1, 13AMP |
||||||||
|
68kHz / 80kHz / 120kHz are also available |
||||||||||
