Quick Details
-
Brand Name:
-
JuGuan
-
Model Number:
-
HJLUGB
-
Size:
-
Pipe type:DN15-DN300; Plug-in type: DN200-1500
-
Pressure:
-
1.6Mpa / 2.5 Mpa / 4.0 Mpa(High pressure negotiable)
-
Accuracy:
-
Liquid: ±1%, ±0.5% Gas or steam: ±1.5%, ±1% Insert type: ±1.5%, ±2.5%"
-
Range ratio:
-
1:10;1:15;1:20
-
Medium temperature:
-
'-30°C~+250°C,-30°C~+350°C,-50°C~+450°C.
-
environment temperature:
-
-20°C~+60°C,-50°C~+50°C.
-
relative humidity:
-
5%-90%
-
atmospheric pressure:
-
86Kpa~106Kpa
-
Output:
-
4-20mA or pulse output
-
Measuring medium:
-
liquid,gas(Non corrosive).
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Oil Flowmeters, Vortex flowmeter
-
Warranty:
-
12 months
-
Place of Origin:
-
ShangHai
-
Brand Name:
-
JuGuan
-
Model Number:
-
HJLUGB
-
Size:
-
Pipe type:DN15-DN300; Plug-in type: DN200-1500
-
Pressure:
-
1.6Mpa / 2.5 Mpa / 4.0 Mpa(High pressure negotiable)
-
Accuracy:
-
Liquid: ±1%, ±0.5% Gas or steam: ±1.5%, ±1% Insert type: ±1.5%, ±2.5%"
-
Range ratio:
-
1:10;1:15;1:20
-
Medium temperature:
-
'-30°C~+250°C,-30°C~+350°C,-50°C~+450°C.
-
environment temperature:
-
-20°C~+60°C,-50°C~+50°C.
-
relative humidity:
-
5%-90%
-
atmospheric pressure:
-
86Kpa~106Kpa
-
Output:
-
4-20mA or pulse output
-
Measuring medium:
-
liquid,gas(Non corrosive).
Products Description
1: No moving parts, long-term stability, simple structure and easy to install and maintain
2: sensor output pulse frequency, the frequency and the actual flow rate of the fluid is linear, zero drift, performance is very stable, a variety of structural forms, pipe type, insert type flow sensor form
3: high accuracy, usually liquid measurement accuracy of ±0.5%, gas measurement accuracy of ±1.5%
4: Wide measuring range, up to 120:1 in the Reynolds number range
5: The pressure loss is small (about 1/4~1/2 of the orifice flowmeter) belongs to the energy saving flow meter
6: Flexible installation mode, according to the field process pipeline, can be horizontal, vertical and different Angle tilt installation
7: Using more than low power single chip microcomputer technology, a 3V 10AH lithium battery can be used for more than five years
8: The nonlinear coefficient of the instrument is corrected by the software to improve the measurement accuracy
9: Use EEPROM to protect the accumulated flow from power failure, and the protection time is more than ten years
10: This instrument can be widely used in large, medium, small all kinds of pipeline water supply and drainage, industrial circulation, sewage treatment, oil and chemical reagents and compressed air, saturated and superheated steam, natural gas and a variety of media flow measurement.
11：
OEM,ODM,OBM customization is Acceptable
Specification
|
Type
|

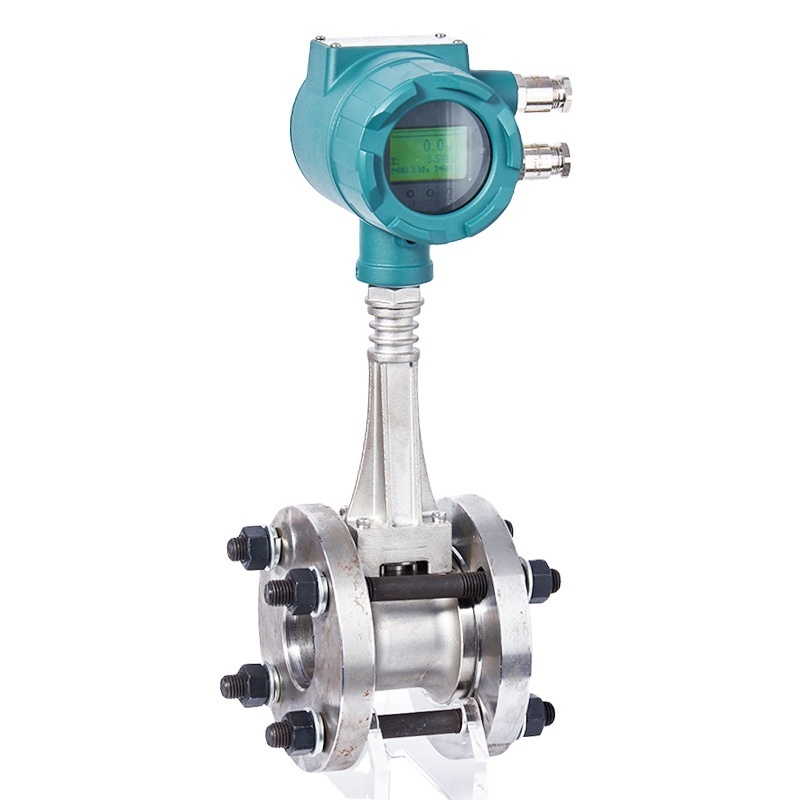

Vortex flowmeter
|
|
Size
|
Pipe type:DN15-DN300; Plug-in type: DN200-1500
|
|
Pressure
|
1.6Mpa / 2.5 Mpa / 4.0 Mpa(High pressure negotiable)
|
|
Accuracy
|
Liquid: ±1%, ±0.5%; Gas or steam: ±1.5%, ±1% Insert type: ±1.5%, ±2.5%"
|
|
Range ratio
|
1:10;1:15;1:20
|
|
Medium temperature
|
'-30°C~+250°C,-30°C~+350°C,-50°C~+450°C.
|
|
environment temperature
|
-20°C~+60°C,-50°C~+50°C.
|
|
relative humidity
|
5%-90%
|
|
atmospheric pressure
|
86Kpa~106Kpa
|
|
Explosion-proof rating
|
Exiall CT6
|
|
Output
|
4-20mA or pulse output
|
|
Measuring medium
|
liquid,gas(Non corrosive).
|
