Quick Details
-
Brand Name:
-
FEDA
-
Voltage:
-
380V 3P 50Hz
-
Power:
-
5.5KW
-
Weight:
-
2500
-
Product name:
-

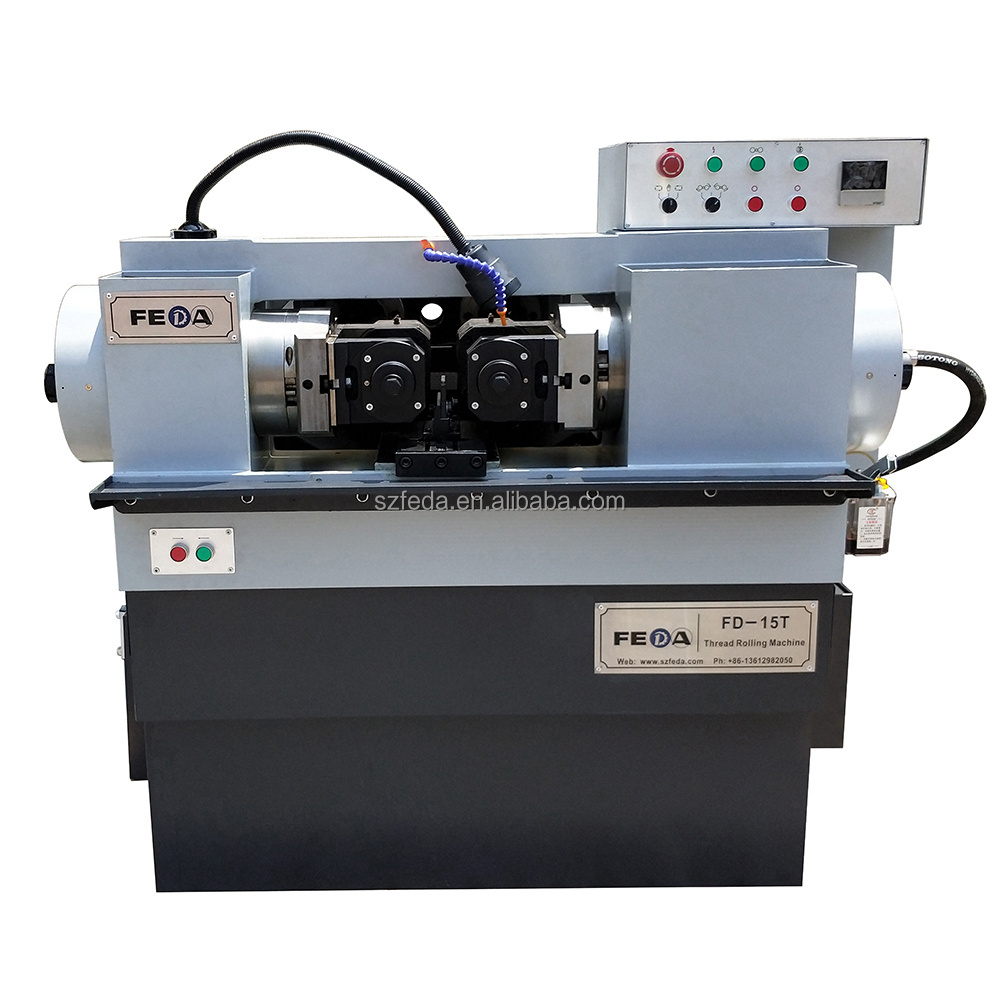

thread rolling machine 150KN
-
Thread pitch:
-
0.8-5mm
-
Spindle speed:
-
28/35/45/56rpm
-
Max. Rolling pressure:
-
15T
-
Thread length:
-
In feed or Thru feed
-
Hydraulic motor:
-
2.2KW
-
Inside diameter of rolling die:
-
54mm
-
Working diameter:
-
4-60mm
-
Thickness of rolling die:
-
120mm
-
Outside diameter of rolling die:
-
135-178mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Application:
-
Bars,solid pipe,solid tube
-
Production Capacity:
-
20-35 pcs/min
-
Brand Name:
-
FEDA
-
Voltage:
-
380V 3P 50Hz
-
Power:
-
5.5KW
-
Weight:
-
2500
-
Product name:
-
thread rolling machine 150KN
-
Thread pitch:
-
0.8-5mm
-
Spindle speed:
-
28/35/45/56rpm
-
Max. Rolling pressure:
-
15T
-
Thread length:
-
In feed or Thru feed
-
Hydraulic motor:
-
2.2KW
-
Inside diameter of rolling die:
-
54mm
-
Working diameter:
-
4-60mm
-
Thickness of rolling die:
-
120mm
-
Outside diameter of rolling die:
-
135-178mm
1. Automatic feeding with adjuatable brackets
2. Speed is adjutable for different products
3. 54mm hole diamter for SKD11 thread rolling dies
4. Max. Rolling pressure is about 150KN
5. It is easy to operate and maintain the machine
6. CE, ISO9001-2008
| Specification | ||
| Working diameter | 5-60mm | |
| Thread pitch | 0.8-5mm | |
| Thread length | In feed or Thru feed | |
| Spindle speed | 28/35/45/56rpm | |
| Outside diameter of rolling die | 135-178mm | |
| Inside diameter of rolling die | 54mm | |
| Thickness of rolling die | 120mm | |
| Min.center distance between die spindles | 120mm | |
| Max.center distance between die spindles | 240mm | |
| Machine motor | 5.5KW | |
| Hydraulic motor | 2.2KW | |
| Max. Rolling pressure | 15T | |
| Supply voltage | 380V 3P 50Hz | |
| Weight(reference) | 2500(KG) | |
| Package Dimension(L*W*H) | 1600*1540*1550 mm | |
| Dimension(L*W*H) | 1560*1550*1260 mm | |
Q1. Are you factory or trading company ?
A1. We are factory of manufacturing thread rolling machine and dies by ourselves.
Welcome to visit our factory, if possible.
Q2. What is the delivery time ?
A2. Usually 15-25 working days for machine, and 10-15 working days for dies.
Q3. What is the warranty time for machine?
A3. Usually 12 months from B/L date.
Q4. What is the payment term?
A4. T/T, Western Union, Money Gram, Alipay, PayPal.
50% as deposit, and 50% before shipping.
Q5. Is it possible to design and produce automatic loading & unloading devices?
A5. Yes, Engineer can design special auto feeding device according to your products.
But please provide the drawing of your products before that.
Q6. How will you solve problems that we face during using your machine?
A6. A. Please provide necessary videos and pictures that can show the problems, our engineers will check and give corresponding solutions.
B. Will arrange engineers to solve problems at the scene, if possible.
