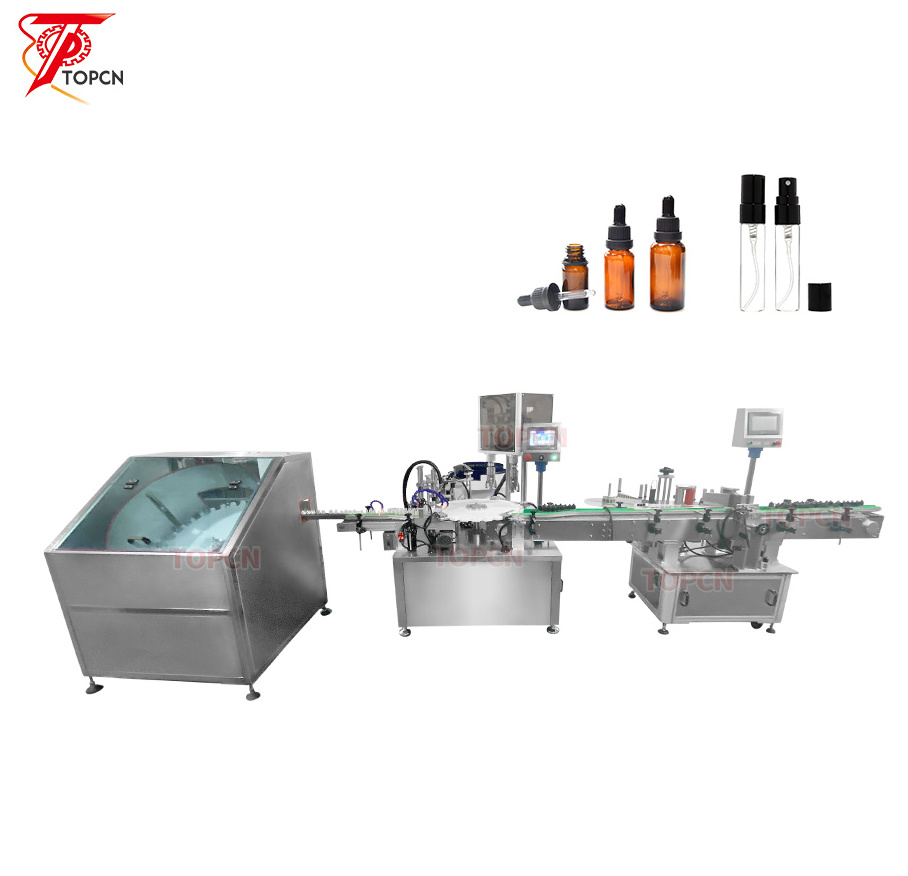

Sensor detect bottle automatic filling. According to material viscosity could be piston directly filling, piston with hopper , and
different pump filling. It suitable liquid and cream
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
1%
-
Voltage:
-
220V/110V
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
2000*1600*1900mm
-
Weight:
-
400 KG
-
Core Components:
-
other
-
Filling speed:
-
1000-2000 bph
-
Filling accuracy:
-
About 1% (for water)
-
Machine material:
-
SUS304 or 316
-
Air consumption:
-
0.6-0.8Mpa
-
Power supply:
-
AC220V/110V, 1 phase
-
Power:
-
1.2KW
-
Filling material:
-
eye drop, liquid,gel polish
Quick Details
-
Machinery Capacity:
-
2000BPH
-
Packaging Material:
-
Plastic, Glass
-
Filling Material:
-
Oil, Juice
-
Filling Accuracy:
-
1%
-
Voltage:
-
220V/110V
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
2000*1600*1900mm
-
Weight:
-
400 KG
-
Core Components:
-
other
-
Filling speed:
-
1000-2000 bph
-
Filling accuracy:
-
About 1% (for water)
-
Machine material:
-
SUS304 or 316
-
Air consumption:
-
0.6-0.8Mpa
-
Power supply:
-
AC220V/110V, 1 phase
-
Power:
-
1.2KW
-
Filling material:
-
eye drop, liquid,gel polish
Specification
|
Max filling speed
|
1000-2000 pcs/hour
|
|
Applicable bottle diameter size
|
Φ20 ≤D≤Φ50mm
|
|
Applicable bottle height size
|
30≤H≤100 mm
|
|
Filling accuracy
|
±1mm
|
|
Bottle material
|
Glass bottle, plastic bottle
|
|
Filling material
|
eye drop, liquid
|
|
Voltage
|
AC220V, single phase, 50/60HZ
|
|
Power
|
1.2KW
|
|
Working pressure
|
0.6MP
|
|
Net weight
|
400/600 Kgs
|
|
Machine size(L*W*H)
|
2000*1600*1900mm
|
Bottle Unscrambler is suitable for automatic sorting and arranging all kinds small sizes round or square shape plastic bottles feeding bottles automatically to filling lines to save labor cost.
Filling system
Cap Vibrator
Customize 1 out 2 cap vibrator arrange the cap automatically, which can feeding sharp cap, dropper cap, spray cap etc. feeding cap
speed adjustable.
speed adjustable.
Mechanical arm picking the cap, one time 2 caps feeding.
Stainless steel capping system ,according to cap shape and size to custom made, capping force and height is adjustable
Our Services
■
1. A step-by-step free English manual and operation video to easily know how to operate the machine.
■
2. Our senior engineers are skillful and fluent in English. They have rich oversea experiences and are available to oversea services. Below with some pictures our engineers trained customers how to install and operate the machines.
