Quick Details

Brand Name:: Softel

Use:: FTTX/CATV

Warranty Time:: 1 Year

Item Name:: CATV Fiber Optic Node

Receiving Optical Power:: -9 ~ +2 dbm

Optical Return Loss:: >45 db

Optical Receiving Wavelength:: 1100 ~ 1600nm or 1530 ~ 1620nm

Optical Connector Type:: SC/APC

Optic Node Fiber Type:: Single mode

Frequency Range:: 45 ~862/1003MHz

Output Return Loss:: ≥16 db

Power Voltage:: DC12V/1A

Optic Node Dimension:: 142(L)X79(W)X36(H)

Quick Details

Type:: Optical Receiver

Model Number:: SR1002S

Place of Origin:: Zhejiang, China

Brand Name:: Softel

Use:: FTTX/CATV

Warranty Time:: 1 Year

Item Name:: CATV Fiber Optic Node

Receiving Optical Power:: -9 ~ +2 dbm

Optical Return Loss:: >45 db

Optical Receiving Wavelength:: 1100 ~ 1600nm or 1530 ~ 1620nm

Optical Connector Type:: SC/APC

Optic Node Fiber Type:: Single mode

Frequency Range:: 45 ~862/1003MHz

Output Return Loss:: ≥16 db

Power Voltage:: DC12V/1A

Optic Node Dimension:: 142(L)X79(W)X36(H)

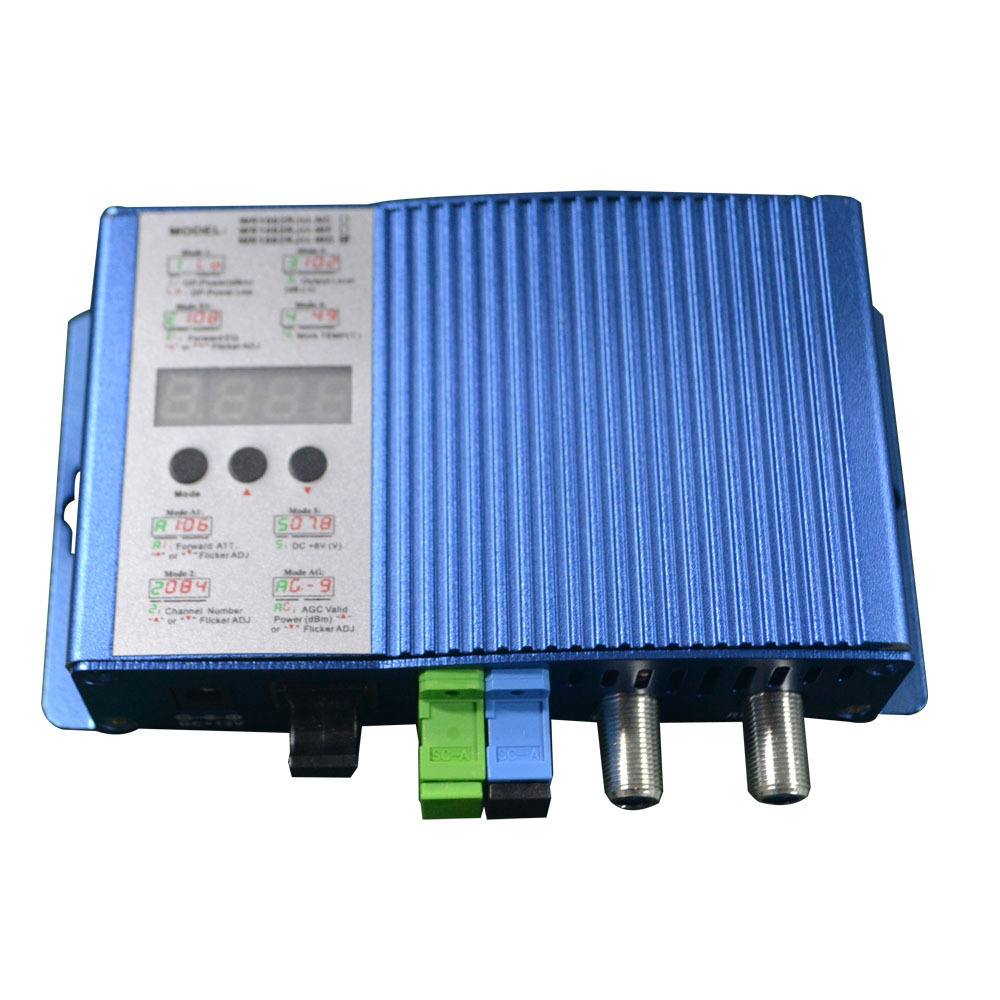

1GHz Indoor Fiber Optic Node | SR1002RJ Optical Receiver with LED Display | Bi-directional CATV Optical Node Softel

SR1002RJ II optical receiver is the latest 1GHz FTTB optical receiver, which is of wide range receiving optical power, high output level and low power consumption. It is an ideal equipment to build the high-performance NGB network. Here are three Optioncal models as follows:

SR1002RJⅡ/NC: The RFTV operating wavelength is 1100 ~ 1620nm.
SR1002RJⅡ/WF: Built-in channel filter, the RFTV operating wavelength is 1550nm.
SR1002RJⅡ/WD: Built-in CWDM, RFTV operating wavelength is 1550nm. Pass 1310/1490nm wavelength.
Can connect EPON, GPON and ONU.

Adopt advanced optical AGC control technique, the maximum AGC control range (adjustable) is -9~+2dBm;
RF amplifier part adopts the high performance low power consumption GaAs chip, the highest output level up to 114dBuv;
EQ and ATT both use the professional electric control circuit, make the control more accurate, operation more convenient;
Built-in the Chinese standard II class network management responder, support remote network management (optional);
Compact structure, convenient installation, is the first choice equipment of FTTB CATV network;
External high reliability low power consumption power supply.

Item	Unit	Technical Parameters
Optical Parameters
Receiving Optical Power	dBm	-9 ~ +2
Optical Return Loss	dB	>45
Optical Receiving Wavelength	nm	1100 ~ 1600 or 1530 ~ 1620
Optical Connector Type		SC/APC
Fiber Type		Single mode
Link Parameters
C/N	dB	≥ 51		NOTE 1
C/CTB	dB	≥ 60
C/CSO	dB	≥ 60
RF Parameters
Frequency Range	MHz	45 ~862/1003
Flatness in Band	dB	±0.75
Rated Output Level	dBμV	108 ( FZ110 configuration , with 8dB tilt output	104 (Two-way splitter, with 8dB tilt output)
Max Output Level	dBμV	1 14( - 7 ~ +2 tap configuration )	110 ( - 7 ~ +2 two-way splitter)
Output Return Loss	dB	≥16
Output Impedance	Ω	75
Electrical control EQ range	dB	0~ 15
Electrical control ATT range	dB	0~ 15
General Characteristics
Power Voltage	V	DC12V/1A
Operating Temperature	°C	-40~60
Consumption	VA	≤8
Dimension	mm	142( L ) * 79 ( W ) * 36 ( H )

Note 1: Configure 59 PAL-D analog channel signals in the 550MHz frequency range. Transmit digital

signal in the frequency range of 550~862/1003MHz. The digital signal level (in 8 MHz bandwidth) is

10dB lower than analog signal carrier level. When the input optical power of the optical receiver is -

1dBm, the output level: 108dBμV, EQ: 8dB. CATV Fiber Optic Node
