Standard manual chuck,
Optional: hydraulic chuck or pneumatic chuck.
- Product Details
- {{item.text}}
Quick Details
-
Table Travel (Y) (mm):
-
500
-
Dimension(L*W*H):
-
2750*2285*2180mm
-
Weight (T):
-
5.5 T
-
Range of Spindle Speed(r.p.m):
-
6000 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
7.5
-
Max. Table Load(kg):
-
600 kg
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
STSK
-
Marketing Type:
-
Hot Product 2024
Quick Details
-
Table Size (mm):
-
500*1000mm
-
Number of Axes:
-
4
-
Table Travel (X) (mm):
-
850
-
Table Travel (Y) (mm):
-
500
-
Dimension(L*W*H):
-
2750*2285*2180mm
-
Weight (T):
-
5.5 T
-
Range of Spindle Speed(r.p.m):
-
6000 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
7.5
-
Max. Table Load(kg):
-
600 kg
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
STSK
-
Marketing Type:
-
Hot Product 2024
|

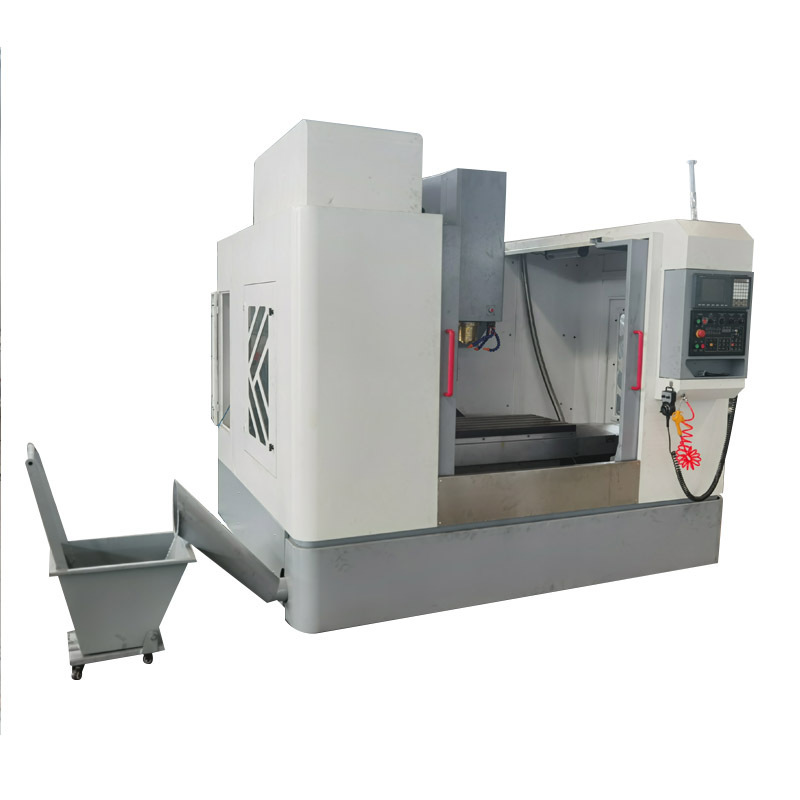

Main parameters of VMC850
|
|
|
|
technical parameter
|
VMC850
|
|
|
Workbench size
|
500×1000mm
|
|
|
X-axis * Y-axis * Z-axis
|
850mm*500mm*550mm
|
|
|
Spindle speed
|
6000（8000）rpm
|
|
|
Knife handle form
|
BT40/￠150
|
|
|
Feed rate
|
0-16000mm/min
|
|
|
T-shaped groove (width * spacing)
|
3*18mm*150mm
|
|
|
Distance from spindle end to workbench
|
105-655mm
|
|
|
Distance from spindle center to column
|
550mm
|
|
|
Maximum load capacity of workbench
|
600kg
|
|
|
Minimum setting unit
|
0.001mm
|
|
|
Repetitive positioning accuracy
|
±0.005mm
|
|
|
positioning accuracy
|
±0.01mm
|
|
|
Main motor
|
7.5kw
|
|
|
X. Y, Z motor torque
|
15、15、23NM
|
|
|
Tool magazine
|
24
|
|
|
Air source pressure
|
4-6kgf/cm2
|
|
|
Machine tool dimensions
|
2750×2285×2180mm
|
|
|
weight
|
5500kg
|
|
TOOL POST/ TURRET
GUIDE RAIL
CNC SYSTEM
Optional :Siemens, Fanuc,Syntec, Mitsubishi and others.
1. Can you provide design customization service?
Yes, we support ODM/OEM, and can design and customize exclusive models according to your needs.
2. How to choose the most suitable machine?
A: Please tell me your specification, we can choose the best model for you, you can also send us the product drawing, we will choose the most suitable machine for you.
3. What is your payment terms?
A: 30% down payment after the contract, 70% payment before shipment, can be discussed according to your situation.
4: Where is our factory located?
A: Our factory is located in Tengzhou City, Zaozhuang, China, zip code 277500. Warmly welcome you to visit us.
5. What is your delivery time?
Delivery depends on different machines with different configurations. Please contact us to confirm availability.
