Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1840*1040*2.5mm
-
Panel Efficiency:
-
21.8%
-
Keyword:
-
Flexiable Solar Panel
-
Power range:
-
360~385W
-
Installation Module Dimension:
-
1840*1040*1.7*/2.5mm
-
Actual Module Dimension:
-
1763*1001mm
-
Weight:
-
4.9/6.3kg
-
Weight per unit area:
-
2.98kg/㎡
-
Bending radius:
-
0.3m
-
Cell (quantity/material):
-
126(21x6)/Mono/Half-cell
-
Max. series fuse rating:
-
18A
-
Operating temperature range:
-
-40C~+85°C
Quick Details
-
Cell size:
-
166mm (half cut)
-
Brand Name:
-
DHC
-
Model Number:
-
ES-F365
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1840*1040*2.5mm
-
Panel Efficiency:
-
21.8%
-
Keyword:
-
Flexiable Solar Panel
-
Power range:
-
360~385W
-
Installation Module Dimension:
-
1840*1040*1.7*/2.5mm
-
Actual Module Dimension:
-
1763*1001mm
-
Weight:
-
4.9/6.3kg
-
Weight per unit area:
-
2.98kg/㎡
-
Bending radius:
-
0.3m
-
Cell (quantity/material):
-
126(21x6)/Mono/Half-cell
-
Max. series fuse rating:
-
18A
-
Operating temperature range:
-
-40C~+85°C
Product Description
Light 385w 520w flexible pv module bipv solar roof integrated 300w solar panels for boats
This flexible photovoltaic panel is specifically designed for distributed photovoltaic, module efficiency up to21.8%. The weight of
flexible solar module
is only 30% of conventional glass solar module and the installation efficiency is increased by 60%, which effectively solved the load bearing problems of the roof top.
Technical Parameter
|
Electrical Characteristics at Standard Test Conditions(STC)
|
|
|
|
|
|
|||||
|
Model
|
ES-F365
|
ES-F370
|
ES-F375
|
ES-F380
|
ES-F385
|
|||||
|
Max-Power(Pm)
|
365w
|
370w
|
375w
|
380w
|
385w
|
|||||
|
Power Tolerance
|
0~+5w
|
|
|
|
|
|||||
|
Max-Power Voltage(Vm)
|
34.9V
|
35.1V
|
35.3V
|
35.5V
|
35.7V
|
|||||
|
Max-Power Current(lm)
|
10.46A
|
10.54A
|
10.62A
|
10.70A
|
10.78A
|
|||||
|
Open-Circuit Voltage(Voc)
|
42.4V
|
42.6V
|
42.8V
|
43V
|
43.2V
|
|||||
|
Short-Circuit Current(lsc)
|
11.09A
|
11.16A
|
11.23A
|
11.3A
|
11.35A
|
|||||
|
Module Efficiency
|
20.7%
|
21%
|
21.2%
|
21.5%
|
21.8%
|
|||||
|
STC: AM=1.5, Irradiation 1000W/m2, Module Temperature 25°C
|
|
|
|
|
|
|||||
|
Installation Module Dimension
|
1840*1040*1.7*/2.5mm
|
|
Actual Module Dimension
|
1763*1001mm
|
|
Weight
|
4.9/6.3kg
|
|
Cell (quantity/material/type/dimensions)
|
126(21x6)/Mono/Half-cell
|
|
Bending radius
|
0.3m
|

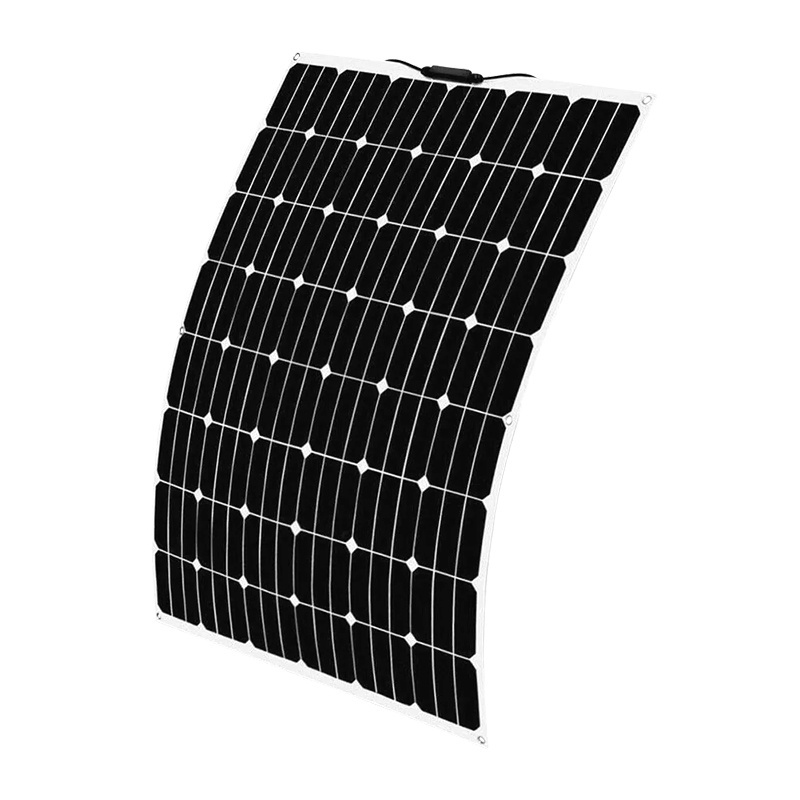

Light 385w 520w flexible pv module bipv solar roof integrated 300w solar panels for boats
F
lexible solar module
can be bent into curved or irregular shapes at will. It can be installed on the top of streamlined cars, the cabin surfaces of sailboats, racing boats, and motorboats, as well as on the roofs and exterior walls of buildings such as houses, in order to fully utilize the abundant solar energy and convert it into electricity.
Details Images
F
lexible solar panels
- Light, Thin Design
4.9kg weight, 1.7mm thickness, match various requirements for low-load projects.
- Ultra Flexible
Ultra-thin silicon wafers with advanced organic polymer encapsulation materials, minimum bending radius reach0.30m, fit all kinds of curved surface perfectly.
- High Efficiency and Reliability
Busbar-free design increases cell conversion efficiency, more power output can be achieved at low irradiance conditions.
- Customizable
Customized design for different scenarios.
- Convenient Installation
Easy installation and convenient transportation with lower cost.
- Lead-free
Eco-friendly PV design achieves lead-free MWT module without soldering materials.
Project Cases
Project Case Display
DHC provides free one-stop design and Integration schemes for smart photovoltaic systems and wind-solar hybrid power systems. Our company's products sold worldwide. The company has won the unanimous recognition of consumers with satisfactory quality and perfect after-sales service. We has a professional team, which can help you solve questions.
