Quick Details
-
Power:
-
4K-200K*2
-
Dimension(L*W*H):
-
5700*2980*4190
-
Weight:
-
15 kg
-
The Machines Classification:
-
vsi 7611 sand making machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Max Feeding (mm):
-
600
-
Test&Installation:
-
Professional Engineer Assigned
-
Color:
-
Iron Grey
-
Spare Parts Supply:
-
Will Supply Any Time
-
Price:
-
free provide
-
Project case:
-
free provide
-
keyword:
-
sand making machine suppliers
-
Manufacturer:
-
Yes
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Zenith
-
Voltage:
-
380v
-
Power:
-
4K-200K*2
-
Dimension(L*W*H):
-
5700*2980*4190
-
Weight:
-
15 kg
-
The Machines Classification:
-
vsi 7611 sand making machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Max Feeding (mm):
-
600
-
Test&Installation:
-
Professional Engineer Assigned
-
Color:
-
Iron Grey
-
Spare Parts Supply:
-
Will Supply Any Time
-
Price:
-
free provide
-
Project case:
-
free provide
-
keyword:
-
sand making machine suppliers
-
Manufacturer:
-
Yes
With over 30 years of experience,ZENITH ,We had already build many mining projects in China & Overseas.
Come and inquire for free design solutions!
vsi 7611 sand making machine sand making machine suppliers

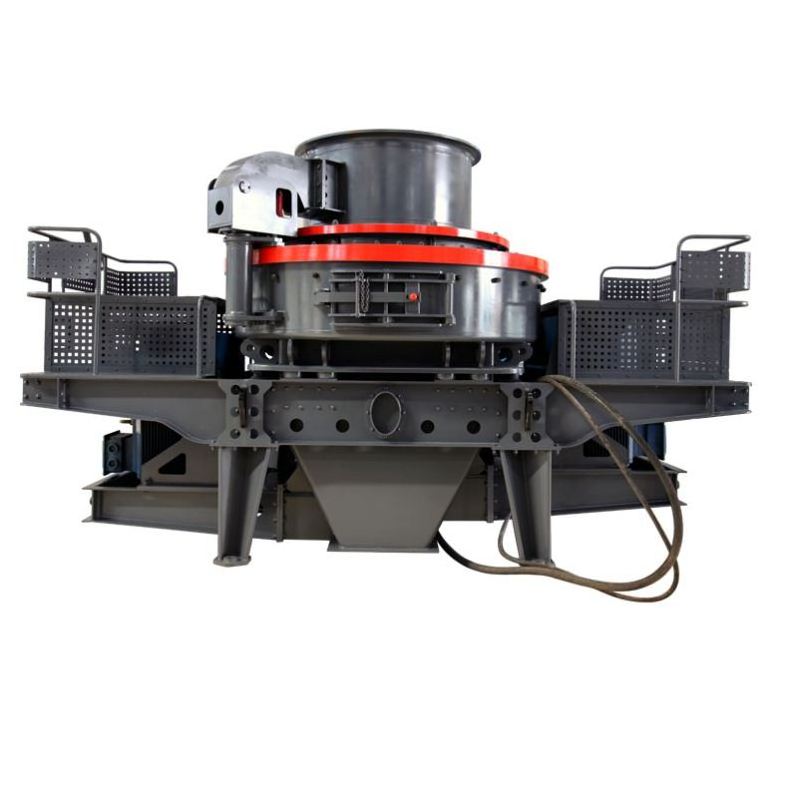

VSI6X
Lower maintenance costs, longer service life of wearing parts, bigger capacity
On account of the increasing demand for large-scale, intensification, energy saving and environment protection, and high-quality machine-made sand in the sand market, ZENITH further optimized the structure and function of the impact crusher, on the basis of thousands of impact crusher sand-shaping applications technology, and introduced a new generation of high-efficiency and low-cost sand-shaping equipment---VSI6X vsi 7611 sand making machine sand making machine suppliers .
Materials:Granite, quartz, basalt, pebble, limestone, dolomite, etc.
Product Advantages
To meet crushing demands of different users, VSI6X sand making machine was optimized on its structure of crushing cavity, and configured “rock on rock” and “rock on iron” crushing modes.
To ensure overall performances, VSI6X sand maker is optimized on some key parts. Besides, various national patent technologies ensure high efficiency yet low cost in crushing operation.
The service life of some key wearing parts is prolonged by 30%-200% compared with the traditional equipment in the same usage conditions.
VSI6X vsi 7611 sand making machine sand making machine suppliers fully considers the safety and reliability of the equipment, and adopts a more stable and reliable dual motor drive and automatic oil lubrication.
Working Principle of mobile sand making crushing plant
vsi 7611 sand making machine sand making machine suppliers has two feed modes – “feed at center” and “feed at center & sides”. As for “feed at center”, materials at the feed hopper firstly pass through the central hole into the high-speed spinning rotor. Next, materials hit the surrounding vortex material linerinside the vortex chamber together. Finally, finished products are discharged from the bottom discharge opening.
As for “feed at center & sides”, after materials pass through the circular hole, they are divided into two parts by the distributing tray. One part enter the high-speed rotating impeller while the other part fall from all sides of the tray.
Technical Specs
vsi 7611 sand making machine sand making machine suppliers
| Model | Sanding making | Reshaping | Sanding making | Reshaping | Speed (r/min) | Power (kW) | Overall dimension (mm) |
| Maximum feeding size (mm) | Throughput (t/h) | ||||||
| VSI6X1263 | 50 | 60 | 454-486 | 545-583 | 900-1200 | 315×2 | 5700×2980×4190 |
| VSI6X1150 | 45 | 55 | 344-368 | 413-442 | 1000-1300 | 250×2 | 5500×2750×3950 |
| VSI6X1040 | 40 | 50 | 264-283 | 317-342 | 1100-1400 | 200×2 | 4880×2560×3725 |
| VSI6X9026 | 35 | 45 | 167-179 | 200-215 | 1200-1500 | 132×2 | 4200×2400×3150 |
| VSI6X8015 | 30 | 40 | 109-117 | 131-140 | 1300-1700 | 90×2 | 4100×2300×2750 |
300TPH Potassium Sodium & Feldspar Sand Making Plant
Material: potassium sodium & feldspar
Application: for commercial concrete mixing plant
Equipment:
PEW860 European Hydraulic Jaw Crusher HST315 Single Cylinder Hydraulic Cone Crusher VSI6X1150 Sand Making Machine S5X3072-2 Vibrating Screen
Customer Evaluation
ZENITH's crusher was finally chosen after careful comparisons. Since operation, it has been high-yield and stable, attracting many customers nearby.
Project Introduction
The final sand of this project is supplied to the commercial mixing station. Due to the low price of raw materials for producing ceramics with potassium sodium feldspar, the demand is gradually reduced and the market is depressed, so the customer turns to the production of manufactured potassium sodium feldspar sand. Now it has been put into production, the quality of finished product got the highest profitability. Currently it produces fine product of 300t/h.
