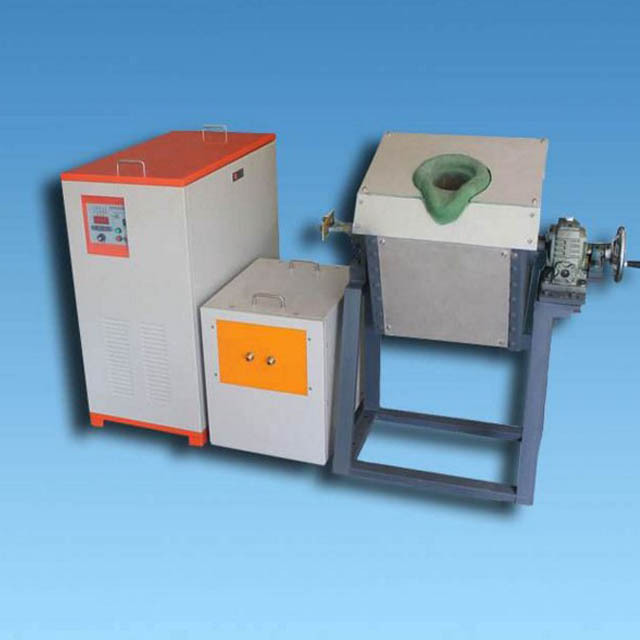

High Quality Copper / Iron / Gold Induction Melting Furnace For Metal Melting

Product Application of Metal Melting Furnance:

This metal melting furnance is the device converting three phase power current into single phase intermediate frequency current and enabling metal to produce eddy current loss through electromagnetic field induction to achieve heating and melting and is applicable to melting,heating or holding of steel,copper,iron,aluminum,zinc,tin,nickel silver and other ferrous or nonferrous metal and alloy material,as well as heating treatment prior to forging,sintering and tube-bending forming in casting and melting industries.

Main Features of Metal Melting Furnance:

1.Using a zero-voltage scanning soft-start mode, in any case may at any time to start or stop, will not have impact on power supply.

2. Fast smelting with low production cost; low-pollution and environment-friendly ;

3. A direct effect from the cold furnace melting. Dissolved material will be fully dumped clean. Molten material easy to replace.

4. Power adjustment flexibility. Be able to continuously smooth adjustment. Temperature uniformity can be easily controlled. Oxidation burning less. Metal components evenly.

5. Furnace shell using cast aluminum or steel structure, small footprint; furnace flip dump convenience, according to the need to use electric, manual, hydraulic tilting furnace and other means.

6. Designed to automatically adjust angle of inverter circuit that can automatically adjust the load impedance match, without adjustment of capacitance compensation and always run the equipment in good working condition; power supply system diagnostic error function, easy maintenance.

How to choose a suitable metal melting furnance?

1 Melting time and power consumption/ton is important to equipment power, raw material shape and weight, operator’s skill level and other elements;

2 Power parameters shall be subject to steel melting; lower power is required by melting of copper, aluminum, zinc or other material with low melting point; please consult Hengyang Technical Department for specific data;

3 Configuration: an intermediate frequency power supply, a capacitor cabinet, an overturn control cabinet, body, two sets of reduction boxes and supports, two water cooling cables, etc.;

4 The above data is of standard model. We also provide customized non-standard products with different power or melting speed.

Metal melting furnance performance

.

Metal melting furnance performance

Metal melting furnance performance

Metal melting furnance performance

For order of metal melting furnance:

Please send us more information about your project as following,in order to let us recommend you the right furnace for your project:

1.The metal type you want to heat.

2.The dimension of the metal you want to heat.

3.Heating rate or speed if you request.

4.Available power (KW or MW) limit for the melting furnace.

5.Primary Voltage (KV), Industrial Voltage (V), and Working frequency (Hz) in your project site.

6. Project Location: Country and City.

We would like to give you our proposal immediately after getting your details. Sincerely welcome you to come and visit our plant.
