Cheap Diesel Powered Fence Post Pounder Guardrail Pile Driver

Cheap Diesel Powered Fence Post Pounder Guardrail Pile Driver

FOB Reference Price: Get Latest Price

≥1 Sets

US $23000

≥8 Sets

US $15000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: HW

Weight:: 4500kg

Dimension(L*W*H):: 4100*2000*2200

Name:: Piling Machine

Usage:: Pressing Pile

Drill diameter:: 0-300 Mm

Drill depth:: 7m

Working pressure:: 16-20MPA

rill rod diameters:: 70 mm

Drill rod weight:: 19KGS

Hydraulic hammer weight:: 230 KGS

Impacting frequency:: 500-900 bpm

Keywords:: Hydraulic Pressusre Pile Driver

Local Service Location:: Viet Nam

After-sales Service Provided:: Video technical support, Online support, Free spare parts, Field installation, commissioning and training

Certification:: ISO

Quick Details

Efficiency:: 200pics per day

Piling Speed(m/min):: 1m/min

Place of Origin:: Shandong, China

Brand Name:: HW

Weight:: 4500kg

Dimension(L*W*H):: 4100*2000*2200

Name:: Piling Machine

Usage:: Pressing Pile

Drill diameter:: 0-300 Mm

Drill depth:: 7m

Working pressure:: 16-20MPA

rill rod diameters:: 70 mm

Drill rod weight:: 19KGS

Hydraulic hammer weight:: 230 KGS

Impacting frequency:: 500-900 bpm

Keywords:: Hydraulic Pressusre Pile Driver

Local Service Location:: Viet Nam

After-sales Service Provided:: Video technical support, Online support, Free spare parts, Field installation, commissioning and training

Certification:: ISO

Product Description

3m/4m/6m hydraulic rotary press piling machine is multifunctional pile driving machine for mine, with 360 degrees of freedom to rotate, multi angle pile function. The machine with diesel powered, hydraulic mechanical transmission, with high efficiency, convenient shift, multi angle multi angle pile, high precision, durable, time-saving, labor-saving and, especially for engineering construction in the field.

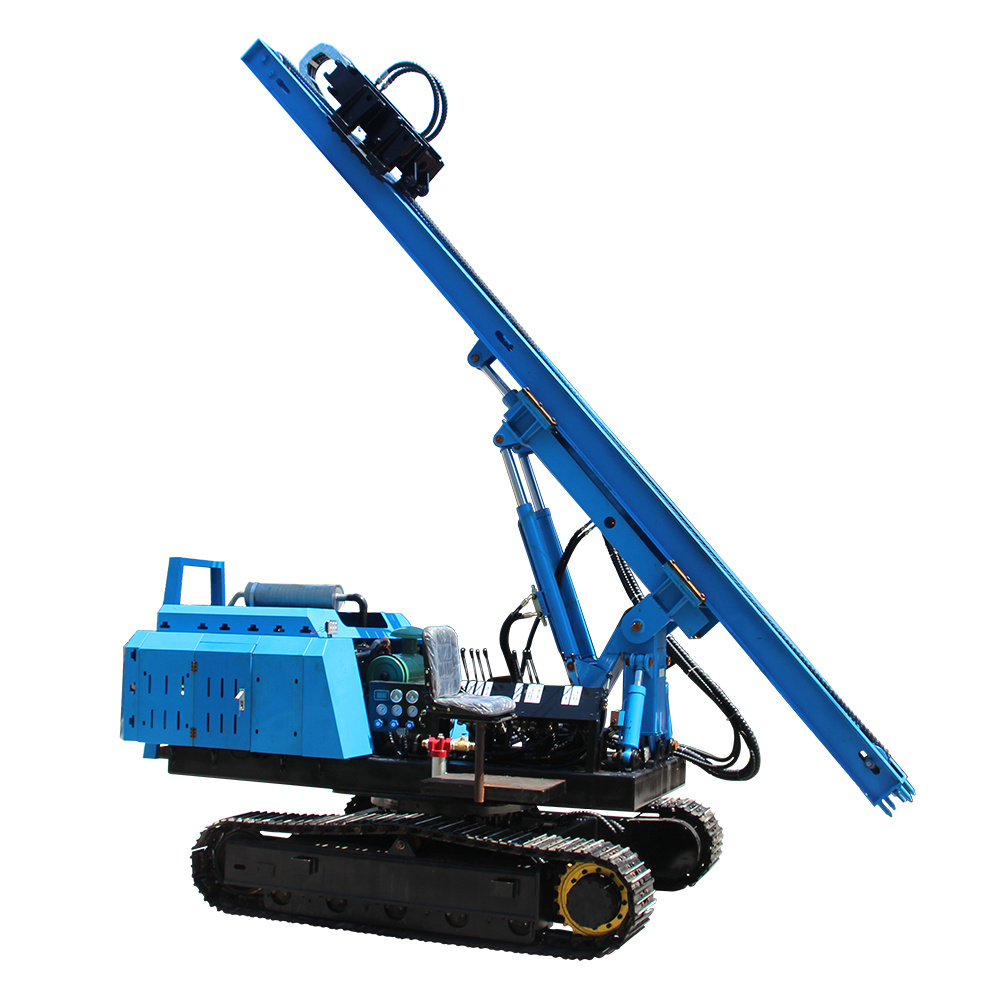

Cheap Diesel Powered Fence Post Pounder Guardrail Pile Driver
Full hydraulic rotary press piling machine by R & D engineers and field service member composed of hypercoagulable cohesion, high-quality elite team of engineers, according to the situation of equipment used in various kinds of working conditions of practice, through constant revision and improvement to under various complex site and all kinds of soil in a state of the equipment. Can be adapted to round pile, square pile, rectangular pile and various special-shaped pile.
Cheap Diesel Powered Fence Post Pounder Guardrail Pile Driver
QC coupled with strict detection means for the product to provide first-class quality assurance, piling machine is now is the national quality the first, market share rate of the first brand.

Model	HWL600R	Remark
Hammer impact	780J	Joule,we can make more powrful impact as your demand
Pile length	0-6000	mm
Duplex gear pump pressure	20	Mpa
Duplex gear pump displacement	40	ml/r
Hydraulic system pressure	20	Mpa
Main valve flow	120	L/Min
Overall Machine weight	6	T
Diesel engine power	80	KW
Rated Speed	2400	R/min
Starting Voltage	24	V
Rotation angle	360	°
Rotation semi diameter(rotating shaft to Pod distance)	1925	mm
Effective press pile stroke	0.-3000	mm
Dimension(LXWXH)	6200×2200×2850	mm
Track shoe	350	mm
Walking motor total displacement	1575	ml/m
Walking motor rated pressure	18	Mpa
Walking motor output torque	4300	N.M
Walking motor rotate speed	50	r/min
Press Pile Diameter	0-600	mm
Drilling Depth	0-6000	mm
Operating Speed (m/min)	1.5	90s/per pile
Number of impacts / strokes per 1 minute	900	times/min
Maximum lengh of Piles to be rammed	6	M
Walking speed	5-10	Km/hr
Gradeability	0-35	°
Oil tank capacity	200	L
Hydraulic tank capacity (L)	500	L
