Quick Details
-
Brand Name:
-
SKZ
-
Model Number:
-
SKZ1050E-HCN
-
Power:
-
Battery
-
Material:
-
Metal+Plastic
-
Detecting Gas:
-
HCN
-
Measure Range:
-
0-10.000\50\100ppm
-
Display:
-
3.5-inch Color Display
-
Operating language:
-
Chinese and English
-
Alarm Type:
-
Sound+Light Alarm
-
Battery:
-
Lithium Rechargeable Battery
-
Certificate:
-
CE\ISO9001\CNEX
-
Degree of protection:
-
IP66
-
Weight:
-
400g
Quick Details
-
Type:
-
PORTABLE GAS DETECTOR
-
Warranty:
-
1 year, 1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SKZ
-
Model Number:
-
SKZ1050E-HCN
-
Power:
-
Battery
-
Material:
-
Metal+Plastic
-
Detecting Gas:
-
HCN
-
Measure Range:
-
0-10.000\50\100ppm
-
Display:
-
3.5-inch Color Display
-
Operating language:
-
Chinese and English
-
Alarm Type:
-
Sound+Light Alarm
-
Battery:
-
Lithium Rechargeable Battery
-
Certificate:
-
CE\ISO9001\CNEX
-
Degree of protection:
-
IP66
-
Weight:
-
400g

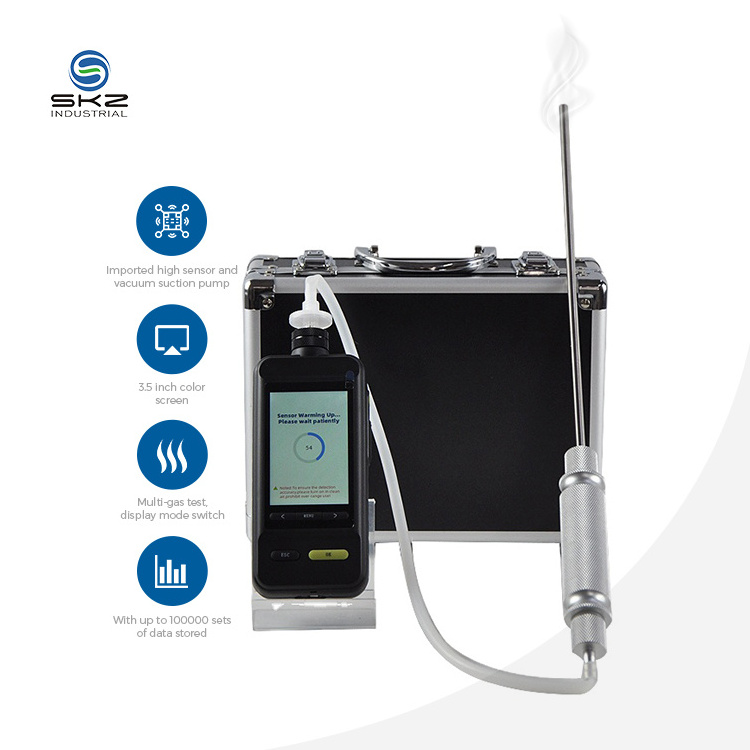

SKZ1050E Flashlight function 0-10.000ppm HCN gas testing equipment special for smelting
Feature:
★3.5 inch high-definition color screen
* The outer casing is made of aviation wear-resistant material
* Adopt 3.5-inch high-definition color screen, high resolution, wide viewing angle
★Flashlight function
Exclusive design - a flashlight function that illuminates the darkness for certain workplaces and make Underground work easier
★Multi-gas test, display mode switch (used for multi-gas)
★3.5 inch high-definition color screen
* The outer casing is made of aviation wear-resistant material
* Adopt 3.5-inch high-definition color screen, high resolution, wide viewing angle
★Flashlight function
Exclusive design - a flashlight function that illuminates the darkness for certain workplaces and make Underground work easier
★Multi-gas test, display mode switch (used for multi-gas)
It can simultaneously detect up to 1-4 gas concentrations
Data show that the gas concentration, gas concentration curve in real time display mode can be arbitrarily switched
★Flexible and adjustable pumping system
Built-in gas sampling pump, the pump's flow rate is adjustable in ten steps, which can customize the gas detection flow for
different detection environments.
★Multi-layer filter
Three-layer filter unit is built in to efficiently filter oil, water, dust and other impurities. Even in the most demanding
industrial environment, the test results can still be trusted.
★ Multiple gas display units
Multiple gas display units can be switched, converted the concentration value automatically
★ Powerful, more user-friendly operation
* Withtimed shutdown function, intelligent settings
* Sensoroverload automatic protection
* USBcharging interface design can be charged anytime, anywhere
* One-clickscreen capture function, save test data and curve in picture form
★ Optional function
1). Optional fall alarm function to ensure the safety of underground workers is more secure
Data show that the gas concentration, gas concentration curve in real time display mode can be arbitrarily switched
★Flexible and adjustable pumping system
Built-in gas sampling pump, the pump's flow rate is adjustable in ten steps, which can customize the gas detection flow for
different detection environments.
★Multi-layer filter
Three-layer filter unit is built in to efficiently filter oil, water, dust and other impurities. Even in the most demanding
industrial environment, the test results can still be trusted.
★ Multiple gas display units
Multiple gas display units can be switched, converted the concentration value automatically
★ Powerful, more user-friendly operation
* Withtimed shutdown function, intelligent settings
* Sensoroverload automatic protection
* USBcharging interface design can be charged anytime, anywhere
* One-clickscreen capture function, save test data and curve in picture form
★ Optional function
1). Optional fall alarm function to ensure the safety of underground workers is more secure
2). Optional 8G large-capacity memory card, support one-click download function, if with 4 kinds of gases, Storage interval time is 5s, can be used for 7 years! And this function is standard provided if the detector with optional air sampling rod
3). Optional PC storage software download, analysis and storage data, with EXCEL format 4). Optional external Bluetooth printer
3). Optional PC storage software download, analysis and storage data, with EXCEL format 4). Optional external Bluetooth printer
|
Gas Detected
|
HCN
|
|
|
|
Detection principle
|
Electrochemical principle
|
|
|
|
Measure Range
|
0-10.000\50\100ppm
|
|
|
|
Resolution
|
0.001ppm
|
|
|
|
Sensor life
|
2 years
|
|
|
|
Precision
|
2%FS
|
|
|
|
Sampling method
|
Built-in stable flow pump, flow range: 0-500 ML/Min
|
|
|
|
Modular structure
|
Can detect up to 1-4 kinds of gases
|
|
|
|
Concentration unit
|
ppm, mg/m3, %VOL, %LEL, can be switched by one button
|
|
|
|
Display
|
3.5-inch color display, resolution 320*480
|
|
|
|
Display mode
|
Multiple display modes select-able:multi-channel data mode,
multi-curve mode,single channel + single curve mode |
|
|
|
Data storage
|
Standard 16M capacity storage function, can save upto 100000 groups of data.
Can be directly connected to the computer through USB, quickly download stored data , EXCEL format |
|
|
|
Wireless transmission
|
(optional) Bluetooth (with printer), ZigBee, built-in DTU wireless module (optional)
|
|
|
|
Print
|
Built-in printer or external Bluetooth printer (optional with
extra charge) |
|
|
|
Operating language
|
Chinese and English
|
|
|
|
Battery capacity
|
3800mA rechargeable
|
|
|
|
Charging interface
|
USB charging interface, 5V/2A standard charger
|
|
|
|
Filter device
|
Equipped with a multi-layer filter to efficiently filter oil, water
and dust. |
|
|
|
Wireless network
|
Bluetooth (with print function), ZigBee, Lora+ (relay DTU),
DTU (optional with extra charge) |
|
|
|
Network frequency
|
|
Lora (470M), DTU (2.4G) (optional with extra charge)
|
|
|
Wireless trans. distance
|
|
Lora (1.6 km), DTU (unlimited) (optional with extra charge)
|
|
|
Response Time
|
|
≤ 5S
|
|
|
Repeatability
|
|
≤ ± 1%
|
|
|
Zero shift
|
|
≤ ± 1% (F.S / Year)
|
|
|
Operating temperature
|
|
-20°C-50°C
(optional flue gas sampling probe, up to 600°C , 1200°C smoke concentration) |
|
|
Working humidity
|
|
0-95% RH (no condensation) (high humidity can be
selected with filter drying device) |
|
|
Explosion-Proof
|
|
Exic II CT3, GC
|
|
|
Alarm mode
|
|
Buzzer, LED and alarm status prompt on the display, fault
alarm, pump abnormal alarm, battery low battery alarm, shutdown alarm, fall alarm (optional with extra charge) |
|
|
Dimensions
|
|
270*75*41mm
|
|
|
Recovery Time
|
|
≤ 10S
|
|
|
Linearity error
|
|
≤ ± 1%
|
|
|
Degree of protection
|
|
IP66
|
|
|
Weight
|
|
400g
|
|
|
Standard accessories
|
|
Manual, warranty card, power charger, carrying case,
water and oil filter, data cable |
|
|
Optional accessories
|
|
Bluetooth printer, pressure sensor, high temperature rod,
Metal extension rod, Bendable rod , Silicone hose, dry filter device, PC download software |
|
