Quick Details
-
Place of Origin:
-
Shandong, China
-
Panel Dimensions:
-
1580x680x2mm
-
Panel Efficiency:
-
25%
-
Module:
-

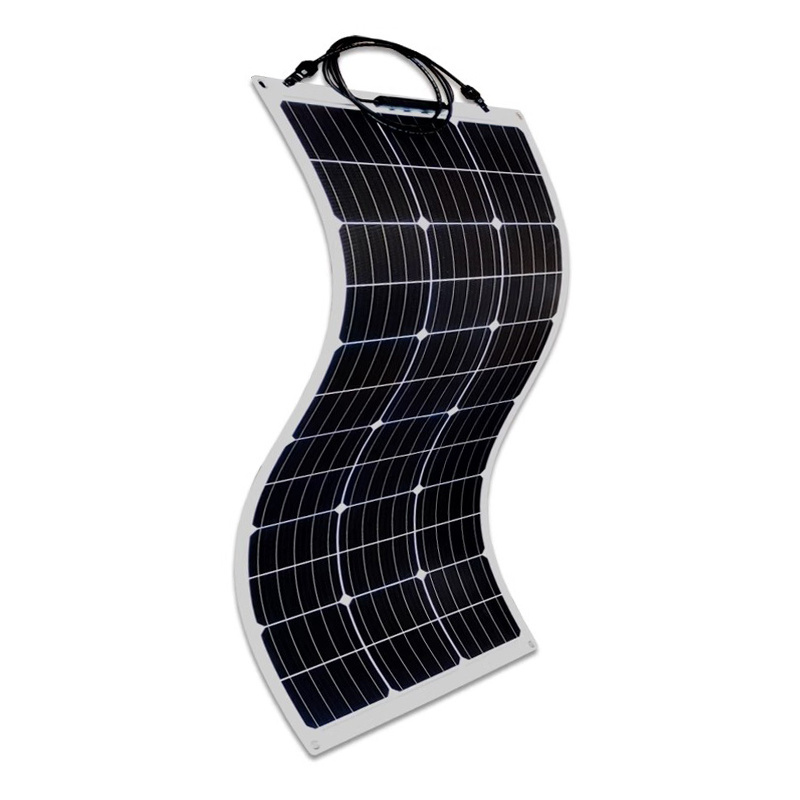

Flexible Solar Panel
-
Weight:
-
2-4.5kg
-
power:
-
18W-300W/customized
-
Power tolerance:
-
0/+3
-
OEM Order:
-
Acceptable
-
Junction Box Type:
-
IP65 Waterproof
-
Cell Type:
-
Mono/Poly
-
Application:
-
Solar System
-
Keyword:
-
Monocrystalin Solar Panel
Quick Details
-
Cell size:
-
156.75mmx156.75mm
-
Brand Name:
-
Amiba
-
Model Number:
-
AMB150M-36
-
Place of Origin:
-
Shandong, China
-
Panel Dimensions:
-
1580x680x2mm
-
Panel Efficiency:
-
25%
-
Module:
-
Flexible Solar Panel
-
Weight:
-
2-4.5kg
-
power:
-
18W-300W/customized
-
Power tolerance:
-
0/+3
-
OEM Order:
-
Acceptable
-
Junction Box Type:
-
IP65 Waterproof
-
Cell Type:
-
Mono/Poly
-
Application:
-
Solar System
-
Keyword:
-
Monocrystalin Solar Panel
Products Description
|
Model
|
AMB-(XXX)W-B (XXX)=Pmax/W
|
|
|
|
|
|
|||||
|
Maximum Power(Pmax/W)
|
100
|
150
|
160
|
200
|
250
|
300
|
|||||
|
Open-circuit Voltage (Voc/V)
|
21.6
|
32.14
|
21.6
|
43.4
|
33.33
|
39.3
|
|||||
|
Short-circuit Current (Isc/A)
|
6.1
|
6.1
|
9.7
|
6.1
|
9.9
|
10.08
|
|||||
|
Maximum Power Voltage(Vmp/V)
|
18
|
26.8
|
18
|
36.2
|
27.8
|
32.75
|
|||||
|
Maximum Power Current (Imp/A)
|
5.6
|
5.6
|
8.9
|
5.5
|
9
|
9.16
|
|||||
|
Solar Panel Efficiency(%)
|
19.8-22.5%
|
|
|
|
|
|
|||||
|
Power Tolerance(W)
|
0~+5W
|
|
|
|
|
|
|||||
|
Standard Test Environment
|
Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5
|
|
|
|
|
|
|||||
|
Model
|
AMB-(XXX)W-B (XXX)=Pmax/W
|
|
|
|
|||
|
Maximum Power(Pmax/W)
|
350
|
400
|
500
|
Customizable
|
|||
|
Open-circuit Voltage (Voc/V)
|
66.67
|
68.57
|
81.1
|
/
|
|||
|
Short-circuit Current (Isc/A)
|
6.93
|
7.7
|
8.14
|
/
|
|||
|
Maximum Power Voltage(Vmp/V)
|
55.56
|
57.14
|
67.57
|
/
|
|||
|
Maximum Power Current (Imp/A)
|
6.3
|
7
|
7.4
|
/
|
|||
|
Solar Panel Efficiency(%)
|
19.8-22.5%
|
19.8-22.5%
|
19.8-22.5%
|
19.8-22.5%
|
|||
|
Power Tolerance(W)
|
0~+5W
|
|
|
|
|||
|
Standard Test Environment
|
Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5
|
|
|
|
|||
FAQ
Q1:
What are your main products?
We have many series of solar products, mainly producing solar systems, solar panels, solar inverters, powerwall, solar lithium ion batteries and solar mounting systems, and all related solar accessories.
Q2:Can the battery be connect in parallel?
Yes,support in parallel for more than 16pcs.
Q3: Can you print our company logo on the nameplate and packaging?
Q2:Can the battery be connect in parallel?
Yes,support in parallel for more than 16pcs.
Q3: Can you print our company logo on the nameplate and packaging?
Yes, we can do it according to your design.
Q4: Can you support OEM and field installation?
Q4: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, full support and assistance services.
Q5: How does your factory conduct quality control?
Q5: How does your factory conduct quality control?
Quality first. We have a professional QC team to strictly control the quality. Only when the quality meets the requirements, will it be packaged out of the factory.
Q6: What are your strengths in solar systems?
Q6: What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.
