The whole test system is widely used in the detection of low resistance, short circuit, open circuit and various high resistance faults of aluminum core, copper core power cables, high frequency coaxial cables and local telephone cables with different sections below 35KV.

Performance characteristics

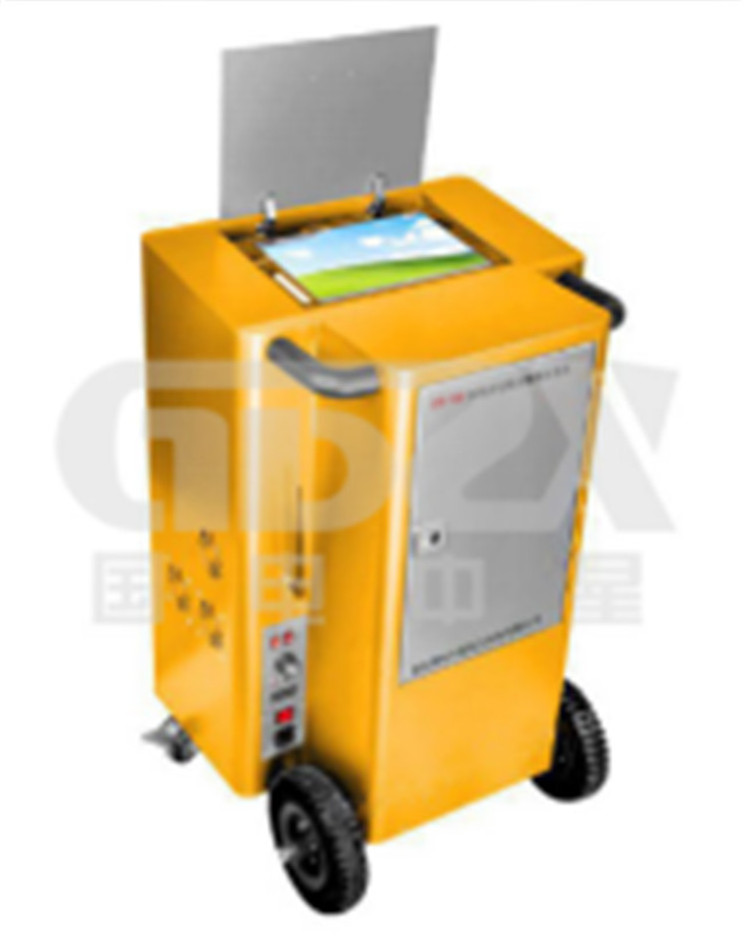

1. Completely integrated trolley structure

2. Simple wiring

3. Fully automatic measuring cable length and fault distance, 12 waveforms comparing in 1 screen.

4. Supporting remote test service

5. H igh voltage remote control, safety auto discharge.

6. Large screen capacitive touch screen-Windows system.

7. Built-in charging power supply, supporting 4 hours, continuous high voltage puncture operation.

8. Fully sealed ball gap - discharge voltage in the range of 0-40KV adjustable, adjustable accuracy of 1KV.

9. Personal security - wireless communication between high-voltage equipment and low-voltage equipment.

10. A pplicable to both High and low voltage cable faults

11. R eliable solid state drives -- mass solid state drives support hundreds of millions of waveform storage.

12. S mall test error relative error is within 0.5%.

13. FPGA + NAD parallel sampling technology to achieve up to 450MHz sampling frequency.

14. B uilt in 10W auto output impedance matching path transmitter.

Technical indicators

1. Pre-locating methods: low voltage pulse method, high voltage flashing method, arc reflection method.

2. D isplay mode: large screen capacitive touch screen

3. O peration mode: all-weather touch screen.

4. Memory: 20G solid state disk

5. S ampling frequency: 6.25MHz, 12.5MHz, 25MHz, 50MHz, 100MHz, 450 MHz (adaptive pulse width).

6. T est longest cable: 100km

7. Minimum test cable (blind area): non

8. T est error: the relative error of the system is + 0.5%.

9. P recise point error: + 0.2m

10. D ischarge voltage threshold range: 0~40KV, adjustment accuracy: 1KV

11. P ower supply mode: built-in large capacity battery or 220V AC power supply.

12. S tandby time: continuous use for about 4 hours.

13. C ommunication interface: two USB 4 interface

14. R emote service support: LAN Internet access and 4G wireless internet access.

15. Working environment temperature: - 35 ℃ ~ + 45 ℃, < 85%RH (25 ℃ ); altitude 2000 meters.

16. O utline size: 580mm X 540mm X 900mm

17. W eight: 40Kg
