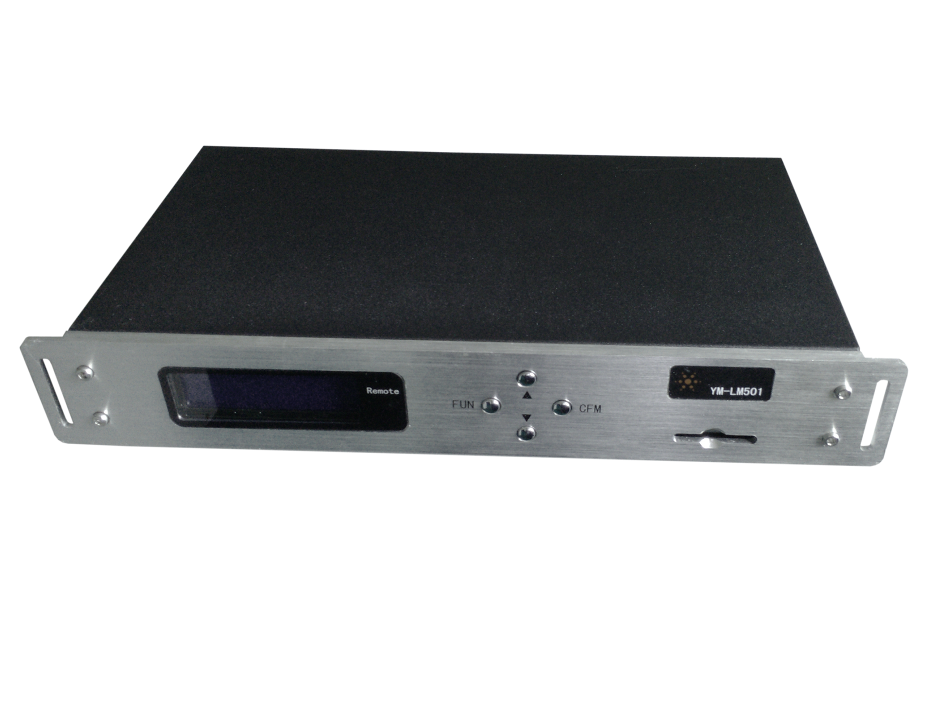

offiline online YM LM501 DMX SPI Master controller RGB pixel Ethernet led controller

1,Features

1) Ethernet connection LED controller,

2) Control mode: on-line control / off control,
3) One output port can control 512 pixels,
4) 4 output ports,
5) a cascade control port,

6) Playback speed: the maximum speed of not less than 25 frames / sec,
7) Power supply: AC110- 220V ± 10V 50Hz,
8) EMC design, with good anti-jamming capability,

9) control IC chips, single line : TM1804,TM1829, UCS1903, TLS3001, TLS3008, ws2811,

two lines : DMX512, P9813, LPD6803, LPD8806, SM16716, WS2801, MBI6021, MBI6024, MY9221

Sub-controller SVE4 of LM501

2, Connections

3, System Configuration

Minimum system configuration:
CPU: XM 266 Pentium; Memory: 64M; Space: 700M hard disk space .
Sound Card: Directx Sound compatible .
Graphics: Direct3D compatible (16Mb or more) .
Recommended configuration:
CPU: Pentium 400; Memory: 128Mb; Space: 700M hard disk space.
Sound Card: Directx Sound compatible.
Graphics: Direct3D compatible (32Mb or more).

4, Settings
4.1 Playback Speed Settings
Press FUN to enter playback speed setting menu;
Press CFM to enter edit mode;
Press up/down button to adjust the speed;
Press CFM to confirm the speed
Press FUN to return to the main interface .

4.2 Brightness adjustment
Press FUN →up button to enter the brightness setting menu;
Press CFM to enter the edit mode;
Press up/down button to adjust the brightness;
Press CFM to confirm;
Press FUN to return the main interface.

4.3 Clock Adjustment
Press FUN →up→up button to enter clock adjustment menu;
Press CFM to enter edit mode;
Press u p / down button to adjust the clock;
Press CFM to confirm
Press FUN to return to the main interface.

4.4 IP Address

IP addresses are consisted by 4 decimal digits (IP1.IP2.IP3.IP4), such as 192.168.1.1.

IP address is one of important parameters of the controller, it will be shown on the main interface after power-on;
Press FUN →up→up→up to enter IP address setting menu,the current IP address is shown in the screen
Press CFM to enter IP address1 edit mode;
Press up/down to adjust IP address1;
Press CFM to confirm IP address1, then enter IP address2 edit mode.
Press u p /down to adjust IP address2;
Press CFM to confirm IP address2, then enter IP address3 edit mode.
Press u p /down to adjust IP address3;
Press CFM to confirm IP address3, then enter IP address4 edit mode.
Press u p /down to adjust IP address4;
Press CFM to confirm IP address4,four IP addresses are shown in the screen;
Press FUN to return to the main interface.

4.5 MAC address
MAC address is consisted by six hexadecimal digits (MAC1-MAC2-MAC3-MAC4-MAC5-MAC6), such as :00-e0-b1-08-07-f3
Press FUN → up →up→up button to enter MAC address settin g, the current MAC address is shown on the screen;
Press CFM to enter MAC1 address edit mode;
Press u p /down to modify MAC1 address;
Press CFM to confirm MAC1 address,then enter MAC2 address edit mode;
Press u p /down to modify MAC2 address;
Press CFM to confirm MAC2 address,then enter MAC3 address edit mode;
Press u p /down to modify MAC3 address;
Press CFM to confirm MAC3 address,then enter MAC4 address edit mode;

Press u p /down to modify MAC4 address;
Press CFM to confirm MAC4 address,then enter MAC5 address edit mode;
Press u p /down to modify MAC5 address;
Press CFM to confirm MAC5 address,then enter MAC6 address edit mode;
Press FUN to return to the main interface.
