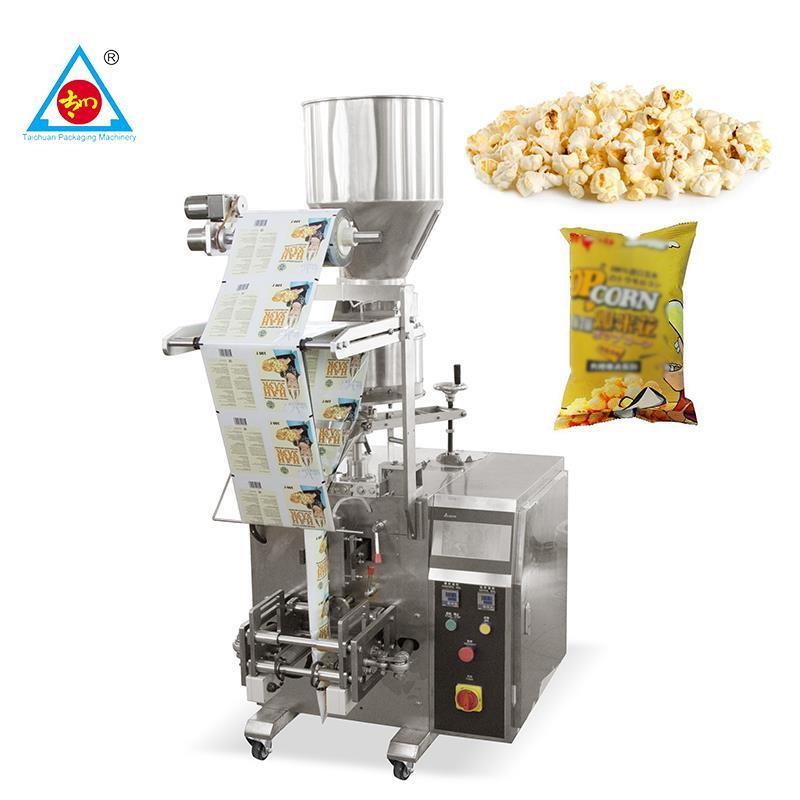

automatic Nuts Dry Fruit Banana Chips Peanut ball Candy small vertical Filling Packing Machine Popcorn Packaging Machines
automatic Nuts Dry Fruit Banana Chips Peanut ball Candy small vertical Filling Packing Machine Popcorn Packaging Machines
automatic Nuts Dry Fruit Banana Chips Peanut ball Candy small vertical Filling Packing Machine Popcorn Packaging Machines
automatic Nuts Dry Fruit Banana Chips Peanut ball Candy small vertical Filling Packing Machine Popcorn Packaging Machines
automatic Nuts Dry Fruit Banana Chips Peanut ball Candy small vertical Filling Packing Machine Popcorn Packaging Machines
automatic Nuts Dry Fruit Banana Chips Peanut ball Candy small vertical Filling Packing Machine Popcorn Packaging Machines
automatic Nuts Dry Fruit Banana Chips Peanut ball Candy small vertical Filling Packing Machine Popcorn Packaging Machines
automatic Nuts Dry Fruit Banana Chips Peanut ball Candy small vertical Filling Packing Machine Popcorn Packaging Machines

automatic Nuts Dry Fruit Banana Chips Peanut ball Candy small vertical Filling Packing Machine Popcorn Packaging Machines

FOB Reference Price: Get Latest Price
≥1 Sets
US $2500
≥2 Sets
US $2300
≥5 Sets
US $2100
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Weight (KG):
368
Voltage:
220V,50/60HZ,2.2KW
Place of Origin:
Guangdong, China
Brand Name:
Taichuan
Dimension(L*W*H):
(L)3771X(W)670X(H)1453mm
Product name:
Vertical packing machine
Power:
220V,50/60HZ.2.2KVA
Film Width (Bag Former):
Max.320mm
Bag Width:
50-150mm
Bag Length:
30-200mm
Packing Speed:
10-70 Bags/min
Film Thickness:
0.04-0.08mm
Machine Type:
Mechanical Type
Machine Size:
L3771*W670*1453
Hopper Capacity:
60L

Quick Details

Function:
FILLING, Wrapping, Sealing
Packaging Type:
Bags, Film
Packaging Material:
Plastic, Paper
Weight (KG):
368
Voltage:
220V,50/60HZ,2.2KW
Place of Origin:
Guangdong, China
Brand Name:
Taichuan
Dimension(L*W*H):
(L)3771X(W)670X(H)1453mm
Product name:
Vertical packing machine
Power:
220V,50/60HZ.2.2KVA
Film Width (Bag Former):
Max.320mm
Bag Width:
50-150mm
Bag Length:
30-200mm
Packing Speed:
10-70 Bags/min
Film Thickness:
0.04-0.08mm
Machine Type:
Mechanical Type
Machine Size:
L3771*W670*1453
Hopper Capacity:
60L
Product Description
Model
TCLB-160A
Hopper Capacity
60L
Film Width (Bag Former)
Max.320mm
Bag Width
50-150mm
Bag length
30-200mm
Film roll Diameter
300mm
Packing Speed
10-70 bags/min
Packaging Film Materials
Laminate plastic Film,such as OPP/CPP/OPP/CE/MST/PE etc.
Power
220V,50/60Hz,2.2KW
Machine Type
Mechanical Type

Main Features

1. The structure of the machine is tight, firm, with reasonable design and simple appearance.
2. Stepping motor film, can adjust the parameters on the screen, easy to operate.
3. Frequency conversion speed regulation, more stable operation, lower noise, lower failure probability
4. It can be even packaged or individually packaged, and can be connected to the inflatable device to meet the needs of different products.
5. Automatic bag-making from metering, filling, metering, sealing, printing date, product output one-time completion.
6. eye mark sensor control system is adopted for accurate packing of products
7.Borrow the principle of spring pressure knife, pneumatic cutting.

Detailed Images

TCLB-160A

Name: Volumetric cups for metering
Brand: Taichuan
Original: China
Volumetric cups for metering, high, accuracy, easy operation and cleaning, using SS304 Stainless steel, sanitary metal parts to ensure durability, it can be adjusted according to customers' request size.

TCLB-160A

Name: Bag former
Brand: Taichuan
Original: China
Articulated bag former structure, high speed of accuracy and clean cutting, sealing bags. positioned stop function to avoids sticking blades and wasting materials, for perfect bag shape.

TCLB-160A

Name: Date Printer
Brand: Taichuan
Original: China
Date printer using external placement, more easily to operate, the temperature can be chosen according to the packing material.

TCLB-160A

Name: Cutting Knife
Brand: Taichuan
Original: China
By heating metal cutter sealing packaging to prevent leakage,ensure tightness.

TCLB-160A

Name: Electrical Box
Brand: Taichuan
Original: China
A clear and well-arranged circuit layout for easy inspection and maintenance.

TCLB-160A

Name: Computer Main Box
Brand: Taichuan
Original: China
CPU intelligent single chip computer system for efficient running, control more stable and orderly.

Optional Device
Perforated knife holder
Gusset bag device
Continue link bag
Nitrogen Making Machine
Bag Former
Finished Conveyor
Customers Feedback
Our Factory
Our service
Packing & Delivery
Shipping
The wooden case is customized according to the dimension of the machine for the long time shipping and transfering.
Shipping a whole set of the machine:
1. Preparing and checking the toolbox wearing part and the manual book.
2.Cleaning the dust and the scrap after testing the machine with the air pump.
3. Disassemble some certain part of the machine.
4. All the disassemble part, toolbox, main machine wrap by film
5.There will have screw fix themachine at the bottom of the wooden case 6.If any special requirements, we will pack it as requested.

A small spare part: Wrapped by the film that delivered by the DHL,UPS,TNT,EMS etc.
