Quick Details
-
Voltage:
-
220/380v, 380V/220V Optional
-
Dimension(L*W*H):
-
3800mmx1900mmx1900mm
-
Motor Power (kW):
-
7
-
Weight (T):
-
2
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
CNC Control system:
-
Touch Screen Siemens from Germany
-
Application:
-
Metalworking Drilling
-
System:
-
Servo
-
Core Components:
-
Pump
-
Machine Type:
-
iron worker
Quick Details
-
Nominal Force (kN):
-
2000
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
AccurL
-
Voltage:
-
220/380v, 380V/220V Optional
-
Dimension(L*W*H):
-
3800mmx1900mmx1900mm
-
Motor Power (kW):
-
7
-
Weight (T):
-
2
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
CNC Control system:
-
Touch Screen Siemens from Germany
-
Application:
-
Metalworking Drilling
-
System:
-
Servo
-
Core Components:
-
Pump
-
Machine Type:
-
iron worker
Products Description

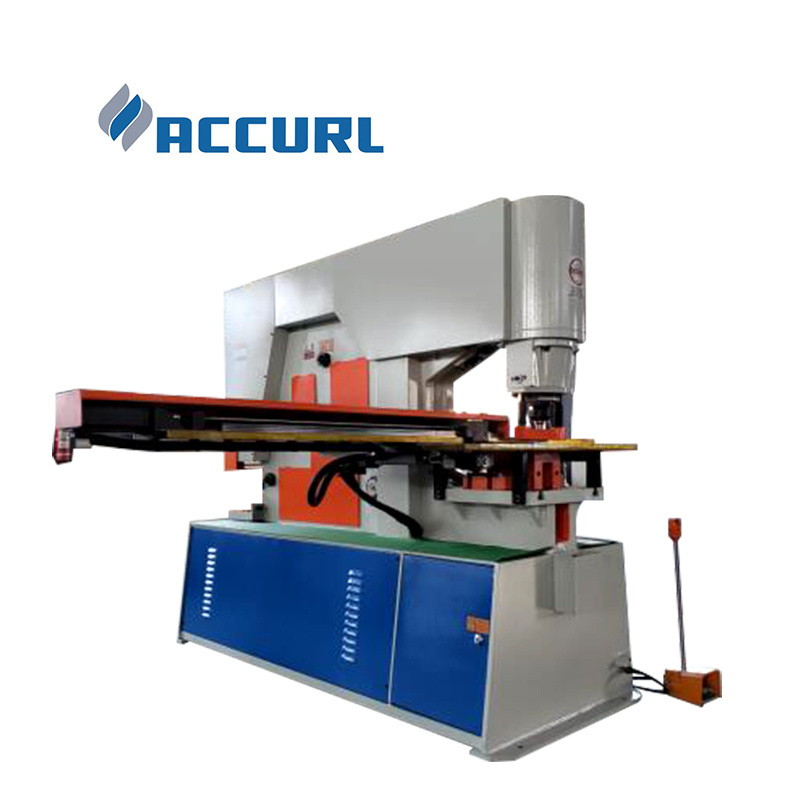

Hydraulic ironworker IW Series
Accurl Hydraulic Ironworkers are designed with multiple functions to save labor, time, energy and cost. This allows
Accurl Ironworkers to meet the diversified needs of the metal fabricating industry.
Maximum efficiency and long life is guaranteed by using the latest manufacturing methods, including powerful CAD
design, modern production line with CNC equipment and continuous quality control.
Details Images
WORK STATIONS
Punching Station
1. A full range of punches and dies are available for various punching needs. 2. Quick change retaining nut system for fast punch
tooling change. 3. Thoughtfully designed stripper for visibility, safety and ease of use.
4. A large 2-piece table with scales and gauging stops is standard on all models.
5. Stripper with interchangeable plates of various openings to minimize deformation is standard on all models.
tooling change. 3. Thoughtfully designed stripper for visibility, safety and ease of use.
4. A large 2-piece table with scales and gauging stops is standard on all models.
5. Stripper with interchangeable plates of various openings to minimize deformation is standard on all models.
|
PUNCHING
MODEL |
IW-60S
IW-60SD |
IW-80S
IW-80SD |
IW-100S
IW-100SD |
IW-125S
IW-125SD |
|
|
Punching Force
|
60 Ton
|
80 Ton
|
100 Ton
|
125 Ton
|
165 Ton
|
|
Punch Capacity S
|
ø22 x 20
|
ø26 x 22
|
ø28 x 26
|
ø33 x 27
|
ø37 x 32
|
|
Punch Capacity SD
|
ø50 x 9
|
ø50 x 12
|
ø50 x 15
|
ø50 x 18
|
ø50 x 24
|
|
Throat Depth S
|
310
|
310
|
310
|
310
|
--
|
|
Throat Depth SD
|
510
|
510
|
510
|
510
|
510
|
|
Maximum Stroke Length
|
100
|
100
|
100
|
100
|
100
|
|
Cycles / Min. (20mm stroke)
|
30
|
29
|
28
|
28
|
29
|
|
Working Height Up to Die
|
1010
|
1050
|
1044
|
1069
|
1050
|
1. Specially machined upper blade to give a clean shear with minimum distortion. 2. Lower blade has four usable cutting edges. 3.
Variable degree miter-cutting on angle flange. 4. Easily adjustable hold-down. 5. Support table with guides for accurate
positioning.
Variable degree miter-cutting on angle flange. 4. Easily adjustable hold-down. 5. Support table with guides for accurate
positioning.
|
FLAT SHEARINGMODEL
|
IW-60S
IW-60SD |
IW-80S
IW-80SD |
IW-100S
IW-100SD |
IW-125S
IW-125SD |
IW-165SD
|
|
Flat Bar Shear S
|
350 x 15
|
460 x 15
|
610 x 16
|
125 Ton
|
760 x 20
|
|
Flat Bar Shear SD
|
240 x 20
|
300 x 20
|
400 x 20
|
400 x 25
|
400 x 30
|
|
Blade Length
|
360
|
465
|
620
|
620
|
770
|
|
Angle Flange Trim
|
100
|
100
|
100
|
100
|
120
|
|
Working Height
|
910
|
926
|
954
|
920
|
920
|
Angle Shearing Station
1. Single shear with no material loss and minimal deformation. 2. 45° miter-cut is easy and clean. 3. Stationary blades with four
usable cutting edges. 4. Selectable corner radii on moving blades for optimum results on small or large angles.
usable cutting edges. 4. Selectable corner radii on moving blades for optimum results on small or large angles.
|
ANGLE SHEARINGMODEL
|
IW-60S
IW-60SD |
IW-80S
IW-80SD |
IW-100S
IW-100SD |
IW-125S
IW-125SD |
IW-165SD
|
|
At 90° Shearing
|
130 x 130 x 12
|
150 x 150 x 12
|
150 x 150 x 15
|
150 x 150 x 15
|
150 x 150 x 20
|
|
At 45° Miter Shearing
|
65 x 65 x 8
|
75 x 75 x 9
|
75 x 75 x 9
|
75 x 75 x 9
|
75 x 75 x 9
|
|
Working Height
|
1115
|
1165
|
1216
|
1185
|
1185
|
Bar Shearing Station
1. One hold-down for various sizes of square bar shearing and round bar shearing. 2. Optional channel and section bar shear
tooling is available for most models. (See specification chart for details)
tooling is available for most models. (See specification chart for details)
|
BAR SHEARINGMODEL
|
IW-60S
IW-60SD |
IW-80S
IW-80SD |
IW-100S
IW-100SD |
IW-125S
IW-125SD |
IW-165SD
|
|
Round Bar Shear
|
ø40
|
ø45
|
ø45
|
ø50
|
ø60
|
|
Square Bar Shear
|
38 x 38
|
300 x 20
|
400 x 20
|
50 x 50
|
60 x 60
|
|
Channel Shear (H x B)
|
125 x 65*
|
150 x 75*
|
150 x 75*
|
150 x 75*
|
200 x 90*
|
|
IBeam Shear (H x B)
|
100
|
150 x 75*
|
150 x 75*
|
150 x 75*
|
200 x 100*
|
|
Working Height
|
1220
|
1270
|
1332
|
1310
|
1370
|
Notching Station
1. Ideal for notching of flat bars and angles. 2. Electrically interlocked safety guard for maximum safety and visibility. 3.
Gauging table included with stops for precise positioning.
Gauging table included with stops for precise positioning.
|
NOTCHING
MODEL
|
IW-60S
IW-60SD |
IW-80S
IW-80SD |
IW-100S
IW-100SD |
IW-125S
IW-125SD |
IW-165SD
|
|
Rectangular Notcher (W x D x T)
|
50.8 x 90 x 9
|
50.8 x 90 x 12
|
63.5 x 90 x 12
|
63.5 x 90 x 13
|
63.5 x 90 x 16
|
|
Vee-Notcher
(Side x Side x T)
|
90 x 90 x 10*
|
90 x 90 x 12*
|
105 x 105 x 12*
|
105 x 105 x 13*
|
105 x 105 x 16*
|
|
Working Height
|
910
|
926
|
954
|
920
|
920
|
