Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3200 x 1480 x 1920mm
-
Weight (KG):
-
670
-
Power (kW):
-
1.5
-
Functions:
-

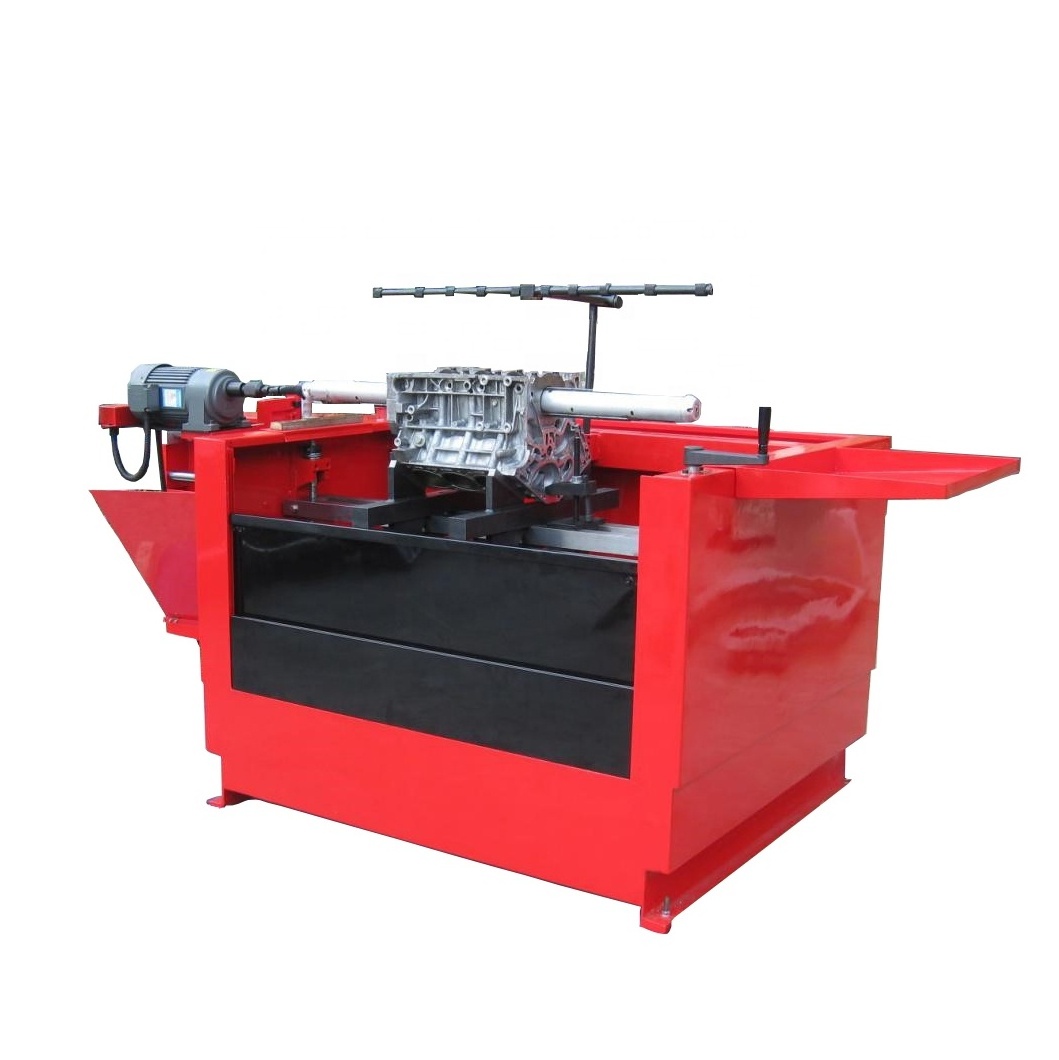

Honing Engine Cylinders
-
Type:
-
horizontal honing machine
-
Honing rang:
-
dia.46-178mm
-
Application:
-
Cylinder Repair
-
working capacity:
-
1140*710*710mm
-
Max. stroke length of the spindle:
-
660mm
-
Color:
-
Customized Color Acceptable
-
Certification:
-
ISO9001
Quick Details
-
Applicable Industries:
-
engine rebuilding
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
XAIMC
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3200 x 1480 x 1920mm
-
Weight (KG):
-
670
-
Power (kW):
-
1.5
-
Functions:
-
Honing Engine Cylinders
-
Type:
-
horizontal honing machine
-
Honing rang:
-
dia.46-178mm
-
Application:
-
Cylinder Repair
-
working capacity:
-
1140*710*710mm
-
Max. stroke length of the spindle:
-
660mm
-
Color:
-
Customized Color Acceptable
-
Certification:
-
ISO9001
Product Description
* Main Bearing Bore Diameter Range: 46~178mm, Special tooling required for 127~178mm.
* Capacity: V blocks, both 90 and 60; overhead and L-head in-line blocks; up to 1140 mm long, 710 mm from head
deck to main bearing centerline.
* Capacity: V blocks, both 90 and 60; overhead and L-head in-line blocks; up to 1140 mm long, 710 mm from head
deck to main bearing centerline.
* Minimum stock removal, usually less than 0.076 mm off the caps compared to as much as 0.254 mm with boring
* Maximum precision, corrects distortion caused by warpage and cap stretch
* Meets or exceeds original factory accuracy for alignment, roundness and size
* Fast, easy setup
* Ease of operation, no special training required.
* Maximum precision, corrects distortion caused by warpage and cap stretch
* Meets or exceeds original factory accuracy for alignment, roundness and size
* Fast, easy setup
* Ease of operation, no special training required.
Specification
|
Model
|
LH100
|
|
Working range
|
Ф46~Ф178 mm
|
|
Speed feed
|
150 rpm
|
|
Power of spindle motor
|
1.5 KW
|
|
Power of cooling oil pump
|
0.12 KW
|
|
Working cavity (L x W x H)
|
1140 x 710 x 710 mm
|
|
Dimensions of the machine (L x W x H)
|
3200 x 1480 x 1920 mm
|
|
Max. stroke length of spindle
|
660mm
|
|
Min. amount of coolant
|
130L
|
|
Max. amount of coolant
|
210L
|
|
Machine weight
|
670KG
|
|
Gross weight
|
800KG
|
Honing Unit Selection
|
Hone unit
|
|
(mm)
|
(mm)
|
Comments
|
Replacement stones and shoes
|
|
|
|
|
|
|
|
|
Stones(5 per box)Ship Weight 0.57kg per box
|
Stones(10 per box)
Ship Weight 0.9kg per box
|
|
|
8RY-2400G
|
12.5
|
61-69
|
686
|
Hone Unit includes 1 set of 10 stones and 20 shoes
|
RY24-J49
|
RG-D
|
|
|
8RY-2700G
|
14.2
|
69-77
|
686
|
|
RY24-J49
|
RG-D
|
|
|
10RY-1800F
|
15.4
|
46-54
|
619
|
|
RY24-J49
|
RG-D
|
|
|
10RY-2100F
|
20.4
|
54-61
|
619
|
|
RY24-J49
|
RG-D
|
|
|
10RY-2400G
|
18.1
|
61-69
|
857
|
|
RY24-J49
|
RG-D
|
|
|
10RY-2700G
|
20.4
|
69-77
|
857
|
|
RY24-J49
|
RG-D
|
|
|
10RY-3000H
|
22.6
|
77-89
|
857
|
|
RY24-J49
|
RG-D
|
|
|
10RY-4500H
|
27.2
|
115-127
|
857
|
|
RY24-J49
|
RG-D
|
|
|
10RY-5000H
|
32.0
|
127-140
|
857
|
Hone Unit includes 1 set of 15 stones and 30 shoes
|
RY24-J49
|
RG-D
|
|
|
10RY-5500H
|
36.6
|
140-152
|
857
|
|
RY24-J49
|
RG-D
|
|
|
10RY-6000H
|
44.1
|
152-165
|
857
|
|
RY24-J49
|
RG-D
|
|
|
10RY-6500H
|
51.6
|
165-178
|
857
|
|
RY24-J49
|
RG-D
|
|
|
15RY-3500H
|
38.5
|
89-102
|
1286
|
Hone Unit includes 1 set of 10 stones and 20 shoes
|
RY24-J49
|
RG-D
|
|
|
15RY-4000H
|
47.6
|
102-115
|
1286
|
|
RY24-J49
|
RG-D
|
|
|
15RY-4500H
|
54.4
|
115-127
|
1286
|
|
RY24-J49
|
RG-D
|
|
|
15RY-5000H
|
48.6
|
127-140
|
1286
|
Hone Unit includes 1 set of 15 stones and 30 shoes
|
RY24-J49
|
RG-D
|
|
|
15RY-5500H
|
55.4
|
140-152
|
1286
|
|
RY24-J49
|
RG-D
|
|
|
15RY-6000H
|
66.8
|
152-165
|
1286
|
|
RY24-J49
|
RG-D
|
|
|
15RY-6500H
|
78.2
|
165-178
|
1286
|
|
RY24-J49
|
RG-D
|
|
