Quick Details
-
Name:
-
IR Handwave sensor switch
-
temperature:
-
-10~+50°
-
Load Power:
-
<9w
-
model:
-
AM-SS-05
-
material:
-
aluminum
-
input Voltage:
-
DC7-18V
-
warranty:
-
2
-
Sensor distance:
-
2-5cm
-
Reaction time:
-
<0.5s
-
Application:
-
LED Cabinet, Kitchen, LED Strip light
Quick Details
-
Max. Current:
-
500
-
Max. Voltage:
-
18V
-
Place of Origin:
-
China
-
Name:
-
IR Handwave sensor switch
-
temperature:
-
-10~+50°
-
Load Power:
-
<9w
-
model:
-
AM-SS-05
-
material:
-
aluminum
-
input Voltage:
-
DC7-18V
-
warranty:
-
2
-
Sensor distance:
-
2-5cm
-
Reaction time:
-
<0.5s
-
Application:
-
LED Cabinet, Kitchen, LED Strip light
| Input Characteristics | |||||||
| Model No. | AM-RS-04 | AM-RS-04Y | AM-RS-03 | AM-RS-86 | AM-RS-03 | AM-TG-01 | AM-SS-86 |
| Mains voltage |
185~265V/ DC12/24V |
185-265V | 85-265V | 85-265V | 85-265V | 85-265V | 85-265V |
| Stand-by power | <0.5W | <0.5W | <0.5W | <0.5W | <0.5W | <0.5W | <0.5W |
| Load Rating | 5-35W | 5-35W | 5-200W | 5-200W | 5-200W | 5-200W | 5-200W |
| Sensor Data | |||||||
| Sensor principle | HF Microwave | HF Microwave | HF Microwave | HF Microwave | HF Microwave | HF Microwave | Handwave |
| Operation Frequency | 5.8GHz | 5.8GHz | 5.8GHz | 5.8GHz | 5.8GHz | 5.8GHz | Infrared sensor |
| Transmission power | <0.2mW | <0.2mW | <0.2mW | <0.2mW | <0.2mW | <0.2mW | <0.2mW |
| Detection range: Max(diameter*H) | 8m*6m | 8m*6m | 8m*6m | 8m*6m |
1-8m (selectable) |
1-8m (selectable) |
<25cm |
| Detection angle | 30° ~150° | 30° ~150° | 30° ~150° | 30° ~150° | 30° ~150° | 30° ~150° | 30° ~150° |
| Hold time | 15+/-5s | 15+/-5s | 15+/-5s | 15+/-5s |
3s-160s (selectable) |
3s-160s (selectable) |
/ |
| Daylight sensor | <10 lux | <10 lux | <10 lux | <10 lux |
0-300lux (selectable) |
0-300lux (selectable) |
/ |
| Environment | |||||||
| Operation Temperature(Ta) | -20~40°c | -20~40°c | -20~40°c | -20~40°c | -20~40°c | -20~40°c | -20~40°c |
| IP Rating | IP20 | IP20 | IP20 | IP20 | IP20 | IP65 | IP20 |
Following is DC and AC input voltage different items hand wave sensor switch
the IR switch (NO MOTION detection switch), which switches On by moving hand to the sensor by
1-15cm.
Not more. Second movement of hand turns switch OFF.
Specifications
1. Brief introduction of DC12v sensor module
The receiver then according to the intensity of the received light or detect the presence or absence of the target object (Photoelectric sensor) is shorttest for photoelectric proximity switch , It test blocked or reflected object on the beam. All objects in the reflected light can be detected . it converts the input current at the transmitter emits a light signal .

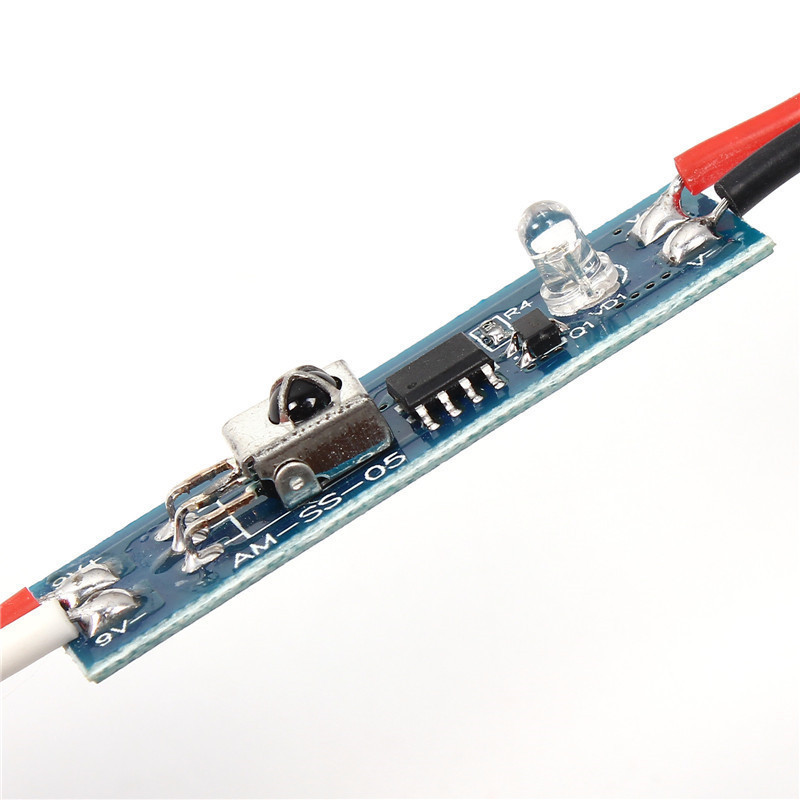

2.IR sensor switch Specification
* Model : AM-SS-05DC
* Input voltgae/ v: DC7-18V
* High-power: <9w
* Ambient temperature : -20°C~+50°C
* Power Consumption : ≤0.1W
* Sensor delay time: 0.5s
* Sensor distance: 2-5 cm
* Size/mm: L40xW13xH10
* Applications: wardrobe/closet/showbox lighting
3.The sensor module details
1. Lifetime: more than 50,000 hours.
2. Energy saving: In the same specification and luminous flux, the LED panel light can save 80%
3. Low temperature rise: The LED panel’s temperature rise is less than 25°C.
4. Small radiation.
Our service
1. 3 years warranty
2. OEM/CE/ROHES available
3. MOQ for 100pcs.
