Quick Details
-
Product name:
-

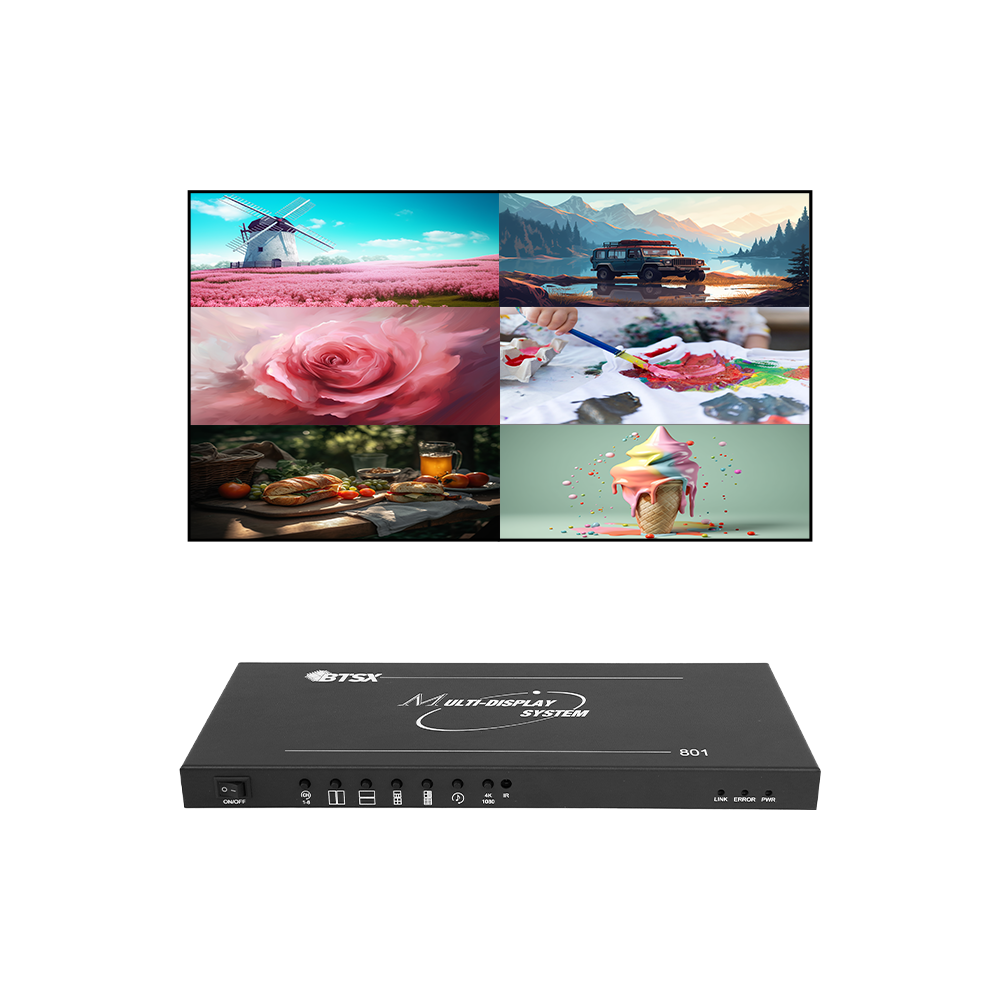

4k30 HDMI Multiviewer Switcher
-
Product features:
-
Single-window picture-in-picture(PIP)
-
Feature:
-
Seamless switching
-
Input:
-
8 HDMI Input
-
Output:
-
1 HDMI Output
-
Resolution:
-
3840x2160@30Hz
-
Control mode:
-
Pushbutton,Infrared Remote Control,Customizable
-
Power supply:
-
12V@2A AC-DC Power Supply
-
Size:
-
25cmx11.5cmx4.5cm
-
Warranty:
-
12 Months/ 1 Year
Quick Details
-
Model Number:
-
BIT-MV-4K-801
-
Brand Name:
-
Bitvisus
-
Place of Origin:
-
China
-
Product name:
-
4k30 HDMI Multiviewer Switcher
-
Product features:
-
Single-window picture-in-picture(PIP)
-
Feature:
-
Seamless switching
-
Input:
-
8 HDMI Input
-
Output:
-
1 HDMI Output
-
Resolution:
-
3840x2160@30Hz
-
Control mode:
-
Pushbutton,Infrared Remote Control,Customizable
-
Power supply:
-
12V@2A AC-DC Power Supply
-
Size:
-
25cmx11.5cmx4.5cm
-
Warranty:
-
12 Months/ 1 Year
Products Description
Product Features
☞ 4K30 HDMI Multiviewer is a high-performance 8-channel ultra-high-definition HDMI signal splitter,can display 8 channels of ultra-high-definition video signals on the same screen at the same time
☞ 4K30 HDMI Multiviewer is a high-performance 8-channel ultra-high-definition HDMI signal splitter,can display 8 channels of ultra-high-definition video signals on the same screen at the same time
☞
Seamless switching
, Support a variety of split model Single-screen,four-screen,four-screen 1 big and 3 small,eight-screen 2 big and 6 small,eight-screen grid,etc.
☞
Single-window picture-in-picture (
PIP
)
☞
The point-to-point effect can be realized,and the real
point-to-point
frame-to-frame lossless display can be achieved
☞
Support a variety of control methods, users can control the device through the
front panel buttons
, infrared remote control(
IR
),Can be customized
Application Scenario
DNF games, guide cutting table, professional conferences, radio and television, security monitoring, securities markets and other fields.
Specification
|
Product name
|
4K30 8 input 8 output seamless switching HDMI Multiviewer Switch
|
|
Product features
|
Supports any split screen mode within 8 images
|
|
Input
|
8 HDMI
|
|
Output
|
1 HDMI and DVI
|
|
Max input resolution
|
1920x1080@60Hz
|
|
Max output resolution
|
3840x2160@30Hz
|
|
Split model
|
Single-screen,four-screen,four-screen 1 big and 3 small,eight-screen 2 big and 6 small,eight-screen grid,etc.
|
|
Sound frequency
|
Supports 8 HDMI audio inputs,1 HDMI audio output (8select1)
|
|
Control mode
|
Pushbutton, Infrared Remote Control
|
|
Power supply
|
12V@2A AC-DC Power Supply
|
|
Power wastage
|
12W
|
|
Size
|
29.5cm*16cm*14cm
|
|
Weight
|
0.65KG
|
|
Certification
|
CE,FCC,HDMI
|
|
Warranty
|
12months-1year
|
