ZVS Tesla Coil Power No tap ZVS Tesla Coil Power High Voltage Generator driver board DC12-30V

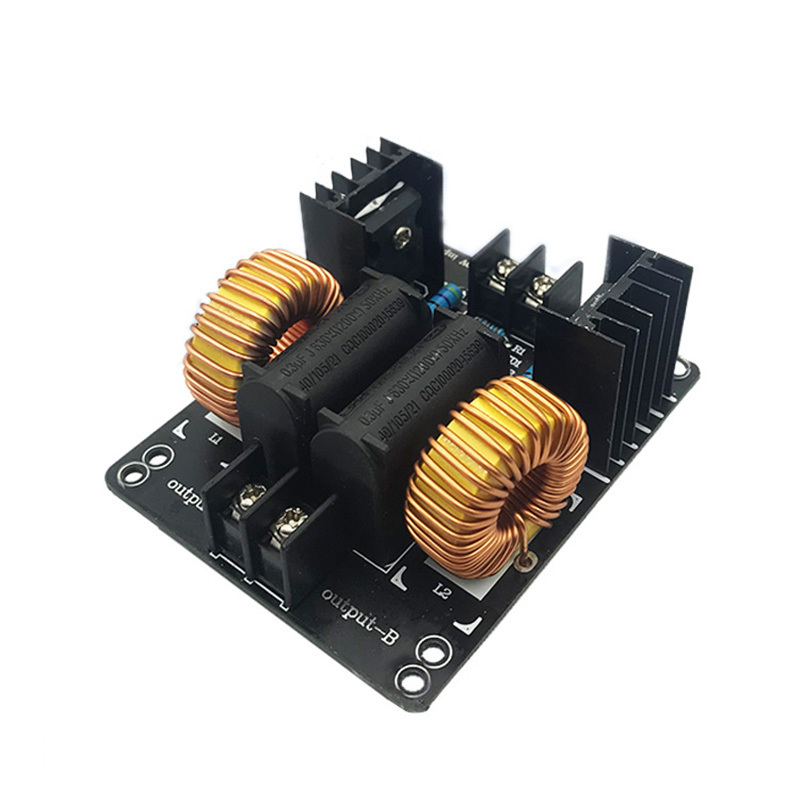

ZVS Tesla Coil Driver Board

The driver board has the following characteristics:

1. The use of military grade 1.6MM double-sided fiberglass board production (general merchants use low price single panel)

2. Adopt factory customized large inductance, consistent parameters and more stable performance (30MM large magnetic ring, made of 1.2MM pure copper wire winding)

3. All resistors adopt five-ring tight resistors (five-ring precision resistors have less error and work more stably)

4. The bottom of the circuit board is too large current part of all tinning (can be used for induction heating, general businesses in order to save costs do not open the window tinning can only do high voltage pack drive, once used for induction heating will burn out, because the copper current is not enough 5. Generally using 12-30V DC power supply, the current also needs to be more than 10A is more appropriate, because the drive board is working in Zero Voltage Switching state (Zero Voltage Switching), his efficiency is the highest, other drive is not comparable, The higher the voltage, the longer the pull arc (I personally test with 27V/15A switching power supply can pull more than 80MM arc, basically no heating), can also be used for induction heating or quenching, this is the higher the voltage heating faster, while heating greater, it is recommended that the diameter of the solid object is not more than 2/3 of the coil.
