Quick Details
-
Power:
-
1.5kw
-
Min. Lifting Height:
-
0.78m
-
Table Size:
-
600*550mm
-
Overall Dimensions:
-
1300*800*1620MM, accordingly
-
Weight:
-
270kg
-
Marketing Type:
-
New Product 2021
-
guardrail height:
-
1.1m
-
tyre:
-
4 tyres
-
Platforms:
-
anti-skid
-
Bearing:
-
self-lubrication bearing
-
color:
-
As for you
-
lifted type:
-
Self-resetting system
-
move type:
-
trailing
-
paint:
-
electrostatic Spraying
-
Power source (optional):
-
AC or DC
-
Working Condition:
-
Both indoors and outdoo
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Free spare parts, Video technical support, Online support
-
Certification:
-
CE ISO9001
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
honty
-
Power:
-
1.5kw
-
Min. Lifting Height:
-
0.78m
-
Table Size:
-
600*550mm
-
Overall Dimensions:
-
1300*800*1620MM, accordingly
-
Weight:
-
270kg
-
Marketing Type:
-
New Product 2021
-
guardrail height:
-
1.1m
-
tyre:
-
4 tyres
-
Platforms:
-
anti-skid
-
Bearing:
-
self-lubrication bearing
-
color:
-
As for you
-
lifted type:
-
Self-resetting system
-
move type:
-
trailing
-
paint:
-
electrostatic Spraying
-
Power source (optional):
-
AC or DC
-
Working Condition:
-
Both indoors and outdoo
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Free spare parts, Video technical support, Online support
-
Certification:
-
CE ISO9001
Product Description
The

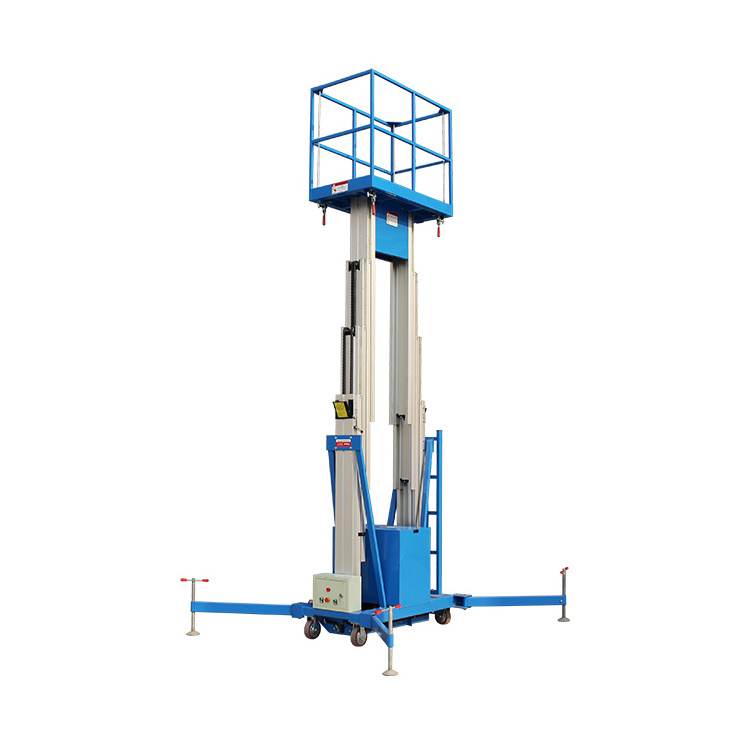

Aluminum Alloy Lift
is an industry favorite due to its of use, convenience, and flexibility. Its lightweight maneuverability and durable design make it a versatile option for a wide variety of rental, light-duty construction, and maintenance applications.
1. Main stent is made of aluminum alloy, bijou struction,light in weight,easy to move.
2. Owning point control system. Control platform up and down in two-way.
3. Manual moving,two universal wheel. Make moving convenience.
4. After short blasting,Painting both bottom and surface
Model List
|
|
type
|
height lift（m）
|
load capcity（kg）
|
power（kw）
|
weight（kg）
|
|
one mast
|
HTLH6
|
6
|
125
|
0.75
|
270
|
|
|
HTLH8
|
8
|
125
|
0.75
|
320
|
|
|
HTLH10
|
10
|
100
|
0.75
|
350
|
|
two mast
|
HTLH6
|
6
|
200
|
1.5
|
420
|
|
|
HTLH8
|
8
|
200
|
1.5
|
520
|
|
|
HTLH10
|
10
|
200
|
1.5
|
550
|
|
|
HTLH12
|
12
|
200
|
1.5
|
640
|
|
|
HTLH14
|
14
|
200
|
1.5
|
720
|
|
three mast
|
HTLH10
|
10
|
200
|
1.5
|
720
|
|
|
HTLH12
|
12
|
200
|
1.5
|
780
|
|
|
HTLH14
|
14
|
200
|
2.2
|
980
|
|
|
HTLH16
|
16
|
200
|
2.2
|
1180
|
Four and Six mast can also produce，It's up to you!
We have variety of types for you to choose, please check the above types to find which one you need, just feel free to contact us.
Before quote the exact prices,we need to know the detailed specifications:
lifting height (M):__________
Platform dimension (L xW):__________
Load capacity (KG):__________
Please inquire me for more information ！！！
Click!
Click!
Click!
Product Details
Control panel: You can control the lift up and down on the ground. Other people can help worker up and dowm.
Chain：It is the chain, and help mast up and down smooth.
Control on platform: The worker can control the lift up and down by himself when working.
Wheels: The mast man lift have four wheels, you can go and back easily by manual.
Safety Protection Device
1-Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2-Spillover valve: it can prevent high pressure when the machine moves up. Adjust the pressure.
3-Emergency decline valve: it can go down when you meet an emergency.
Our Product
power supply
1-AC Powered Models (220v):Powered by a plugged power point,No noise and air pollution,Indoor Usage,Longer usage time.
2-DC Powered Models:Battery operated, can be use outdoor,Use for workspace constraints.
Product Advantage
1. Considering security problem, the platform generally is equipped with anti skid insulated plastic water groove boards, easy to change.
2. Mobile hydraulic lift with artificial mobile hydraulic lift, electric portable hydraulic lift,the other with a hand pump, used for power failure.
3. Mobile and flexible, smooth lifting, easy operation, large capacity.
4. The series mobile hydraulic aluminum lift platform with a multi purpose, indoor and outdoor use can be widely used in railway stations,airports, bridges,inquiries, internal and external mechanical plant installation,equipment maintenance, construction and maintenance and so on.
Package & Delivery
Packaging:
standard international packaging. The wooden case can be customized as the machine size.
Shipping:
the loading port is Qingdao,China. We will delivery your machine 15 working days after receive of payment.
Our Service
1- One year warranty for whole machines.
2- Providing free quick-wear part.
3- Low charge for continue maintenance when warranty is expired.
4- Exclusive engineer support at any time.
5- We can provide free training to end-users 6- 24 hours online services
