Quick Details
-
Brand Name:
-
HITECH
-
Voltage:
-
380/415/440V
-
Power:
-
300KW
-
Dimension(L*W*H):
-
50*6*4m
-
Weight:
-
60000 kg
-
Product name:
-

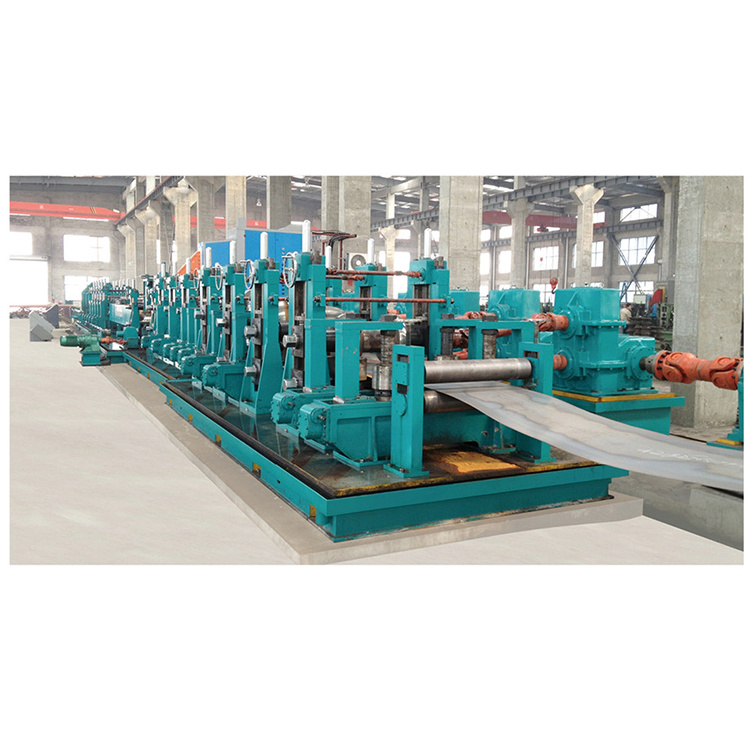

Pipe Production Line / Welded ERW Tube Mill Pipe Making Machine
-
Name:
-
ERW Steel Tube
-
Key word:
-
Metal pipe making machine
-
Color:
-
Optional
-
Pipe shape:
-
Round,rectangular,LTZ and other special shapes
-
Material:
-
Carbon steel and galvanized steel
-
Usage:
-
Construction,drain
-
Service:
-
24*7 Technical support
-
Item:
-
High Frequency Welded Pipe Mill
Quick Details
-
Pipe Material:
-
Carbon steel
-
Production Capacity:
-
100m/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HITECH
-
Voltage:
-
380/415/440V
-
Power:
-
300KW
-
Dimension(L*W*H):
-
50*6*4m
-
Weight:
-
60000 kg
-
Product name:
-
Pipe Production Line / Welded ERW Tube Mill Pipe Making Machine
-
Name:
-
ERW Steel Tube
-
Key word:
-
Metal pipe making machine
-
Color:
-
Optional
-
Pipe shape:
-
Round,rectangular,LTZ and other special shapes
-
Material:
-
Carbon steel and galvanized steel
-
Usage:
-
Construction,drain
-
Service:
-
24*7 Technical support
-
Item:
-
High Frequency Welded Pipe Mill
Product Description
The whole production line work flow like:
Raw material→ uncoiling → shearing and butt-welding → accumulator →leveling→ mill-forming →high-frequency welding
→ deburring → cooling(water colling) → sizing →straightening → fixed length cutting → run-out table
——PARAMETER——
|
Model
|
Diameter of welded tube(mm)
|
Wall thickness of welded tube(mm)
|
Speed of tube welding(m/min)
|
Power of main motor(kw)
|
High frequency power(kw)
|
|
ZG16
|
8-25
|
0.25-1.0
|
30-100
|
30
|
60
|
|
ZG25
|
8-32
|
0.35-1.3
|
30-100
|
45
|
100
|
|
ZG32
|
13-50.8
|
0.5-2.0
|
30-90
|
110
|
150
|
|
ZG50
|
20-63.5
|
0.6-2.5
|
30-90
|
160
|
200
|
|
ZG60
|
25-63.5
|
0.8-3.0
|
20-80
|
185
|
250
|
|
ZG76
|
25-80
|
1.2-4.0
|
20-70
|
200
|
300
|
|
ZG90
|
32-90
|
1.5-4.5
|
20-60
|
110x2
|
400
|
|
ZG115
|
38-115
|
2.0-5.0
|
20-60
|
160x2
|
400
|
|
ZG165
|
80-165
|
2.0-6.0
|
15-50
|
200x2
|
500
|
|
ZG219
|
90-219
|
3.0-8.0
|
15-50
|
250x2
|
600
|
|
ZG273
|
185-273
|
4.0-10.0
|
15-40
|
250x1 185x2
|
800
|
|
ZG300
|
165-355
|
4.0-12.0
|
15-30
|
250x2 200x2
|
1200
|
UNCOILER
360°rotary hydraulic-pressure expanding tight，which insure steel coil feeding alternatively and make steel strip go into accumulator freely
ACCUMULATOR
Overview：it has two kinds of accumulator for optional.usually big line use horizontal type,and small line use vertical type.
Forming part
Mainly roughly mill-forming steel strip and controlling weld seam
Sizing part
Mainly fine shaping pipe after welding and controlling size accuracy
Turkey’s head
mainly used for straightening of finished pipe roughly online
Cold saw cutting
This numerical control cold cutting flying saw, with internationally advanced performance and all servo control, is suitable for online moving high-speed cutting of various pipes.
Application tubes
