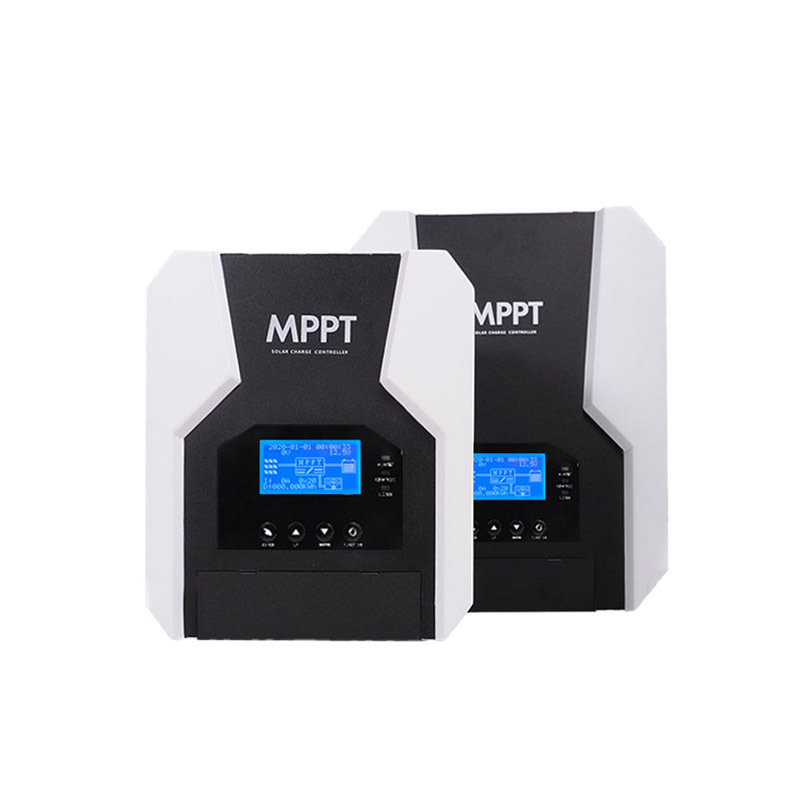

Quick Details
-
Brand Name:
-
Elege
-
Model Number:
-
MAX-MPPT-05
-
Work Time (h):
-
24
-
Max PV Power:
-
5760W
-
Max PV Voltage:
-
64V
-
Certificate:
-
ccc
-
Warranty:
-
customized
-
Battery type:
-
Lead acid battery, lithium battery, battery
-
MPPT Voltage:
-
11V
-
Communication port:
-
RS485 Standard
-
Operating temperature:
-
-20℃~+50℃/-40℃~+70℃
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar Working Station, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Jiangsu, China, JiangSu, China
-
Brand Name:
-
Elege
-
Model Number:
-
MAX-MPPT-05
-
Work Time (h):
-
24
-
Max PV Power:
-
5760W
-
Max PV Voltage:
-
64V
-
Certificate:
-
ccc
-
Warranty:
-
customized
-
Battery type:
-
Lead acid battery, lithium battery, battery
-
MPPT Voltage:
-
11V
-
Communication port:
-
RS485 Standard
-
Operating temperature:
-
-20℃~+50℃/-40℃~+70℃
|
Parameter
|
MPPT-MAX 40A
|
MPPT-MAX 60A
|
MPPT-MAX 80A
|
MPPT-MAX 100A
|
MPPT-MAX 120A
|
|||||
|
System rated voltage
|
12/24/36/48VDC or self-identification
|
|
|
|
|
|||||
|
Controller operating voltage range
|
11~64V
|
|
|
|
|
|||||
|
Lead-acid battery type
|
Maintenance-free(default)colloid/liquid/custom
|
|
|
|
|
|||||
|
Lithium battery type
|
Lithium Iron Phosphate/ Ternary Lithium/Custom
|
|
|
|
|
|||||
|
Rated charging current
|
40A
|
60A
|
80A
|
100A
|
120A
|
|||||
|
Rated charging power
|
540W/12V
1080W/24V 1620W/36V 2160W/48V |
800W/12V
l600W/24V 2400W/36V 3200W/48V |
1080W/12V
2160W/24V 3240W/36V 4320W/48V |
1300W/12V
2600W/24V 3900W/36V 5200W/48V |
1560W/12V
3120W/24V 4680W/36V 6240W/48V |
|||||
|
Maximum open circuit voltage of photovoltaic modules
|
150V(under the lowest temperature condition) 138V(under 25℃ condition)
|
|
|
|
|
|||||
|
Maximum power point operating voltage range
|
(Battery voltage+5v)~138v(at25°C)
|
|
|
|
|
|||||
|
Tracking efficiency
|
≥99.5%
|
|
|
|
|
|||||
|
Maximum conversion efficiency
|
97.5%
|
|
|
|
|
|||||
|
Temperature compensation coefticient
|
—3m/℃/2V
|
|
|
|
|
|||||
|
Static loss
|
700m/12V;300mA/24v;150mA/48v;100mA/96v
|
|
|
|
|
|||||
|
DC load output voltage
|
Can be turned on in 12/24V mode
|
|
|
|
|
|||||
|
DC load rated output current
|
40A
|
|
|
|
|
|||||
|
DC load output control
|
Normally open normally closed mode/time control mode/light control mode
|
|
|
|
|
|||||
|
Protective function
|
PV input reverse connection protection, battery input reverse connection protection, battery overcharge protection, battery
undervoltage protection, battery over temperature protection, machine over temperature protection |
|
|
|
|
|||||
|
Cooling method
|
Wind cooling
|
|
|
|
|
|||||
|
Way of communication
|
RS485
|
|
|
|
|
|||||
|
LCD backlight time
|
Default 60S. backlight mode can be set
|
|
|
|
|
|||||
|
Environmental parameters
|
|
|
|
|
|
|||||
|
Working environment temperature range
|
—20℃+50℃
|
|
|
|
|
|||||
|
Storage temperature range
|
—40℃+70℃
|
|
|
|
|
|||||
|
Relative humidity range
|
0~90%RH
|
|
|
|
|
|||||
|
Mechanical parameters
|
|
|
|
|
|
|||||
|
Dimensions
|
280*235*110mm
|
280*235*110mm
|
290*310*110mm
|
290*310*110mm
|
290*310*110mm
|
|||||
|
Recommended wiring
|
7AWG/10mm²
|
6AWG/16mm²
|
4AWG/25mm²
|
4AWG/25mm²
|
4AWG/25mm²
|
|||||
|
Net weight
|
3.5Kg
|
3.5Kg
|
6Kg
|
6Kg
|
6Kg
|
|||||
1. How to insatll and use the product?
We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
2. What if I don't have export experience?
We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.
3. How is your technical support?
We provide lifetime online support through Whatsapp/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary.
4. How can I make sure it's a secure transaction?
Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the payment, the money will go directly to Alibaba bank account.After we send your the items and youcomfirm the detailed information, Alibaba will release us the money.
5. Can you get the product customized for us?
Of course, brand name, machine color, designed unique patterns available for customization.
6. How to become your agent?
Contact us through Alibaba, we will give you the best price and look forward to your greetings.
