- Product Details
- {{item.text}}
Quick Details
-
Production Capacity:
-
70-100bag/min
-
Weight (KG):
-
410
-
Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
mingyuan
-
Dimension(L*W*H):
-
1000*1000*2260mm
-
Model:
-
High Speed Tea Bag Machine MY-ZF90
-
Pack Range:
-
1-10g
-
Bag Length:
-
45-90mm
-
Bag Width:
-
40-90mm
-
Speed:
-
70-100 bags/min
-
Machine Dimension(L*W*H):
-
1000*1000*2260mm
-
Power:
-
220V150-60HZ/2KW
-
Tea Bag Type:
-
Flat(one-click switch shape)
-
The Material of Packing Film:
-
Nylon,Polyester Net,Non-woven FibriesCorn Fiber(Food Grade)2-hea
Quick Details
-
Function:
-
FILLING, Wrapping, weighing and packaging
-
Packaging Type:
-
Bags, Pouch
-
Packaging Material:
-
Plastic, non-woven fabrics
-
Production Capacity:
-
70-100bag/min
-
Weight (KG):
-
410
-
Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
mingyuan
-
Dimension(L*W*H):
-
1000*1000*2260mm
-
Model:
-
High Speed Tea Bag Machine MY-ZF90
-
Pack Range:
-
1-10g
-
Bag Length:
-
45-90mm
-
Bag Width:
-
40-90mm
-
Speed:
-
70-100 bags/min
-
Machine Dimension(L*W*H):
-
1000*1000*2260mm
-
Power:
-
220V150-60HZ/2KW
-
Tea Bag Type:
-
Flat(one-click switch shape)
-
The Material of Packing Film:
-
Nylon,Polyester Net,Non-woven FibriesCorn Fiber(Food Grade)2-hea

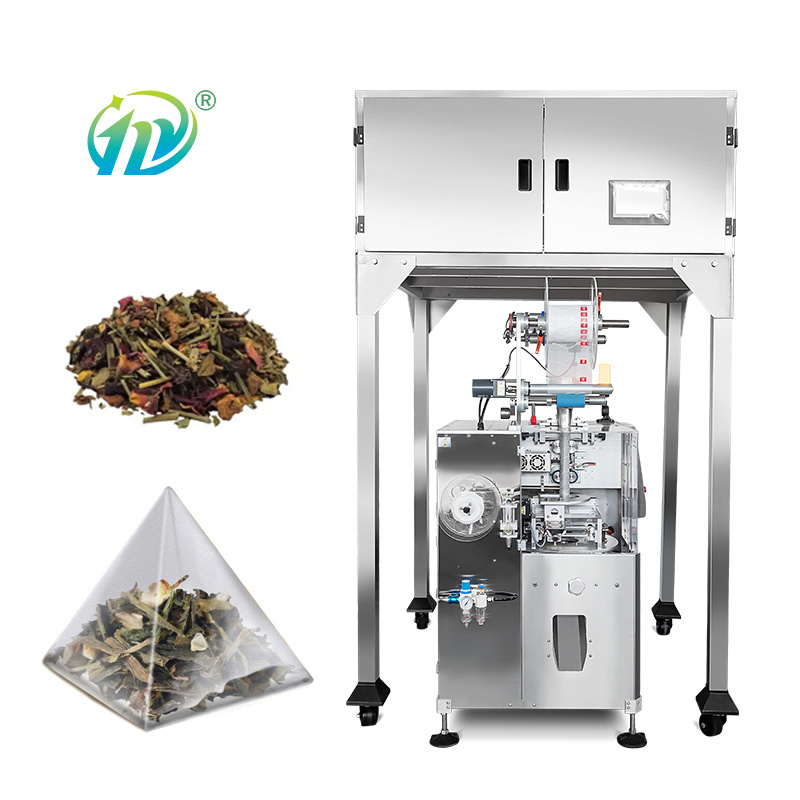

Product display
lt is widely used in the packaging of all kinds of herbal tea，loose leaf tea，flower tea，fruit tea and mixed tea.
Bag Type
Ripple non-woven fabric
Corn fiber non-woven fabric
Contact me for more information on materials and types of packages
Products Description
1.
We are leading manufacturer of tea bag packaging machines.
Offering professional solutions for various single tea leaf, flower tea, fruit tea, herbs etc. for domestic and international clients.
Designed to meet any production rates, package style and budget.
2.
Our vibration scales are high precision for smaller weigher measuring
,can pack all regular tea or those irregular shape herbs, flowers. Also can blend and weight different tea material into one tea bag etc.
3. The automatic filling sealing system tomake it’s friendly for operation.
3. The automatic filling sealing system tomake it’s friendly for operation.
4.Ultrasonic sealing system to make it’s healthier and more beautiful bag forming. Both inner andouter
bag packing make production easier and higher effieciency.
|
Model
|
High Speed Pyramid Tea Bag Machine MY-ZF90
|
|
|
|
||||
|
Pack Range
|
1-10g
|
|
|
|
||||
|
Bag Length
|
45-90mm
|
|
|
|
||||
|
Bag Width
|
45-90mm
|
|
|
|
||||
|
Speed
|
70-100 bags/min
|
|
|
|
||||
|
Machine Dimension(L*W*H)
|
1000*1000*2260mm
|
|
|
|
||||
|
Machine Weight
|
410kg
|
|
|
|
||||
|
Power
|
220V150-60HZ/2KW
|
|
|
|
||||
|
Gas Source
|
≥0.6Mpa
|
|
|
|
||||
|
Tea Bag Type
|
Pyramid/Flat(one-click switch shape)
|
|
|
|
||||
|
The Material of Packing Film
|
Nylon,Polyester Net,Non-woven Fibries Corn Fiber(Food Grade)2-hea
|
|
|
|
||||
|
Weighting Method
|
2-head Electronic Scale/4-head Electronic Scale/6-head Electronic Scale
|
|
|
|
||||
|
Heating Method
|
Ultrasonic Heater
|
|
|
|
||||
|
OEM(Show Client Company Name in Machine Panel)is welcome in our factory
|
|
|
|
|
||||
Product details
For powder:
Screw measuring system, auger feeder.
Quality brand electric system like Schneider.PLC control system bewith YOUNGSUN with Reliable quality
electronic scale
Screw measuring system, auger feeder.
The weighing system is equipped with six electronic scales,whichcan quickly weigh and the accuracy can reach 0.01g(according tothe
material)
material)
airtac
lt is with airtac brand and it can make the air pressure stable anddryer longer service life
The cursor locator
The cursor locator will detect the position of each label and transmitthe data to the PLC to ensure that each label can be the correctaposition
ultrasoinc heater seal
The ultrasoinc heater seal the side of the tea bag,this is the first stepof sealing the bag
Success case
Company strength
FAQ
1.Make sample bags
If it’s necessary according to your requirements, we can make sample bags for your reference.
2.Free machine adjustment before shipment
Our technical team will adjust the machine based on customer's request and take video to send to our customer to show the running condition of the machine.
3.Free Training CD to ship with machine
Our technical team will provide a trainning CD to our customer in order to train how to use the machine.
4.Life Long after sale service
Our factory will provide life long service, in order to help our customer to solve any problem regarding to the machine, such as replacement part, technique questions, etc.
5.Warranty and after-sales service
One year warranty, 24 hours online technical service and solution can be offered.
Remark
1. Ourcompany accept the payment of L/C,,T/T,e-checking, etc,confirm with our sales personnel finally please.
2. There may be chargewhen adding the additional configuration, please confirm with our sales personnel.
3. The packing machine final price need toconfirm with our sales personnel.
4. Our company reserve all the right for the final explanation.
2.Free machine adjustment before shipment
Our technical team will adjust the machine based on customer's request and take video to send to our customer to show the running condition of the machine.
3.Free Training CD to ship with machine
Our technical team will provide a trainning CD to our customer in order to train how to use the machine.
4.Life Long after sale service
Our factory will provide life long service, in order to help our customer to solve any problem regarding to the machine, such as replacement part, technique questions, etc.
5.Warranty and after-sales service
One year warranty, 24 hours online technical service and solution can be offered.
Remark
1. Ourcompany accept the payment of L/C,,T/T,e-checking, etc,confirm with our sales personnel finally please.
2. There may be chargewhen adding the additional configuration, please confirm with our sales personnel.
3. The packing machine final price need toconfirm with our sales personnel.
4. Our company reserve all the right for the final explanation.
