Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm, Can be customized according to requirements
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YaYuan
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1300*1200*1900mm
-
Weight (KG):
-
700 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
small brick making machine
-
Keywords:
-
concrete block making machine in Uganda
-
Name:
-
manual simple brick making machine
-
Weight:
-
700KG
-
Moulding Period:
-
35s
-
Pallet size:
-
850*550*30mm
-
Color:
-
Customer's Demand
-
Block Type:
-
Hollow Concrete Brick Machine
-
Products:
-
interlocking brick,Grass planting brick,S-type brick
Quick Details
-
Type:
-
Curbstone, Hollow,Interlock,Paving Block Making Machine
-
Brick Raw Material:
-
Cement,Fly Ash ,Coal Gangue ,Cinder
-
Production Capacity (Pieces/8 hours):
-
2000-20000 Piece/8 hours
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm, Can be customized according to requirements
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YaYuan
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1300*1200*1900mm
-
Weight (KG):
-
700 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
small brick making machine
-
Keywords:
-
concrete block making machine in Uganda
-
Name:
-
manual simple brick making machine
-
Weight:
-
700KG
-
Moulding Period:
-
35s
-
Pallet size:
-
850*550*30mm
-
Color:
-
Customer's Demand
-
Block Type:
-
Hollow Concrete Brick Machine
-
Products:
-
interlocking brick,Grass planting brick,S-type brick

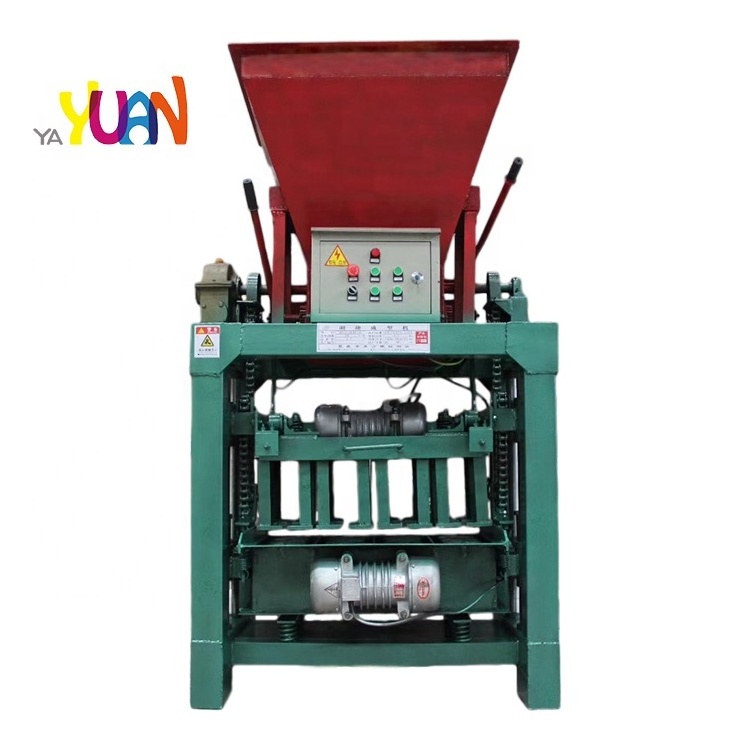

Product description of YYS4-35 small brick making machine
Small brick making machine has reasonable structure, simple operation , and flexibility to change mould. The productivity is higher than other brick machines and can be piled up after molding. It covers small area ,only need 3-4 operating persons.The products with light weight, low energy consumption, low investment, suitable for various construction place.
|
Specifications(YYS4-35 cement small brick making machine)
|
|
|
|
Dimension
|
1300*1200*1900 mm
|
|
|
Moulding Period
|
35s
|
|
|
Host power
|
7.5kw
|
|
|
Weight
|
700kg
|
|
|
Pallet size
|
850*550*30 mm
|
|
|
Raw material
|
cement, dust and coal fly ash, gangue,cinder, slag,etc
|
|
The parameters in the above table are for reference only, we can customize according to customer requirements.
Productivity of
small brick making machine
The table only shows the production of some size bricks.Production of other shaped bricks is calculated by customer-supplied dimensions.
|
Capacity(YYS4-35 cement small brick making machine)
|
|
|
|
|||
|
Product
|
Size
|
Piece/Pallet
|
Piece/8 hours
|
|||
|
Standard brick
|
240*115*53 mm
|
24
|
14000-17000
|
|||
|
Hollow block
|
390*240*190mm
|
3
|
2000-2500
|
|||
|
|
390*190*190mm
|
4
|
2000-3000
|
|||
|
Hexagon brick
|
300mm
|
1
|
960
|
|||
|
|
200 mm
|
2
|
1900
|
|||
Advantages Of small brick making machine
1
.
Not using the clay as raw material to destroy any field.
2
.
Not using fire to bake blocks and not building kiln to save the energy sources and fields.
3
.
No chimney to pollute the environment.
4
.
Good looking, construction convenient and cheap.
5
.
Production process is simple, they can be made everywhere .
6
.
Low investment and achieving much faster results, customers can profit in half a year after investing.
7
.
The block can be produced all around the year.
8.
Technical criteria is better than those of red brick and green brick.
Brick or block mould display
Customer case
About Us
Our company
ha
s advanced production equipment and first-class technical talents. According to the different conditions proposed by customers. We can design product solutions that meet the actual needs of customers, and provide pre-sales, sales, and after-sales full-service, which can solve actual production for customers and Any problem in operation.
1,Quality assurance period is 1 year for the whole machine, but the failures caused by operational errors are the responsibility of the customer.
2,We will test all machines before shipment to ensure that the equipment you receive is normal.
3,We have technical personnel to abroad to install and commission,and train your workers until they can be produced independently.
4,You can contact us at any time if you have problems .
5,Special sizes can be custom-made specially.
FAQ
Packaging details of brick making machine: sea worthy wooden case or iron box ,or container
Delivery Time: 10-15 days after deposit
Supply ability:100 Set/Sets per Month
Port:Qingdao
