Quick Details
-
Brand Name:
-
AJ
-
Charging Capacity:
-
560L
-
Reclaiming capacity:
-
350L
-
Speed of Mixing Drum:
-
14r/min
-
Water Supply Mode:
-
Hydraulic
-
Discharge Way:
-
free fall
-
Outline Dimension:
-
2766*2140*3180mm
-
Weight (KG):
-
2300 kg
-
Hopper Tipping:
-
Hydraulic
-
Product name:
-
Cocnrete Mixer
-
Keywords:
-
Portable Concrete Mixer Machine
-
Name:
-
Mobile Portable Concrete Mixer
-
Application:
-
Construction Industry
-
Item:
-
Portable Small Cement Cement Mixer
-
Product Keywords:
-
Mini Electric Cement Mixer
-
Key words:
-
Hydraulic Diesel Engine Concrete Mixer
-
Type:
-
Concrete Mixer Wiyh Pump
-
Feature:
-
Working Efficiency
Quick Details
-
Mixing Power:
-
15-18HP
-
Productivity:
-
14M³/H
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AJ
-
Charging Capacity:
-
560L
-
Reclaiming capacity:
-
350L
-
Speed of Mixing Drum:
-
14r/min
-
Water Supply Mode:
-
Hydraulic
-
Discharge Way:
-
free fall
-
Outline Dimension:
-
2766*2140*3180mm
-
Weight (KG):
-
2300 kg
-
Hopper Tipping:
-
Hydraulic
-
Product name:
-
Cocnrete Mixer
-
Keywords:
-
Portable Concrete Mixer Machine
-
Name:
-
Mobile Portable Concrete Mixer
-
Application:
-
Construction Industry
-
Item:
-
Portable Small Cement Cement Mixer
-
Product Keywords:
-
Mini Electric Cement Mixer
-
Key words:
-
Hydraulic Diesel Engine Concrete Mixer
-
Type:
-
Concrete Mixer Wiyh Pump
-
Feature:
-
Working Efficiency

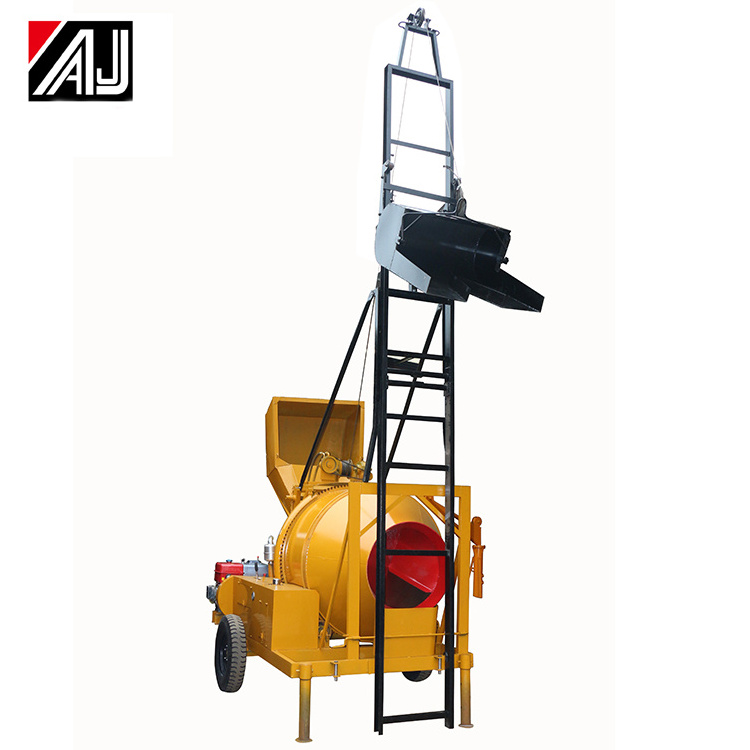

JZC 350-DHL Concrete Mixer Machine with Lifting Ladder is a self loading concrete mixer of double conical drums which discharge concrete by reverse-rotation, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction. Each time, the mixing drum can handle 0.35 cubic meters of concrete .
It combined the function of concrete mixer and mini lifter together . After the material dicharged from the mounth of mixer, the lifting bucket could catch the material and lift it up to 17 m high ( about 5 floors) place to discharge.The mixer is designed and manufactured according to GB/T9142-2000<Concrete Mixer>, it is featured by novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, JZC350-DH Concrete Mixer is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.
Main Features of JZC350-DHL Diesel Hydraulic Self Loading Concrete Mixer with Lifting Ladder
1)
Chinese TOP Brand
CHANGCHAI or CHANGFA Powerful Diesel Engine As Option
2) Steel Flexible Guide Wheel
3) Robust and Strong Trailing Rod
4)
Big Capacity
Hydraulic Oil Tank
5) Middle Situated and Bolt Connected Design of Grand Gear Ring.
6) Wear resistant plate ,thickness from 6mm to 8mm.
7) Hydraulic Control of Feeding and Lifting Hopper
Big Capacity of Mixing Drum
Material: Q345 Wear resistant Steel Plate
Details: The Drum Thickness is 6mm ,made by Q345 Wear resistant Steel Plate. 8 mm as Option.
Drum Mixing Capacity :560L
Mixing 2bags (100kg) cement at a time.
Portection Cover
Material:
Q235 Steel Plate,3mm
Features:
Made by Q235 Steel Plate,which
thickness is 3 mm,
make sure it can protect the Transmission System from damaged . What's more,because of the Engine was setted in the cover, the Dust can not access the engine easily,and the
engine could have a longer service life
.
Big Capacity of Lifting Bucket
The Capacity of Lifting Bucket is 200 Liter .Can transport the Concrete up to 17m high.And the Bucket is drived by Hydraulic Motor,can lift the bucket smoothly and reliability.
