IAA Auto Tracking System(since 2008) can automatically adjust the height of crossbeam according to the length of vehicle wheelbase,avoid the target to appear at the edge of camera,ensure the data accuracy.
*Model X56 without IAA auto lifting system.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
x96
-
Warranty:
-
12 Months
-
color:
-
customized
-
cabinet:
-
classical cabinet
-
Software:
-
3D Wheel Alignment Software
-
Keywords:
-
3D Wheel Aligment
-
Language:
-
Global Multi-language
-
Trade Term:
-
FOB CIF EXW CFR
-
Package:
-
Wooden Box
-
Camera:
-
5 Million Pixel High Resolution
-
Vehicle database:
-
Updated Promptly
-
Installation:
-
Video
Quick Details
-
Power:
-
50HZ/60HZ
-
Power Supply:
-
110V/220V
-
Max. Wheel Weight:
-
no limited
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
x96
-
Warranty:
-
12 Months
-
color:
-
customized
-
cabinet:
-
classical cabinet
-
Software:
-
3D Wheel Alignment Software
-
Keywords:
-
3D Wheel Aligment
-
Language:
-
Global Multi-language
-
Trade Term:
-
FOB CIF EXW CFR
-
Package:
-
Wooden Box
-
Camera:
-
5 Million Pixel High Resolution
-
Vehicle database:
-
Updated Promptly
-
Installation:
-
Video
3D Wheel Alignment
We are not the common 3D Wheel Alignment
Do you need accuracy lifetime or service lifetime ?
① Service lifetime refers to the length of time a product can be used.
② Accuracy lifetime refers to the length of time the equipment maintains a high level of accurate measurement.
① A 3D wheel aligner with Super Compensation System can ensure the high measurement precision even uses in a long time.
② If the alignment without Super Compensation System,its measurement precision will greatly reduce as the deformation of target and wheel clamp.
What's the advantage of 3D wheel alignment functions
?
Apply 5.0 mega pixels high definition SONY cameras, five times higher than the industry average (1.3 mega pixels).
Higher-pixel cameras capture more clear images, more accurate data, and support smaller targets.
Ultra-thin Aluminum Alloy Target
With ultra-thin design, so light and very easy to install. The target was made of 3M reflective material and aluminum material, which is more durable and resistant to water and oil.
Image Stabilizing System
Self-developed technology.No limit for rolling compensation.Camera shoot on target consistently for stable and accurate reading.
Dual-coordinate Calibration Scheme
Outstanding dual-coordinate calibration scheme, which can make sure the accuracy of measurement data. Only one time calibration
can be used permanently, no need to repeated calibration.
2-Post and Mini Scissor
It can measure on the ground and adjust in higher position, as well as support the measurement and adjustment on 2-post and mini scissor lift by manual camera beam lifting system.
Free Online Data Upgrade
Over 50 thousand vehicle spec,we keep to update the car databank every year, and customers can update online by free, easy operation and save time.
Support Various Systems
Our software supports winXP, win7 and
win
10 system,m
eets the needs of different customers
Vivid 3D Guidance Video
With rich guidance videos,
It
can help users master the operation technique quickly.
Product Parameter
|
Measurement Item
|
Accuracy
|
Range
|
|
|
Display Accuracy
|
1'/0.01°/0.1mm
|
|
|
|
S.A.I(Kingpin)
|
±5’
|
35°
|
|
|
Camber
|
±2’
|
40°
|
|
|
Caster
|
±5’
|
35°
|
|
|
Toe
|
±2’
|
25°
|
|
|
Thrust Angle
|
±2’
|
10°
|
|
|
Setback
|
±2’
|
10°
|
|
|
Track Width
|
±2mm
|
|
|
|
Wheel Base
|
±2mm
|
|
|

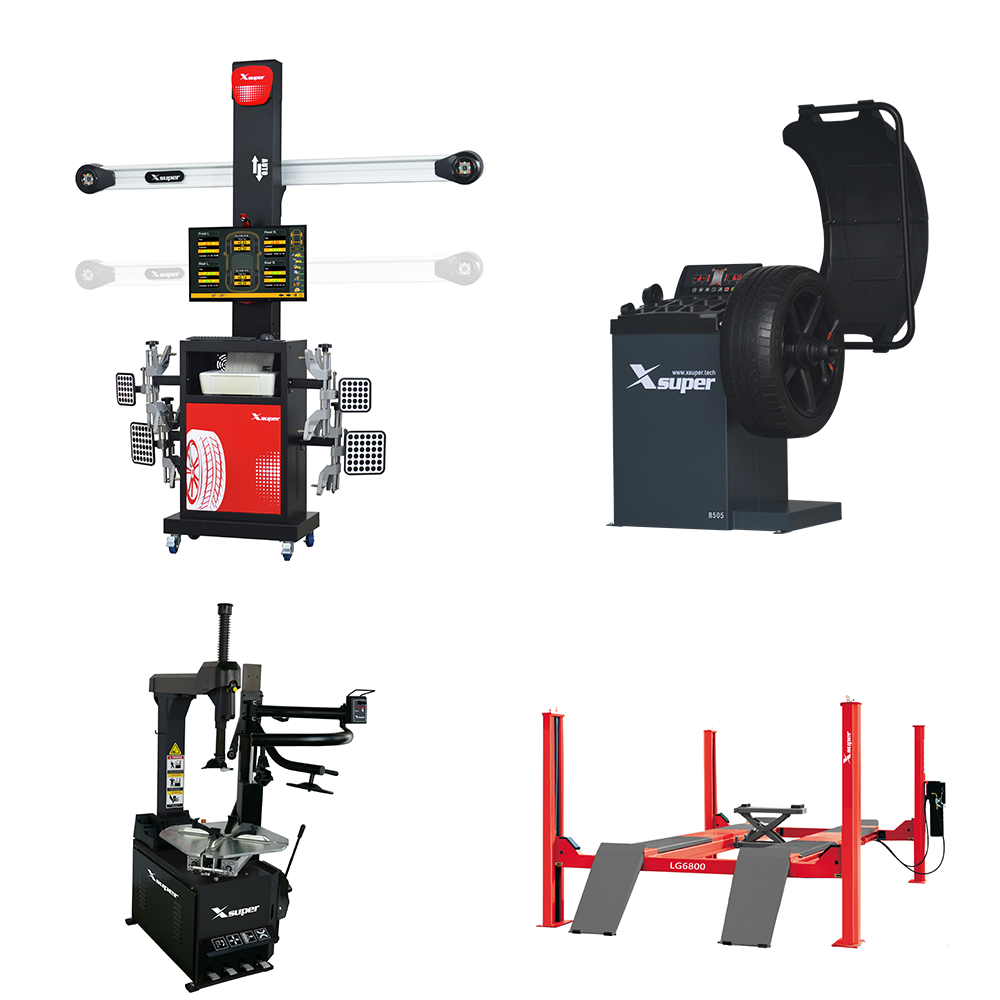

Product Spare Part List
Semi Auto Wheel Balancer
Max Wheel Diameter:22'' (558mm)
Wheel Width:1.5''-20'' (38-508mm) Rim
Diameter:10''-22'' (254-609mm) Rotating
Speed: 200rpm Power
Supply: 220v 1ph/110v 1ph Motor
Power: 0.2kw Balance Period: 8s
Balance Precision: ±1g (±0.04oz)
Second Time Mounting On
Precision: ≤5g Max. Wheel Weight: 65kg(143lb)
Net Weight : 93kg(205lb)
Gross Weight : 103kg(227lb)
Table Top Tire Changers
Specifications at a glance Rim Clamping:12''-22'' Inner Clamping:14''-24'' Max. Wheel Diameter:1100mm(43") Min.Wheel
Width:330mm(13'') Bead-Breaker Cylinder Force at 10 Bar:2800Kg Operating Pressure: 8-10bar(116-145psi) Power Supply:
110v/220v/380v(50-60hz) Motor Power: 0.75kw/1.1kw Max.Inflating Pressure: 3.5bar (50 psi)
Width:330mm(13'') Bead-Breaker Cylinder Force at 10 Bar:2800Kg Operating Pressure: 8-10bar(116-145psi) Power Supply:
110v/220v/380v(50-60hz) Motor Power: 0.75kw/1.1kw Max.Inflating Pressure: 3.5bar (50 psi)
Model： LG6800S
Lifting Capacity ：9920Lbs/4500kg
Lifting Height ：1800mm
Min Height：180mm
Platform Witdth： 520mm
Platform Length ：4680mm
Rising Time： ≤60s
Downing Time ： >30s
Voltage：220V or 380V
Net Weight：2535Lbs/1150kg
Phase：1ph or 3ph
Frequency ：50HZ or 60HZ
Lifting Capacity ：9920Lbs/4500kg
Lifting Height ：1800mm
Min Height：180mm
Platform Witdth： 520mm
Platform Length ：4680mm
Rising Time： ≤60s
Downing Time ： >30s
Voltage：220V or 380V
Net Weight：2535Lbs/1150kg
Phase：1ph or 3ph
Frequency ：50HZ or 60HZ
PACKING SIZE
A: Spare Part Box:
L:
890
mm / W:
880
mm / H:
930
mm
(L:35inch / W:34.6inch / H:37inch)
B: Column&Crossbeam Box:
L:
2830
mm / W:
420
mm / H:
400
(L:111 inch / W:17 inch / H:16 inch)
FQA
Q: Can computer and camera beam be installed in different room ?
A: Yes.We will provide different install solution according to your workshop condition.
Q:Cane we use 220V/60HZ as power supply ?
A:Yes,additional cost needed .
Q: How to update the database?
A:Freely wholelife through online .
Q:Can you customize logo, color, interface on cabinet and software interface?
Q:Cane we use 220V/60HZ as power supply ?
A:Yes,additional cost needed .
Q: How to update the database?
A:Freely wholelife through online .
Q:Can you customize logo, color, interface on cabinet and software interface?
A:Yes.As long as the LOGO function for your request. If you want to add or remove any function and database bank can be your name as well.
Q:Can I be exclusive representative?
A:We are looking for long term exclusive distributor in the whole world.Welcome to join Lawrence!
Q:Can I buy wheel aligner kit ?
A:Yes ,but please be noted that our software can only operated with our own target plates and cameras.
Q:Can I get 2 years warranty or longer warranty ?
A:We offer 1 year warranty for free.2 year warranty with extra money.
Q:Can I pay in RMB currency?
A:Yes, but we need to add extra 20% based on the current price. Because we need to pay more tax ,so we suggest you pay in US dollars.
Q:How to calibrate the camera and target plates ?
A:For camera ,useless they are totally destroyed or crashed to deformation .They don't need calibration. Camera calibration need calibration bar. Target plates calibration is simple .The calibration finished in few minutes, following software instruction.
Q:Do I need to Re-Calibrate after equipment arrived and installed ?
A:No need, we already calibration well in factory before departure.
Q:Where Calibration Data Your Battle-Axe Designed ?
A:Inside of camera processor instead of inside software ,this design will save after service time for customer when their computer break.
Q:What is delievery time ?
A:2 working days upon receiption of down payment .
Q:Could you send me a demo software ?
A:Yes. Contact us for download linkage.
Q:Could you translate the software language to our native language ?
A:We already have Spanish, English ,Portuguese, Japanese and Chinese language .If you need other language we can add it for you ,or you can help us transfer(we prefer this way ), We will offer you discount as your efforts .
Q:How to installation ?
A:Through video show training.
Q:How long is the lifetime of the machine ?
A:At least ten years, under good preservation .
Q:Can I be exclusive representative?
A:We are looking for long term exclusive distributor in the whole world.Welcome to join Lawrence!
Q:Can I buy wheel aligner kit ?
A:Yes ,but please be noted that our software can only operated with our own target plates and cameras.
Q:Can I get 2 years warranty or longer warranty ?
A:We offer 1 year warranty for free.2 year warranty with extra money.
Q:Can I pay in RMB currency?
A:Yes, but we need to add extra 20% based on the current price. Because we need to pay more tax ,so we suggest you pay in US dollars.
Q:How to calibrate the camera and target plates ?
A:For camera ,useless they are totally destroyed or crashed to deformation .They don't need calibration. Camera calibration need calibration bar. Target plates calibration is simple .The calibration finished in few minutes, following software instruction.
Q:Do I need to Re-Calibrate after equipment arrived and installed ?
A:No need, we already calibration well in factory before departure.
Q:Where Calibration Data Your Battle-Axe Designed ?
A:Inside of camera processor instead of inside software ,this design will save after service time for customer when their computer break.
Q:What is delievery time ?
A:2 working days upon receiption of down payment .
Q:Could you send me a demo software ?
A:Yes. Contact us for download linkage.
Q:Could you translate the software language to our native language ?
A:We already have Spanish, English ,Portuguese, Japanese and Chinese language .If you need other language we can add it for you ,or you can help us transfer(we prefer this way ), We will offer you discount as your efforts .
Q:How to installation ?
A:Through video show training.
Q:How long is the lifetime of the machine ?
A:At least ten years, under good preservation .
