Quick Details
-
Output Speed:
-
Depends on motor speed and ratio
-
Warranty:
-
1 year, One year after the day of ex-factory
-
Weight (KG):
-
4
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
3F Famed
-
Mounting Position:
-
Any direction
-
Gearbox Size:
-
42 ~ 220mm
-
Color:
-
Gold black or Glod blue
-
Ratio:
-
3 ~ 100
-
Packing:
-
Wooden box or carton
-
Input Form:
-
IEC Flange
-
Certificate:
-
CE & ISO
-
Structures:
-
Bearing + Gear + Box
-
Application:
-
Textile, Food Processing Machine, CNC, AGV, Robotic Industry
Quick Details
-
Gearing Arrangement:
-
Helical
-
Output Torque:
-
12 ~ 2160Nm
-
Input Speed:
-
2000 ~ 6000rpm
-
Output Speed:
-
Depends on motor speed and ratio
-
Warranty:
-
1 year, One year after the day of ex-factory
-
Weight (KG):
-
4
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
3F Famed
-
Mounting Position:
-
Any direction
-
Gearbox Size:
-
42 ~ 220mm
-
Color:
-
Gold black or Glod blue
-
Ratio:
-
3 ~ 100
-
Packing:
-
Wooden box or carton
-
Input Form:
-
IEC Flange
-
Certificate:
-
CE & ISO
-
Structures:
-
Bearing + Gear + Box
-
Application:
-
Textile, Food Processing Machine, CNC, AGV, Robotic Industry

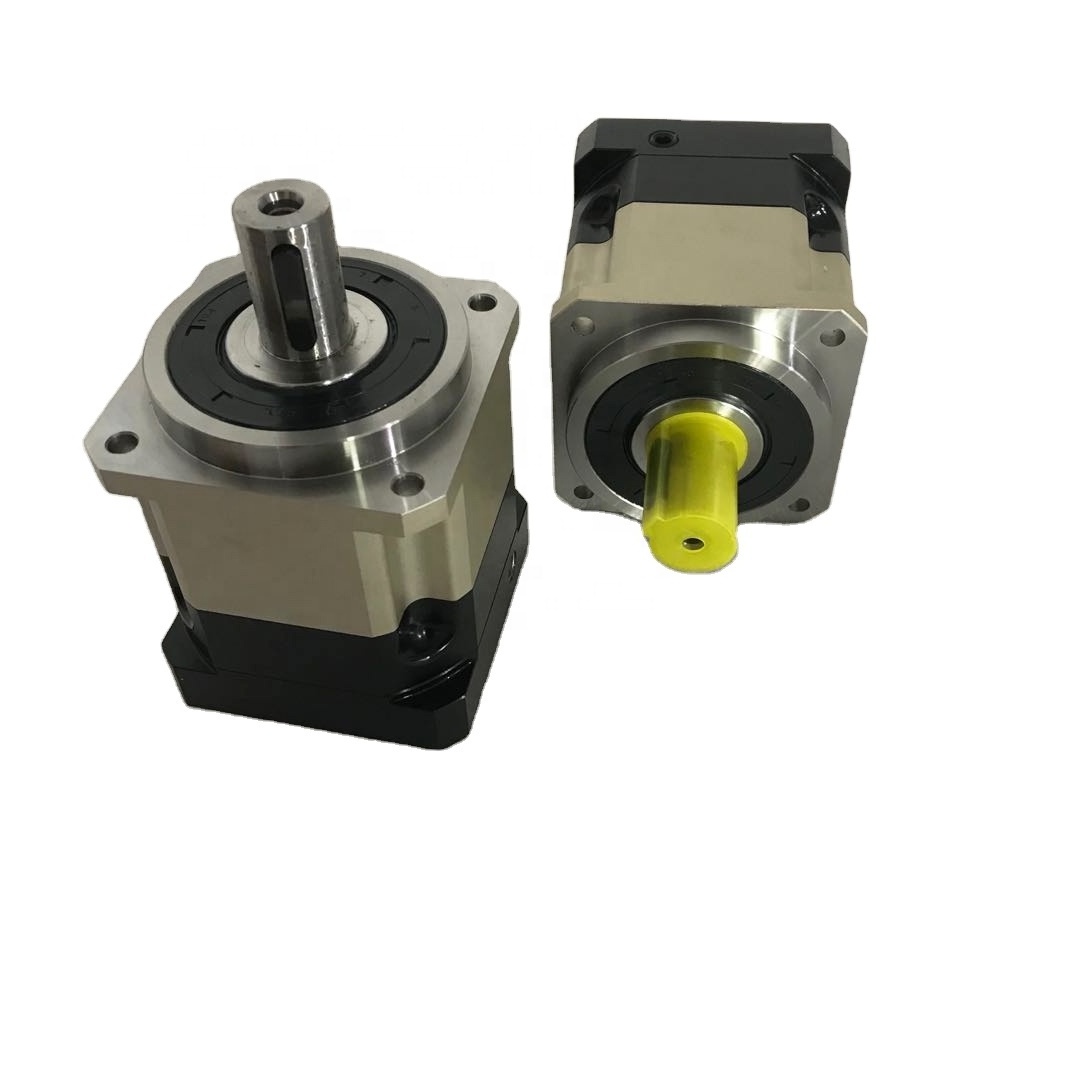

1 stage PAB series high precision high torque planetary gearbox
Our PAB is the ideal combination of precision planetary gearbox and efficient bearing technology. Its beautiful appearance and compact structure will make you want to learn more about it. PAB planetary reducer has been developed specially for delivering the maximum performance at high speeds. The innovative helical teeth safeguard low-noise operations and provide homogeneous synchronism with high efficiency. This high precision planetary gearbox minimizes vibrations, and therefore increases the quality of your workpiece surfaces even under the highest bearing loads. The perfectly sealed with lift time lubrication and any mounting direction makes PAB planetary gearbox rotate more smoothly and been operated more conveniently.
There are three kinds of output shaft for PAB planetary gearbox: solid output shaft with no keyway, output shaft with keyway and hole output. The diversity of output types make PAB planetary reducer suitable for a wide range of drive solutions.
The square input flange of PAB planetary gearbox makes it connect fast with the motor output shaft and shortening the positioning time of starting and stopping,this will increase your application flexibility.
As a professional planetary gearbox manufacturer, we offer OEM and dimension customized service, so our planetary gearboxes can match with any brands of servo motors, stepper motors and brushless DC motors and are indentical with the planetary gearboxes of competitors.
|
Backlash
|
P0 precision：≤1 arcmin
P1 precision：≤3 arcmin
P2 precision：≤5 arcmin
|
|
Size
|
PAB042,PAB060,PAB090,PAB115,
PAB142,PAB180,PAB220
|
|
Ratio
|
3, 4, 5, 6, 7, 8, 9, 10
|
|
Match motor
|
servo motor, stepper motor
|
|
Lead time
|
Standard size for 10-15 days
|
|
Warranty
|
12 months
|
|
Type
|
Planetary gearbox
|
|
Model
|
PAB 42/60/90/115/142/180/220/242/285/330
|
|
Ratio
|
3,4,5,6,7,8,9,10
|
|
Color
|
Black and Golden
|
|
Material
|
Housing:40cr Alloy steel,Aluminum alloy
|
|
|
Planetary gears:20CrMn Ti
|
|
|
Output Shaft:40cr Alloy steel
|
|
Packing
|
Carton, Honey Comb Carton, Wooden Case with wooden pallet
|
|
Warranty
|
1 Year
|
|
Input Power
|
0.05kw,0.1kw,0.2kw,0.4kw,0.75kw,2kw,2.5kw,5kw,11kw,15kw
|
|
Usages
|
Industrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing,Wood working, Glass,New energy,mine,machine,Heavy industry
equipment,Industrial automation |
|
Lubricant
|
Special gear oil
|
Q: Are you manufacturer or trader?
A:We are manufacturer. Sincerely welcome to visit our company. And we can have a video conference first if you are convenient.
Q: What're your main products?
A: We currently supply planetary gearbox, harmonic gearbox, steering gearbox, RV cycloidal pin-wheel gearbox, worm gearbox, servo motor and stepper motor, electric cylinder and slide, coupling,etc. E-catalog is ready for you if you are interested.
Q: How to select a suitable gearbox?
A: Please show us your motor details or drawings. And also please advise working condition, load, output torque, output speed or reduction ratio, backlash, etc. Then we will recommend the suitable model. If you are unable to show all of above parameters, please contact us, then we will guide you step by step.
Q: Can I get the 3D and 2D drawings?
A: Sure, we have the standard drawings. Also the input size of gearbox can be customized according to different motors.
Q: Do you have an individual design service ?
A: Yes, we would like to design products individually for our customers, but it may need some mold developing cost and design charge.
Q: What's your lead time?
A:Generally speaking, we keep many stocks of regular standard product, if shortage of stocks, it will need 15-20 days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
