Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Shangshi
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
1800*2200*2350mm
-
Marketing Type:
-
New Product 2021
-
Weight (KG):
-
6000 kg
-
Product Name:
-
full automatic hydraulic concrete interlocking block making machine
-
Color:
-
Customied
-
Application:
-
Buliding Construction
-
Molding cycle:
-
15-20s
-
Motor:
-
100% Copper Wire
-
Keywords:
-
Automatic Cement Block Moulding Machine
-
Advantage:
-
High Efficiency
-
Worker:
-
2-3 Worker
-
Cycle time:
-
20-26seconds
-
Function:
-
Multifunctinal
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other
-
Brick Raw Material:
-
Cement Concrete
-
Production Capacity (Pieces/8 hours):
-
7200-50000pcs/8hours
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Shangshi
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
1800*2200*2350mm
-
Marketing Type:
-
New Product 2021
-
Weight (KG):
-
6000 kg
-
Product Name:
-
full automatic hydraulic concrete interlocking block making machine
-
Color:
-
Customied
-
Application:
-
Buliding Construction
-
Molding cycle:
-
15-20s
-
Motor:
-
100% Copper Wire
-
Keywords:
-
Automatic Cement Block Moulding Machine
-
Advantage:
-
High Efficiency
-
Worker:
-
2-3 Worker
-
Cycle time:
-
20-26seconds
-
Function:
-
Multifunctinal
Product Description

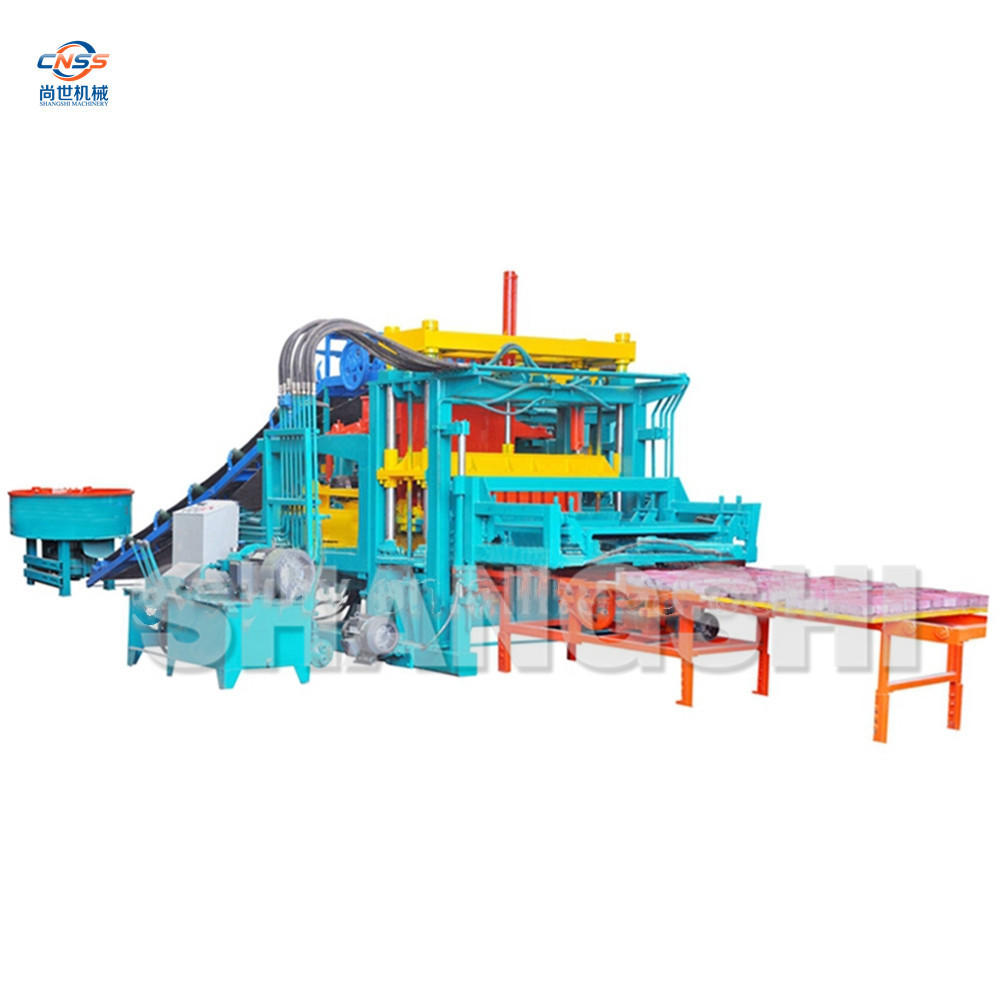

full automatic hydraulic concrete interlocking block making machine
full automatic hydraulic concrete interlocking block making machine
. It can produce different specifications of solid brick, hollow brick, Curb stone, Paving brick, grass brick, slope protection brick and other cement products by changing different moulds. Equipment with pigment device, so it be able to produce colourful paving brick.
The compressive strength of the concrete block produced by this forming equipment can reach 7.5-20MP, the density is high, the frost resistance and impermeability are good, the sound insulation, the heat insulation, the heat preservation performance are good, and the shape size is accurate.
|
Specification(mm)
|
Brick type
|
Number of one-time forming
|
|
100×200×60(80)
|
Bread bricks/S type bricks
|
18-20 blocks
|
|
238×115×52.5
|
National standard wall bricks
|
32 block
|
|
390×190×190
|
Hollow brick
|
5 blocks
|
|
Within1000×500×300
|
Curb stone
|
1 block
|
Brick size and shape can be designed as your request:
Concrete blocks:
Paver blocks:
full automatic hydraulic concrete interlocking block making machine
1.This machine can produce large-scale cement products, so that users have a greater choice of production direction;
2.The combination of vibration and pressure makes all kinds of molding blocks have strong crushing resistance.
3.Changing moulds can produce all kinds of special-shaped blocks.
4.The equipment can press forming more pieces of cement bricks at a time, and the output is high.
2.The combination of vibration and pressure makes all kinds of molding blocks have strong crushing resistance.
3.Changing moulds can produce all kinds of special-shaped blocks.
4.The equipment can press forming more pieces of cement bricks at a time, and the output is high.
full automatic hydraulic concrete interlocking block making machine
1.Electric system adopts PLC programmable controller, equipped with data output device and control system including security logic control and fault diagnosis system
2.Employ 5.7 -inch colorful touch screen from Japan Mitsubishi, hydraulic components are imported, high -dynamic performance proportional valve, adjusting the volume of oil according to different steps, accurately control the actions of key parts.
3.Engine body with high precision, high strength castings and special welding technology and materials manufacturing, good tolerance, resistance to vibration, long service life.
4.Engine body employ four-bar oriented method to make sure the accurate movement of pressure head and mold.
2.Employ 5.7 -inch colorful touch screen from Japan Mitsubishi, hydraulic components are imported, high -dynamic performance proportional valve, adjusting the volume of oil according to different steps, accurately control the actions of key parts.
3.Engine body with high precision, high strength castings and special welding technology and materials manufacturing, good tolerance, resistance to vibration, long service life.
4.Engine body employ four-bar oriented method to make sure the accurate movement of pressure head and mold.
Packaging & Shipping
full automatic hydraulic concrete interlocking block making machine
1.Standard export packing or according to customer's requirements.
2.If bulk purchasing,we will use standard container
2.If bulk purchasing,we will use standard container
full automatic hydraulic concrete interlocking block making machine
1.Lead time for mass production:within 3 days after received 50% deposit.
2.Delivery date:within 5 days after received balance payment.
3.After the confirmation of the order,the buyers should pay 30% deposit,the rest can be pay off in two weekdays before shipping the goods off.
2.Delivery date:within 5 days after received balance payment.
3.After the confirmation of the order,the buyers should pay 30% deposit,the rest can be pay off in two weekdays before shipping the goods off.
