Quick Details
-
Brand Name:
-
CDOE
-
Model Number:
-
HBDGQ22F-10WE/P/A
-
IP level:
-
IP65
-
Product name:
-
Metal push button switch
-
Head shape:
-
Flat round
-
Operation type:
-
Momentary
-
Contact configuration:
-
1NO
-
Terminal type:
-
Flying leads
-
Material:
-
Aluminum
-
Protection class:
-
IP65,IK08
-
Certificate:
-
TUV,CE,ROHS,CCC
-
operation stroke:
-
1.0mm
-
Personal customization:
-
Available
Quick Details
-
Max. Current:
-
50mA
-
Max. Voltage:
-
24Vdc
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CDOE
-
Model Number:
-
HBDGQ22F-10WE/P/A
-
IP level:
-
IP65
-
Product name:
-
Metal push button switch
-
Head shape:
-
Flat round
-
Operation type:
-
Momentary
-
Contact configuration:
-
1NO
-
Terminal type:
-
Flying leads
-
Material:
-
Aluminum
-
Protection class:
-
IP65,IK08
-
Certificate:
-
TUV,CE,ROHS,CCC
-
operation stroke:
-
1.0mm
-
Personal customization:
-
Available
Parameter
|

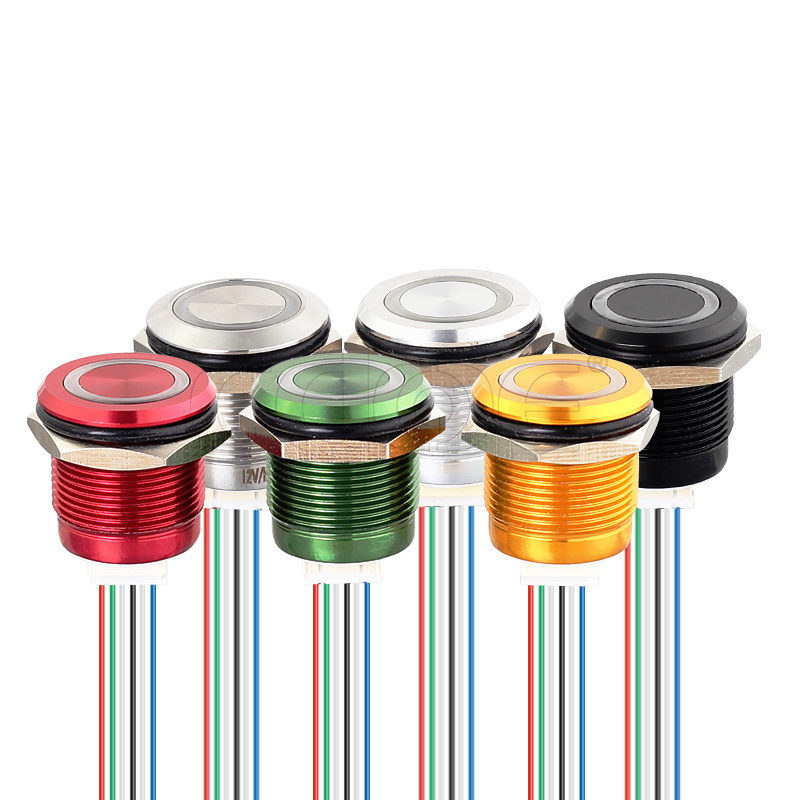

Metal Push Button Switch With Led
|
|
|
|
|
||||
|
Mounting hole size :
|
|
|
22mm
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
Switch value:
|
|
|
50mA/12Vdc
|
|
||||
|
Operation type:
|
|
|
Momentary
|
|
||||
|
Contact configuration:
|
|
|
1NO
|
|
||||
|
Head shape：
|
|
|
Flat
|
|
||||
|
Crust material:
|
|
|
Aluminum
|
|
||||
|
Terminal type:
|
|
|
Flying leads
|
|
||||
|
Electrical life :
|
|
|
≥50,000 times
|
|
||||
|
Mechanical life:
|
|
|
≥1,000,000 times
|
|
||||
|
Protection grade :
|
|
|
IP65
|
|
||||
|
Contact material:
|
|
|
Silver alloy
|
|
||||
|
Illumination type:
|
|
|
Ring illumination
|
|
||||
|
Led color:
|
|
|
R G B O W Y (One led)
|
|
||||
|
|
|
|
Red/Green,Red/Blue,Red/White bi-color led
|
|
||||
|
|
|
|
Red-Green-Blue tri-color led
|
|
||||
|
Led voltage:
|
|
|
2V(3V),5V(6V),12V,24V,36V,110V,220V
|
|
||||
|
Led life:
|
|
|
50,000 hours
|
|
||||
