Quick Details
-
Power (kW):
-
1.5
-
Range of Spindle Speed(r.p.m):
-
4000 - 7200 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
jincheng
-
Voltage:
-
110/220/380/400/415V
-
Dimension(L*W*H):
-
1350*470*910MM
-
Weight (KG):
-
242 KG
-
After-sales Service Provided:
-
wheat grinding machine
-
supplier type:
-
real manufacture,factory
-
processed powder:
-
20-120mesh
-
english manual:
-
available
-
video:
-
available
-
Size:
-
590*380*670mm
-
material:
-
SS304/316
-
Capacity:
-
2-800KG/H
-
Certification:
-
ISO9001
Quick Details
-
Output (kg/h):
-
2 - 500 kg/h
-
Feeding Size (mm):
-
5 - 8 mm
-
Output Size (mesh):
-
20 - 120 mesh
-
Power (kW):
-
1.5
-
Range of Spindle Speed(r.p.m):
-
4000 - 7200 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
jincheng
-
Voltage:
-
110/220/380/400/415V
-
Dimension(L*W*H):
-
1350*470*910MM
-
Weight (KG):
-
242 KG
-
After-sales Service Provided:
-
wheat grinding machine
-
supplier type:
-
real manufacture,factory
-
processed powder:
-
20-120mesh
-
english manual:
-
available
-
video:
-
available
-
Size:
-
590*380*670mm
-
material:
-
SS304/316
-
Capacity:
-
2-800KG/H
-
Certification:
-
ISO9001

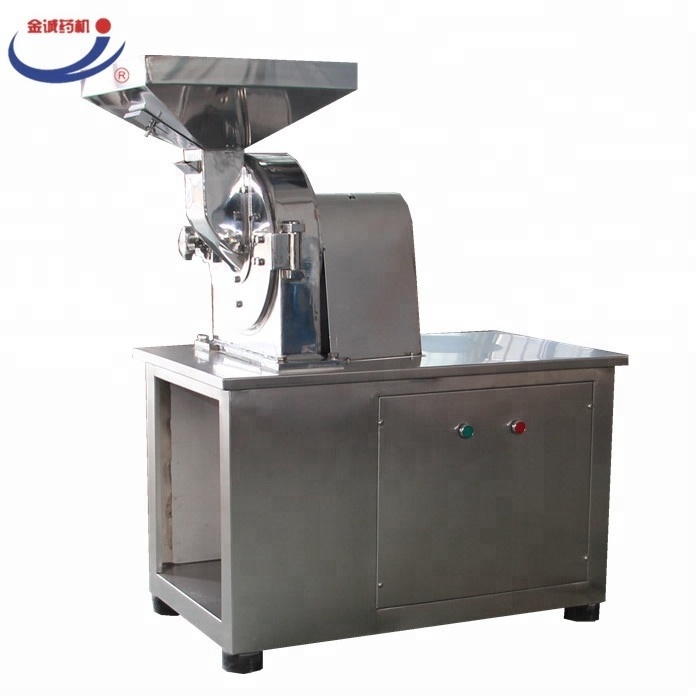

commercial pepper grinder machine
commercial pepper grinder machine consist of universal pulverizer , dust collecting cabinet and dedusting collector, preventing dust flying during powder grinding , suits for pulverizing sugar, herbs, chemical products, food materials and spices etc into the powder of 20-120mesh.
The part of commercial pepper grinder machine , ESC collector, and the dust-collector, are all made of stainless steel and in conformity with the GMP grade. There are some kinds of grinding part for choice according to different kinds of raw material to be pulverized, such as
-hammer type for chilli grinding machine
-fluted disc type for grinding granules,
-hammer tossing type, for root like stuff, etc.
- Water cooling, and charging impellor can be assembled according user’s requirement.
Specification of commercial pepper grinder machine
|
Model |
130B |
180B |
250B |
320B |
420B |
520B |
|
Capacity(kg/h) |
2-5kg/h |
10-30kg/h |
50-250kg/h |
80-300kg/h |
160-500kg/h |
300-800kg/h |
|
Speed of principal axis(r/min) |
4200 |
4200 |
4200 |
4200 |
3200 |
3200 |
|
Working noise(db) |
<85 |
<85 |
<85 |
<85 |
<85 |
<85 |
|
Finesess of Processed power (mesh) |
20-120 |
20-120 |
20-120 |
20-120 |
20-120 |
20-120 |
|
Power of Motor (kw) |
1.5 |
2.2 |
5.5 |
7.5 |
11 |
18.5 |
|
Power of Fan (kw) |
0.18 |
0.18 |
0.75 |
0.75 |
1.1 |
1.5 |
|
Overall size(mm) |
890*500*1260 |
890*500*1260 |
1100*650*1500 |
1250*1070*1300 |
1350*1070*1700 |
1500*1000*1750 |
|
Weight(kg) |
100 |
120 |
250 |
300 |
400 |
600 |
We have B series Pulverizer
B Series Pulverizer
SF Pulverizer:
|
Model |
SF250 |
SF320 |
SF420 |
SF520 |
SF620 |
|
Capacity(kg/h) |
50-250 |
80-300 |
200-400 |
300-800 |
500-1000 |
|
Speed of principal axis(r/min) |
4200 |
4200 |
3200 |
3200 |
2800
|
|
Working noise(db) |
<85 |
<85 |
<85 |
<85 |
<85 |
|
Fineness (mesh) |
20-120 |
20-120 |
20-120 |
20-120 |
20-120 |
|
Power(KW) |
5.5 |
7.5 |
11 |
18.5 |
22
|
|
Overall size(mm) |
630*490*1160 |
810*500*1230 |
700*500*1500 |
1170*750*1800 |
1700*850*1940 |
|
Weight(kg) |
155 |
208 |
258 |
500 |
78 |
