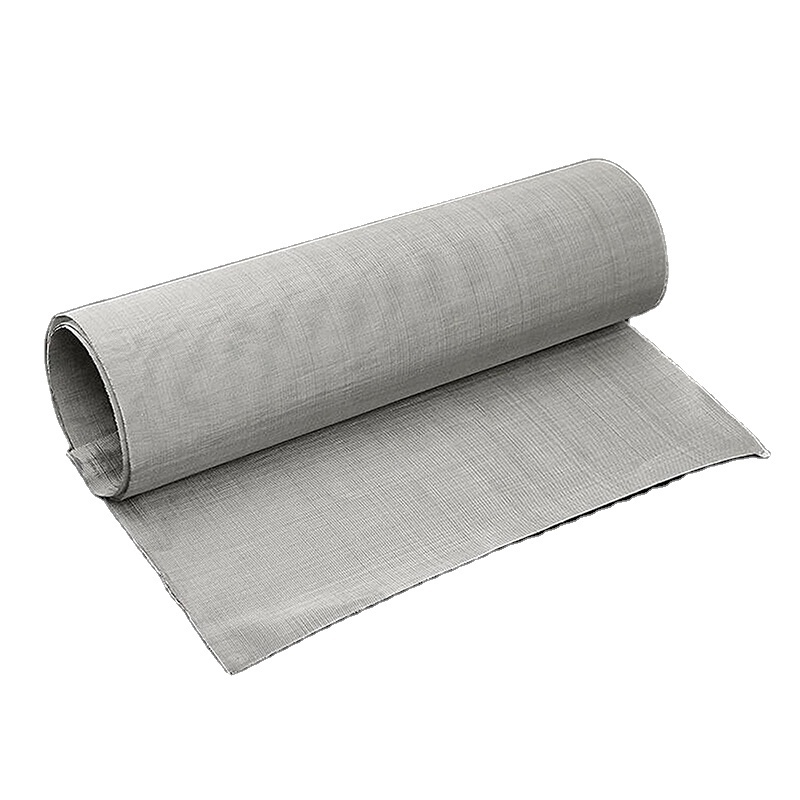

Stainless Steel Wire Mesh 20 26 39 36 48 Micron Plain Screen Woven Mesh Cloth

Stainless Steel Wire Mesh 20 26 39 36 48 Micron Plain Screen Woven Mesh Cloth

FOB Reference Price: Get Latest Price

≥30 Square meters

US $10

≥100 Square meters

US $5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Zhejiang, China

Model Number:: GSM-011

Brand Name:: GSM

Product name:: Plain Weave Wire Mesh

Width:: 0.5-2M

Hole shape:: Square

Usage:: Main function is filtering,screeing and sieving.

Aperture:: 0.038-6.7MM

Certification:: ISO9001:2015

Quick Details

Material:: STAINLESS STEEL WIRE

Type:: Wire Cloth

Application:: Woven Wire Mesh

Place of Origin:: Zhejiang, China

Model Number:: GSM-011

Brand Name:: GSM

Product name:: Plain Weave Wire Mesh

Width:: 0.5-2M

Hole shape:: Square

Usage:: Main function is filtering,screeing and sieving.

Aperture:: 0.038-6.7MM

Certification:: ISO9001:2015

Products Description

Plain/Twill Weave Wire Mesh

Product Name	Stainless steel woven wire mesh,Stainless steel mesh screen, Stainless steel wire cloth,Stainless steel wire mesh
Material Grade	304,304L,316,316L,310S,904L etc
Wire Diameter Range	0.02-6.30mm
Mesh Width	1 m,1.22m,1.5m,1.8m,2.0m or customized
Mesh Length	Usually 30m per roll, any length can be customized
Test Report	PMI raw material test
Feature	Corrosion resistant, acid resistant, alkali resistant, heat resistant
Samples	Available

Woven wire mesh or woven wire cloth, is woven by machine. It is similar to the process of weaving clothing, but made of stainless steel wire. The mesh can be made through different weave styles. The purpose is to produce solid and reliable products to adapt to various complex application environments. High precision technology makes the production cost of woven wire mesh higher, but it also has a very wide range of uses.

Mesh, Mesh Count, And Micron Size:

Mesh Count and Micron Size are very important terms in the wire mesh industry. The Mesh count is actually the number of holes in an inch length, so the smaller mesh count, the hole is bigger. The Micron Size actually means the hole size. Can be in micron or mm. In order to make it easier for people to understand the number of the holes of the wire mesh, these two specifications are usually used together. This is the key component of specifying the wire mesh. The Mesh Count determines the filtering performance and function of the wire mesh. Micron Size = size of mesh hole. (larger the micron size, larger the mesh hole) More intuitive expression: Mesh Count = number of mesh hole. (larger the mesh count, the smaller the mesh hole).

Product Application:

The petroleum, chemical environmental protection, mining, aerospace, paper making, electronic, metallurgical, food and pharmaceutical industries all utilize woven wire mesh. Main function is filtering, screeing and sieving.

Wire Mesh Size (plain,twill weave)
Sr No	Mesh	Gauge	Wire Dia In mm	Aperture/Opening In Microns	WVSq Mtr Kgs	Weave	% Open Area
1	8	24	0.558	2617	1.228	Plain	67.94
2	8	26	0.457	2718	0.824	Plain	73.28
3	8	27	0.400	2775	0.631	Plain	76.39
4	8	28	0.376	2799	0.558	Plain	77.72
5	10	24	0.558	1982	1.535	Plain	60.89
6	10	26	0.457	2083	1.030	Plain	67.25
7	10	28	0.376	2164	0.697	Plain	72.59
8	12	24	0.558	1559	1.842	Plain	54.23
9	12	26	0.457	1660	1.236	Plain	61.48
10	12	27	0.400	1717	0.947	Plain	65.78
11	12	28	0.376	1741	0.836	Plain	67.63
12	12	30	0.315	1802	0.587	Plain	72.45
13	12	30.5	0.300	1817	0.532	Plain	73.66
14	14	24	0.558	1256	2.149	Plain	47.95
15	14	26	0.457	1357	1.441	Plain	55.97
16	14	27	0.400	1414	1.104	Plain	60.77
17	16	27	0.400	1188	1.262	Plain	55.96
18	16	28	0.376	1212	1.115	Plain	58.24
19	16	30	0.315	1273	0.783	Plain	64.25
20	16	30.5	0.300	1288	0.710	Plain	65.78
21	16	26	0.457	1131	1.647	Plain	50.71
22	18	26	0.457	954	1.853	Plain	45.72
23	18	28	0.376	1035	1.255	Plain	53.81
24	20	26	0.457	813	2.059	Plain	40.98
25	20	28	0.376	894	1.394	Plain	49.55
26	20	30	0.315	955	0.978	Plain	56.55
27	20	30.5	0.300	970	0.887	Plain	58.34
28	20	32	0.274	996	0.740	Plain	61.51
29	20	32.5	0.264	1006	0.687	Plain	62.75
30	24	30	0.315	743	1.174	Plain	49.33
31	24	30.5	0.3	758	1.065	Plain	51.34
32	24	32	0.274	784	0.888	Plain	54.92
33	24	32.5	0.264	794	0.825	Plain	56.33
34	24	36	0.193	865	0.441	Plain	66.85
35	28	30	0.315	592	1.370	Plain	42.61
36	28	30.5	0.300	607	1.242	Plain	44.80
37	28	32	0.274	633	1.036	Plain	48.71
38	28	32.5	0.264	643	0.962	Plain	50.26
39	30	30	0.315	532	1.468	Plain	39.43
40	30	30.5	0.300	547	1.331	Plain	41.69
41	30	32	0.274	573	1.110	Plain	45.75
42	30	32.5	0.264	583	1.031	Plain	47.36
43	30	34	0.234	613	0.810	Plain	52.36
44	35	32	0.274	452	1.295	Plain	38.74
45	35	32.5	0.264	462	1.203	Plain	40.48
46	35	34	0.234	492	0.945	Plain	45.91
47	35	36	0.193	533	0.643	Plain	53.88
48	35	37	0.173	553	0.516	Plain	58.01
49	36	32	0.274	432	1.332	Plain	37.41
50	40	32	0.274	361	1.480	Plain	32.32
51	40	32.5	0.264	371	1.374	Plain	34.14
52	40	33	0.254	381	1.272	Plain	36.00
53	40	34	0.234	401	1.080	Plain	39.88
54	40	36	0.193	442	0.735	Plain	48.45
55	40	37	0.173	462	0.590	Plain	52.93
56	40	38	0.152	483	0.456	Plain	57.86
57	42	38.5	0.140	465	0.406	Plain	59.06
58	50	34	0.234	274	1.350	Plain	29.09
59	50	36	0.193	315	0.918	Plain	38.45
60	50	38	0.152	356	0.570	Plain	49.11
61	60	34	0.234	189	1.620	Twill	20.00
62	60	36	0.193	230	1.102	Plain	29.60
63	60	37	0.173	250	0.885	Plain	34.97
64	60	38	0.152	271	0.683	Plain	41.08
65	80	38	0.152	166	0.911	Twill	27.17
66	80	38.5	0.140	178	0.773	Plain	31.25
67	80	40	0.122	196	0.587	Plain	37.91
68	80	42	0.102	216	0.410	Plain	46.07
69	80	43	0.091	227	0.327	Plain	50.89
70	93	41	0.112	161	0.575	Plain	34.80
71	100	41	0.112	142	0.618	Plain	31.25
72	100	42	0.102	152	0.513	Plain	35.81
73	100	43	0.091	163	0.408	Plain	41.18
74	100	44	0.081	173	0.323	Plain	46.39
75	100	45.5	0.063	191	0.196	Plain	56.55
76	120	43	0.091	121	0.490	Plain	32.50
77	120	44	0.081	131	0.388	Plain	38.11
78	120	45	0.070	142	0.290	Plain	44.80
79	120	45.5	0.063	149	0.235	Plain	49.33
80	140	45	0.070	111	0.338	Plain	37.72
81	150	45	0.070	99	0.362	Plain	34.41
82	150	45.5	0.063	106	0.294	Plain	39.43
83	150	47	0.050	119	0.185	Plain	49.66
84	170	45.5	0.063	86	0.333	Plain	33.45
85	170	47	0.050	99	0.210	Plain	44.27
86	200	47	0.050	77	0.247	Plain	36.76
87	240	47	0.050	56	0.296	Plain	27.83
88	250	48	0.040	62	0.197	Plain & Twill	36.76
89	300	48	0.040	45	0.237	Twill	27.83
90	300	49	0.030	55	0.133	Plain & Twill	41.69
91	320	49	0.030	49	0.142	Twill	38.69
92	325	48	0.040	38	0.256	Twill	23.83
93	325	48.5	0.035	43	0.196	Twill	30.49
94	325	49	0.030	48	0.144	Plain & Twill	37.96
95	400	49.5	0.028	36	0.155	Twill	31.25
96	400	50	0.025	39	0.123	Twill	36.76
97	500	50	0.025	26	0.154	Twill	25.79
98	635		0.0183	20	0.1	Twill	25

Our Services

1. Our tenet is Prestinge First , Quality First , Efficiency First and Service First . 2. Quick-respond： All inquires will be replied within 2-4 hours 3. High Quality , Reasonable prices , prompt delivery , perfect after-sales services .

4. Quality Quarantee : A. All goods strictly inspected during production. B. All products must be checked strictly before packing. C. Every consignment must be re-inspected before shipment. D. You are more than welcomed to my factory to inspect the goods at any time. 5. Payment made via TT, LC, Western Union or DP . 6. Shipment : A. Small and light and valuable goods will be sent by DHL, TNT, UPS, FED by airplane. B. Large and heavy goods will be shipped by LCL, FCL or bulk vessel.

About Us

Tiantai Global Screen Mesh Co., Ltd. w as estab l ished in 1995 with registered capital of RMB sixteen million. Located in Taizhou, Zhejiang which is famous for the dynamic private sector of the economy. We are only two hours' driver to Hangzhou, Ningbo, Wenzhou, Yiwu. Our main products include stainless steel wire mesh, copper wire mesh, welded wire mesh, wire mesh conveyor belt mesh, stainless steel customer products, filter cloth and so on. We have more than twenty years of manufacturing experiences.

Our company has more than 150 workers and 200 sets of mechanical equipment and employs experienced technical and management personnel. Our annual production capacity is about 1,600,000 square meters. We attained ISO9001 certification and Dun & Bradstreet authentication, and our products have passed the ROHS Test.

Our main market is USA, Germany, France, UK, Spain, Sweden, Switzerland, Norway, Australia, Italy, Netherland, Canada and so on. Our tenet is Specialized operation, Integrity service, Customer Orientation. We sincerely hope that with superior products, reasonable price and perfect services, there can be Perfect cooperation with every customer.

Production Line

Certifications

Our Advantages

1. Our company produce strictly follow quality standards and manufacture metal products according to international standards.

2. Over twenty years of development, we have a mature production line, experienced workers and a technical team that is good at solving various problems of customers.

3. Products has been exported to Europe, North American, the Middle East, South East Asia , Africa ,Asia , European, other countries and regions.
4. Focus on details, from communication, customization, production, packaging, and transportation to after-sales, every link is handled carefully.
5:Passed ISO 9001:2015 quality management system certification.
