- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
JFOPT
-
Use:
-
Telecommunication, FTTH
-
Warranty Time:
-
12 months, 1 Year
-
Port:
-
4, 6, 8, 12 for option
-
Aapter ports:
-
SC, FC, LC, ST
-
Size:
-
JFOPP-FTB00-A-002: 260*133*42mm; JFOPP-FTB00-A-001: 170*120*44mm
-
Material:
-
Cold rolled steel sheet
-
Color:
-
Black or customized
-
Service:
-
ODM, OEM
-
Certificate:
-
ROHS, ISO9001, ISO14001
Quick Details
-
Type:
-
Patch Panel, Terminal Box, ODF, wall mounted box
-
Model Number:
-
JFOPP-FTB00-A-002, JFOPP-FTB00-A-001
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JFOPT
-
Use:
-
Telecommunication, FTTH
-
Warranty Time:
-
12 months, 1 Year
-
Port:
-
4, 6, 8, 12 for option
-
Aapter ports:
-
SC, FC, LC, ST
-
Size:
-
JFOPP-FTB00-A-002: 260*133*42mm; JFOPP-FTB00-A-001: 170*120*44mm
-
Material:
-
Cold rolled steel sheet
-
Color:
-
Black or customized
-
Service:
-
ODM, OEM
-
Certificate:
-
ROHS, ISO9001, ISO14001

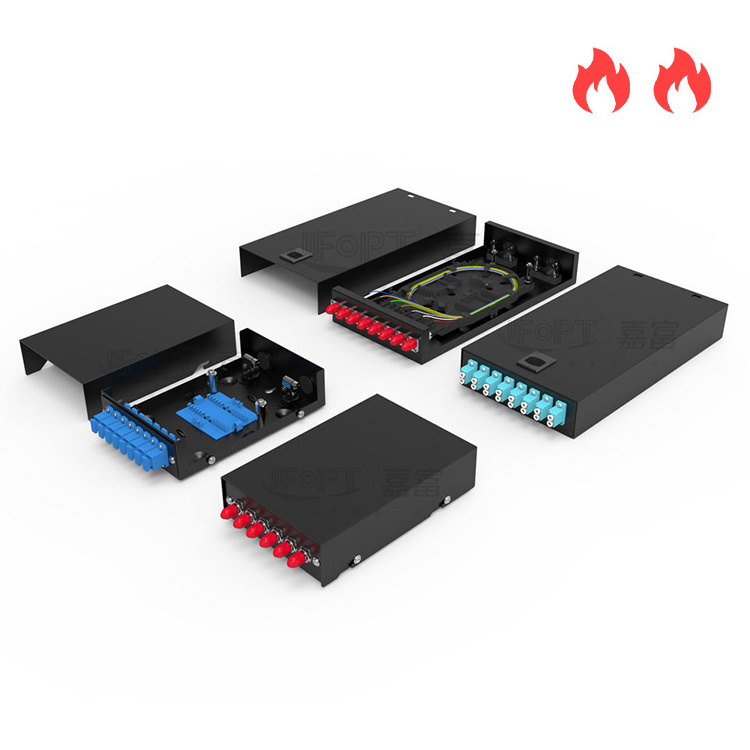

FTTH Wall Mounted Fiber Patch Panel 4 8 12 Ports Desktop Type Metal Universal Pigtail Mini Box SC LC FC ST Optical Terminal Box
PRODUCT TYPES CHOOSING
Metal Terminal Box with Buckle Lock
Mini Terminal Box
Optical terminal box is mainly used for the connection between outdoor cables and indoor fibers and the storage of the extra fibers, convenient for the maintenance and management. This model can be widely applied for network system, data and video transmitting system and CATV etc.
ORDERING INFORMATION
|
Item
|
Parameter
|
|
Mounting way
|
Wall mounting, desktop
|
|
Adapter Port
|
SC simplex, SC duplex, LC duplex, FC, ST
|
|
Capacity
|
4, 6, 8, 12
|
|
Fiber mode
|
SM / OM1/OM2.OM3/OM4
|
PRODUCT DETAILS
Convenient assemble
and disassemble
The top cover locked with the bottom base by buckle, easy to assemble and disassemble.
Various mounted ways
Several mounted ways for options: on wall, ground, or in channel, control cabinet.
Cable entry from rear
Two Φ15mm inlets on the rear of the box for cable entry. Together with rubber plugs, cable clamps and cable central reinforcement clamps, the inlet cable can be fixed tightly and safely.
Mini size
Super mini size for much smaller space.
Convenient assemble and disassemble
The top cover locked with the bottom base by buckle, easy to assemble and disassemble.
Various mounted ways
Several mounted ways for options: on wall, ground, or in channel, control cabinet.
Cable entry from rear
Two Φ15mm inlets on the rear of the box for cable entry. Together with rubber plugs, cable clamps and cable central reinforcement clamps, the inlet cable can be fixed tightly and safely.
