Quick Details
-
Panel Size:
-
320*160mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P10 320*160mm
-
Product name:
-

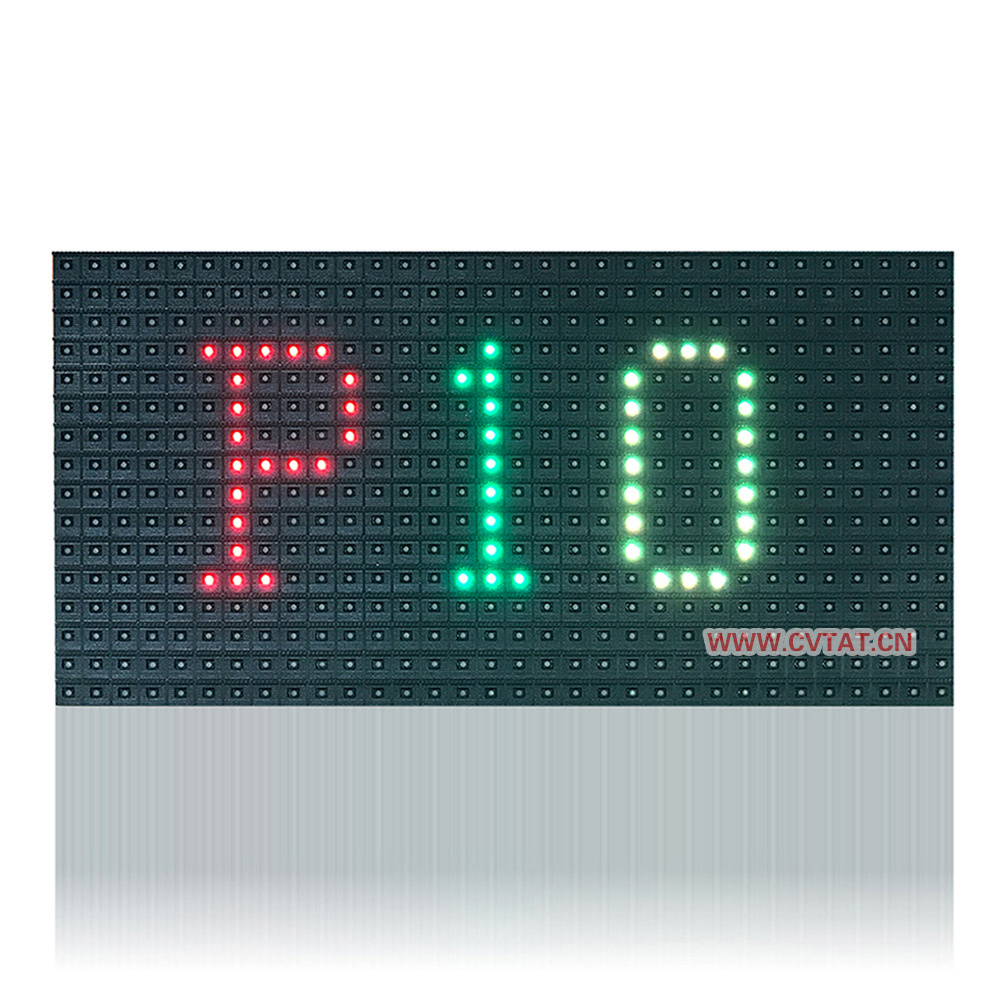

P10 Indoor Led Display Module
-
Pixel configuration:
-
SMD 3-in-1
-
Control system:
-
Linsn/Novastar/Huidu
-
Warranty:
-
2-5 Years
-
Certificate:
-
CE ROHS FCC
Quick Details
-
Application:
-
Indoor
-
Brand Name:
-
CVTAT
-
Color:
-
Full color
-
Panel Size:
-
320*160mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P10 320*160mm
-
Product name:
-
P10 Indoor Led Display Module
-
Pixel configuration:
-
SMD 3-in-1
-
Control system:
-
Linsn/Novastar/Huidu
-
Warranty:
-
2-5 Years
-
Certificate:
-
CE ROHS FCC
Products Description
|
Unit Module
|
Item
|
Parameter
|
|
|
Model Number
|
P10
|
|
|
Module size
|
320mm*160mm
|
|
|
Pixel pitch
|
10mm
|
|
|
Pixels Density
|
10000 / ㎡
|
|
|
Pixel configuration
|
1R1G1B
|
|
Unit Module
|
Package mode
|
SMD3528
|
|
|
Pixel resolution
|
32dots(W)*16 dots(H)
|
|
|
Max Power
|
15W
|
|
|
Weight
|
0.31kg
|
|
|
Drive type
|
Constant drive
|
|
|
Scan mode
|
1/8scan
|
|
|
Port type
|
HUB75
|
|
|
Brightness of white balance
|
≥1500cd/m2
|
|
|
Best viewing distance
|
5M～20M
|
|
|
Best viewing angle
|
160°(W) 120°(H)
|
|
|
Temperature
|
storage:-35℃～+85℃
|
|
|
|
working:-20℃～+50℃
|
|
|
Relative humidity
|
10%-95%
|
|
|
Working voltage
|
DC 5V
|
|
Power
|
Average Power consumption
|
<200W/㎡
|
|
Power
|
Max.Power consumption
|
<780W/㎡
|
|
|
Current
|
<18mA(single LED)
|
|
|
Driving device
|
Constant drive IC
|
|
Main technical parameter
|
Refresh frequency
|
>1920HZ
|
|
Main technical parameter
|
Grey scale/colors
|
|
|
|
|
16384gray level/16.7M colors
|
|
|
MTBF
|
>9000hours
|
|
|
Power switch
|
Automatic switch
|
