Quick Details
-
Place of Origin:
-
Shandong, China
-
Machine Weight:
-
890 kg
-
Marketing Type:
-
Hot Product 2023
-
Name:
-

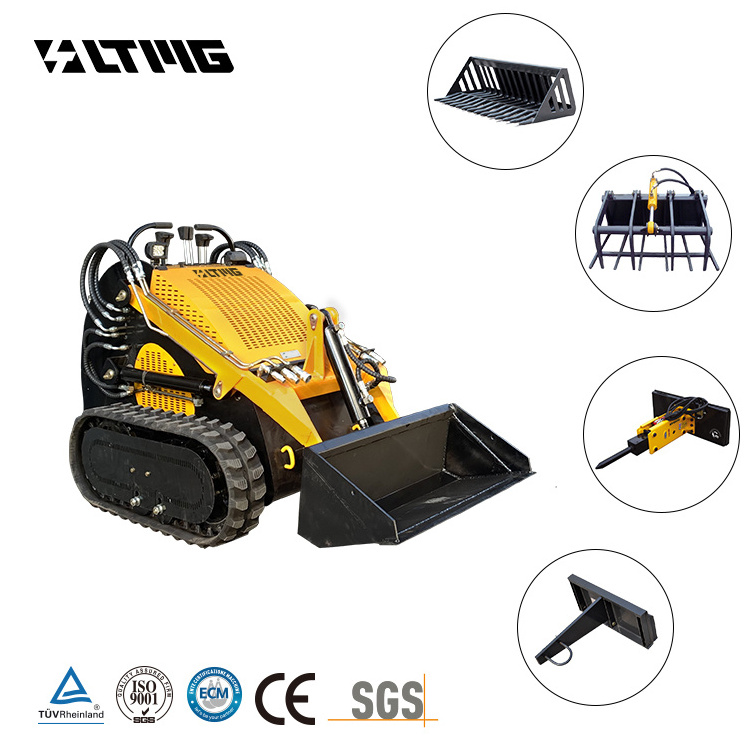

Hot small multipurpose hydraulic skid steer loader hedge trimmer
-
Product type:
-
Skid Steer Loader
-
Keyword:
-
Skid Steer Loader attachment
-
Engine model:
-
XINCHAI
-
Dumping height:
-
2380mm
-
Operating weight:
-
300kg
-
Wheelbase:
-
600mm
-
Ground clearance:
-
180mm
-
Bucket width:
-
800mm
Quick Details
-
Engine Brand:
-
XINCHAI
-
Power:
-
16.9kw
-
Brand Name:
-
LTMG
-
Place of Origin:
-
Shandong, China
-
Machine Weight:
-
890 kg
-
Marketing Type:
-
Hot Product 2023
-
Name:
-
Hot small multipurpose hydraulic skid steer loader hedge trimmer
-
Product type:
-
Skid Steer Loader
-
Keyword:
-
Skid Steer Loader attachment
-
Engine model:
-
XINCHAI
-
Dumping height:
-
2380mm
-
Operating weight:
-
300kg
-
Wheelbase:
-
600mm
-
Ground clearance:
-
180mm
-
Bucket width:
-
800mm
Products Specifications
|
model
|
LTS14
|
LTS20
|
LTS23
|
|
Type of engine
|
Single cylinder Diesel engine
|
Double-cylinder diesel engine
|
Single cylinder Diesel engine
|
|
Rated power
|
10.29Kg
|
15KW
|
16.9kw
|
|
Rated speed
|
3000rpm
|
3600rpm
|
3600rpm
|
|
Number of cylinders
|
1
|
2
|
2
|
|
Air inlet mode
|
nature
|
nature
|
nature
|
|
Displacement
|
0.667L
|
0.997L
|
0.479L
|
|
Emission standard
|
national standard
|
national standard
|
national standard
|
|
Rated load
|
260Kg
|
300Kg
|
300Kg
|
|
Max Load
|
300Kg
|
400Kg
|
400Kg
|
|
Max lifting Force
|
450kn
|
450kn
|
450kn
|
|
Bucket Capacity
|
0.13m3
|
0.15m3
|
0.15m³
|
|
Driving speed
|
0-6km/h
|
0-6km/h
|
0-6km/h
|
|
The sum of three items
|
9s
|
9s
|
9s
|
|
system pressure bar
|
17-21bar
|
17-21bar
|
17-21bar
|
|
Fuel tank capacity
|
5.5L
|
25L
|
25L
|
|
Operating weight
|
880Kg
|
980Kg
|
980Kg
|
|
Maximum operating height
|
2400mm
|
2450mm
|
2450mm
|
Advantages
Full grid heat dissipation plate.
The tracks are thicker than those of regular machines, causing the machine to move slowly.
The machine is equipped with an overflow pipe, allowing for the installation of all hydraulic attachments through a third hydraulic hose.
Folding saves labor, saves space.The pedal is equipped with anti-slip stickers to enhance driver safety during operation.
