Quick Details
-
Brand Name:
-
HiSource
-
Model Number:
-
AT13GW-A
-
Place of Origin:
-
Guangdong, China
-
Certification:
-
CE FCC RoHS ISO Etc
-
Warranty:
-
2 Years
-
Applications:
-
CCTV Security System
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at
-
Uplink Interfaces:
-
10/100/1000 Uplinks
-
Power Supply:
-
Input:AC100-240V 50/60Hz
-
Output:
-
DC52V
-
Installation:
-
track slot installation,wall mounted
-
Dimensions (W x D x H):
-
95mmx130mmx35mm(LxWxH)
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
10Gbps
-
Brand Name:
-
HiSource
-
Model Number:
-
AT13GW-A
-
Place of Origin:
-
Guangdong, China
-
Certification:
-
CE FCC RoHS ISO Etc
-
Warranty:
-
2 Years
-
Applications:
-
CCTV Security System
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at
-
Uplink Interfaces:
-
10/100/1000 Uplinks
-
Power Supply:
-
Input:AC100-240V 50/60Hz
-
Output:
-
DC52V
-
Installation:
-
track slot installation,wall mounted
-
Dimensions (W x D x H):
-
95mmx130mmx35mm(LxWxH)

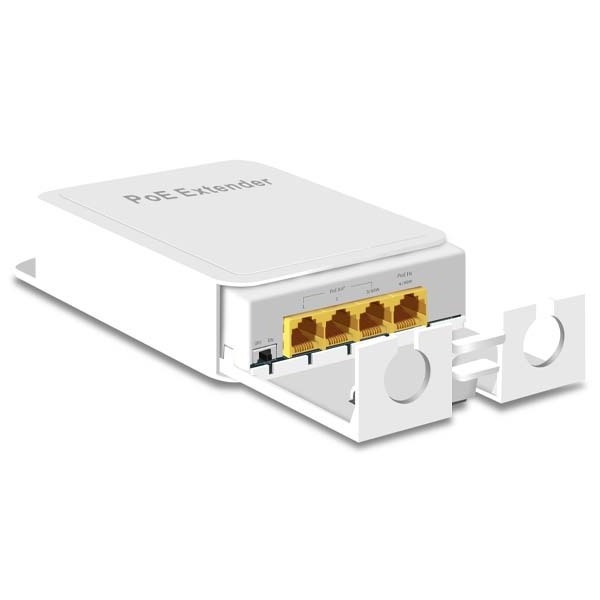

1000Mbps Waterproof outdoor 4 Port Gigabit POE Extender, Supporting AF/AT protocol with VLAN function Wall-mount Design
Hi-AT13G-FS is a 1000Mbps Ethernet PoE extender, which provides 1*1000Mbps IEEE802.3af/at(PoE) powered port input and 3*100Mbps IEEE802.3af/at(PoE)
powered ports output.
The whole power is 30W, and the average output power is 8W per port.
Specification :
|
Network Standard |
IEEE 802.3,IEEE 802.3u,IEEE 802.3x |
|
Port |
3*10/100/100Mbps RJ45 power supply port 1*10/100/1000Mbps RJ45 receiving port |
|
POE Power |
The whole power is 30W Output power of single port is 24W, average output power per port is 8W |
|
POE Connection |
POE input receiving wire core: 1/2+, 3/6-, 4/5+, 7/8- POE output power supply core: 1/2+, 3/6- 100M Transmission |
|
Performance |
Store and forward MAC address table 2k Switching capacity 10Gbps |
|
Forwarding Rate |
10BASE-T:14880PPS/port 100BASE-tx:148800pps/port 1000BASE-tx:1488000pps/port |
|
Port Function |
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode |
|
Environment |
Operating Temperature:-10℃--55℃ |
|
Power |
Input:DC44-57V,30W;Output:DC44-57V, 24W |
|
Weight &Size |
80g 95mm×130mm×35mm(L×W×H) |
Detailed Introduction:
