Quick Details
-
Color:
-
Metal
-
Material:
-
Aluminum
-
Pressure Ratio:
-
5:1
-
Pump Tube Length:
-
940mm/37''
-
Air Input Pressure:
-
3-8bar
-
Flow Rate:
-
4-18L/min
-
Pump Tube Diameter:
-
34mm
-
Air inlet connection:
-
1/4''
-
Oil outlet connection:
-
1/2''
-
Hose:
-
1/2'' *4m
-
Drum application:
-
400LB/55gal
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LAWING
-
Model Number:
-
OA940
-
Color:
-
Metal
-
Material:
-
Aluminum
-
Pressure Ratio:
-
5:1
-
Pump Tube Length:
-
940mm/37''
-
Air Input Pressure:
-
3-8bar
-
Flow Rate:
-
4-18L/min
-
Pump Tube Diameter:
-
34mm
-
Air inlet connection:
-
1/4''
-
Oil outlet connection:
-
1/2''
-
Hose:
-
1/2'' *4m
-
Drum application:
-
400LB/55gal
Product Description

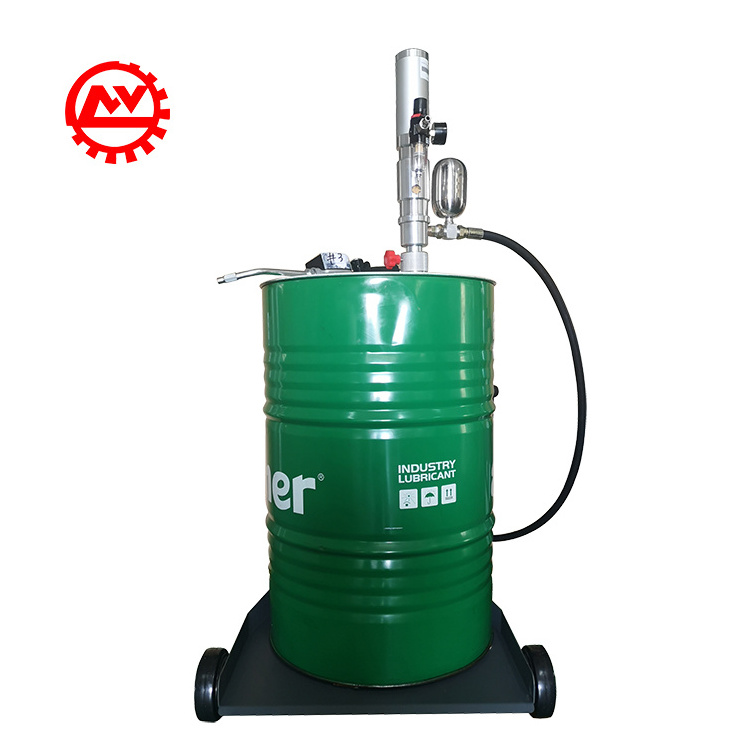

Air Operated Oil Pump Kit-OA940
Details Images
|
Oil Pump Technique Specification
|
|
|
|
|||
|
Pressure Ratio:
|
5:1
|
Air inlet:
|
1/4''
|
|||
|
Air Input Pressure:
|
3-8bar
|
Oil outlet:
|
1/2''
|
|||
|
Flow Rate:
|
4-18L/min
|
Drum application:
|
400LB/55gal
|
|||
|
Digital Oil Meter Gun-#3200
|
|
|
|
|
||||
|
Inlet
|
1/2'' NPT-1/2''F
|
|
|
|
||||
|
Outlet
|
1/2'' NPT-1/2''F
|
|
|
|
||||
|
Pressure Range
|
0.5 BAR-100BAR
|
|
|
|
||||
|
Oil Temperature
|
MAX 60℃
|
|
|
|
||||
|
Oil Viscosity
|
MAX SAE 240(8-5000mPas)
|
|
|
|
||||
|
Precise Unit
|
0.01L
|
|
|
|
||||
|
Net Weight
|
3.1LB
|
|
|
|
||||
Features
1.Mobile 5:1 oil pump and digital oil meter gun (Model #3200),easy to use & maintain
2. High flow rate to 18 L/min
3. Max air inlet pressure 3-8 BAR
4.Air consumption (per minute) 8 BAR
5.Best suited for a multiple fluid at a short to medium distance, typical fluids handled include: Lubricating oil such as Engine Oil, Gear Oil, Hydraulic Oil and Refrigerant
6.Pump can be barrel, cart or wall mounted.
7.Includes a set of Oil/Water Separator
8.1/2 in. x 4 m connection hose
What's Included
(1) Oil pump with air regulator and pulsation dampener
(1) Digital oil meter gun #3200-1
(1) 1/2 in. x 4 m connection hose
Model: OA940HG
Wall Mount Pneumatic Oil Pump Kit
Oil Pump Kit with High Pressure Hose Reel to supply long distance service.
Equipped Anti-leakage General Oil Gun.
