Quick Details
-
Type:
-
Air Source Heat Pump
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
2 in 1 multi-function water tank
-
Max Working Pressure:
-
6 bar
-
Warranty of core components:
-
2 years
-
Foaming material:
-
polyurethane resin
-
Heating source:
-
Solar/heating pump/ electric/gas
-
Coil material:
-
Stainless steel SUS304/316L
-
Outer tank:
-
Galvanized Steel/ Stainless steel
-
Inner tank:
-
Stainless steel SUS316L/duplex 2205
Quick Details
-
Warranty:
-
2 years
-
Application:
-
Outdoor, Hotel, Commercial, Household
-
Power Source:
-
Electric
-
Type:
-
Air Source Heat Pump
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
2 in 1 multi-function water tank
-
Max Working Pressure:
-
6 bar
-
Warranty of core components:
-
2 years
-
Foaming material:
-
polyurethane resin
-
Heating source:
-
Solar/heating pump/ electric/gas
-
Coil material:
-
Stainless steel SUS304/316L
-
Outer tank:
-
Galvanized Steel/ Stainless steel
-
Inner tank:
-
Stainless steel SUS316L/duplex 2205
Product Description

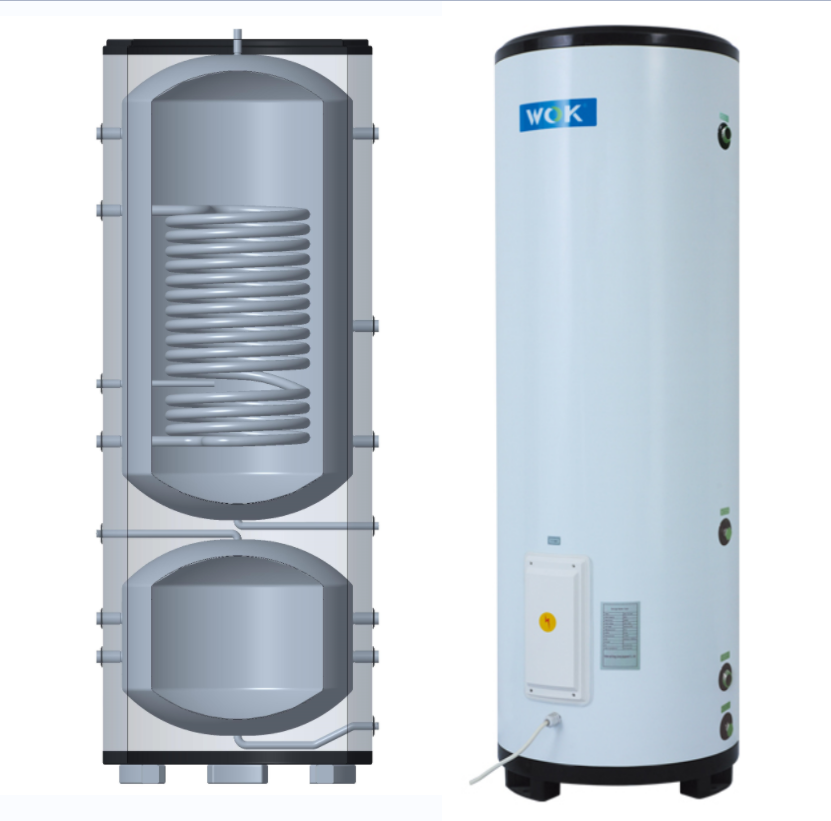

WOK 2 in 1 multi-function water tank for buffer and hot water for bath and heat pump floor house heating 200L 300L 500L
Product Parameters
| Product name | Buffer Hot water tank two in one | ||
| Model | 200=50L+150L | 300=70L+210L | 500=120L+330L |
| Electric heating | None(Can be customized) | ||
| Wave Coil Pipe | Φ25mm*15M | Φ25mm*20M(Can be customized other length) | |
| Coil port | 1"-M | ||
| Coil material | SUS304 | ||
| Inter port | Rp 3/4(Can be customized) | ||
| Outer port | Rp 3/4(Can be customized) | ||
| Drain | 1/2-M(Can be customized) | ||
| Mg Anode | Φ22MM*300MM | ||
| PT valve | Rp 3/4 | ||
| Rated pressure | 0.7Mpa | ||
| inner material | SUS304 | ||
| External material | White Paint steel(Can be customized) | ||
| Insulation | polyurethane foam | ||
| Insulation thickness | 50mm | ||
| Net weight | 42Kg | 59Kg | 83Kg |
| Net size | Φ520*1520mm | Φ560*1900mm | Φ700*1900mm |
| Package weight | 46Kg | 63Kg | 89Kg |
| Package size | 590*590*1610mm | 625*625*1940mm |
780*780*1980mm |
